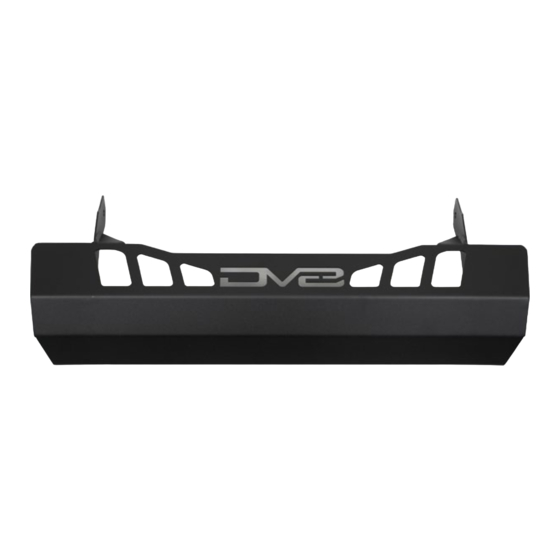

SWAY BAR DISCONNECT SKID PLATE
18+/20+ JL/JT WRANGLER/GLADIATOR
SPJL-02
TOOLS
REQUIRED
- 16mm Socket
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you
can install it by yourself however
additional help is recommended.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB SPJL-02
Summary of Contents for DVB SPJL-02
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM SWAY BAR DISCONNECT SKID PLATE 18+/20+ JL/JT WRANGLER/GLADIATOR SPJL-02 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 16mm Socket - Novice/Intermediate - 1 Hour - 1 (you) to 2 persons...
- Page 2 (4) M10 Flat Washer (4) M10 Spring Washer STEP 1 | Prior to installing the SPJL-02 skid plate, it is necessary to check for the presence of these support braces for the bumper mounts. If your aftermarket bumper did not...
- Page 3 INSTALLATION MANUAL STEP 2 | The top mounting hole for the skid plate will be threaded on all trim levels. Inspect the bottom two mounting holes. They may or may not have nutserts installed depending on trim level. If your vehicle has nutserts installed, congrats, this install is even more simple.
- Page 4 INSTALLATION MANUAL STEP 3 | If you are using provided nut plates--- position the skid plate on the vehicle and then place the nut plates inside the frame and line it up with the mounting holes. The flat section of the nut plate should be resting against the inside of the frame.
- Page 5 INSTALLATION MANUAL STEP 4 | Once all hardware is loosely threaded, secure it using a 16mm socket. STEP 5 | Double Check fitment and all hardware is secure. Congrats! You are finished with the install of the 18+/20+ JL/JT Wrangler/ Gladiator Sway Bar Disconnect Skid Plate.
