July, 2021
Stellar Cyber Model 3000A & 6000A
Installation & Quick Start Guide
The procedures for the 3000A and 6000A appliances are identical. To start using Stellar Cyber:
1. Mount the 3000A or 6000A appliance in a rack.
2. Connect power.
3. Access the appliance.
4. Change the management configuration.
5. Change the data port configuration.
6. Set the license.
7. Access the Stellar Cyber UI.
Mounting the 3000A or 6000A Appliance
To use the slide rails and ear brackets to mount the appliance in a standard 19" rack:
1. Attach the inner rails to the chassis.
2. Attach the ear brackets to the chassis.
3. Attach the slide rails to the rack.
4. Mount the chassis in the rack.

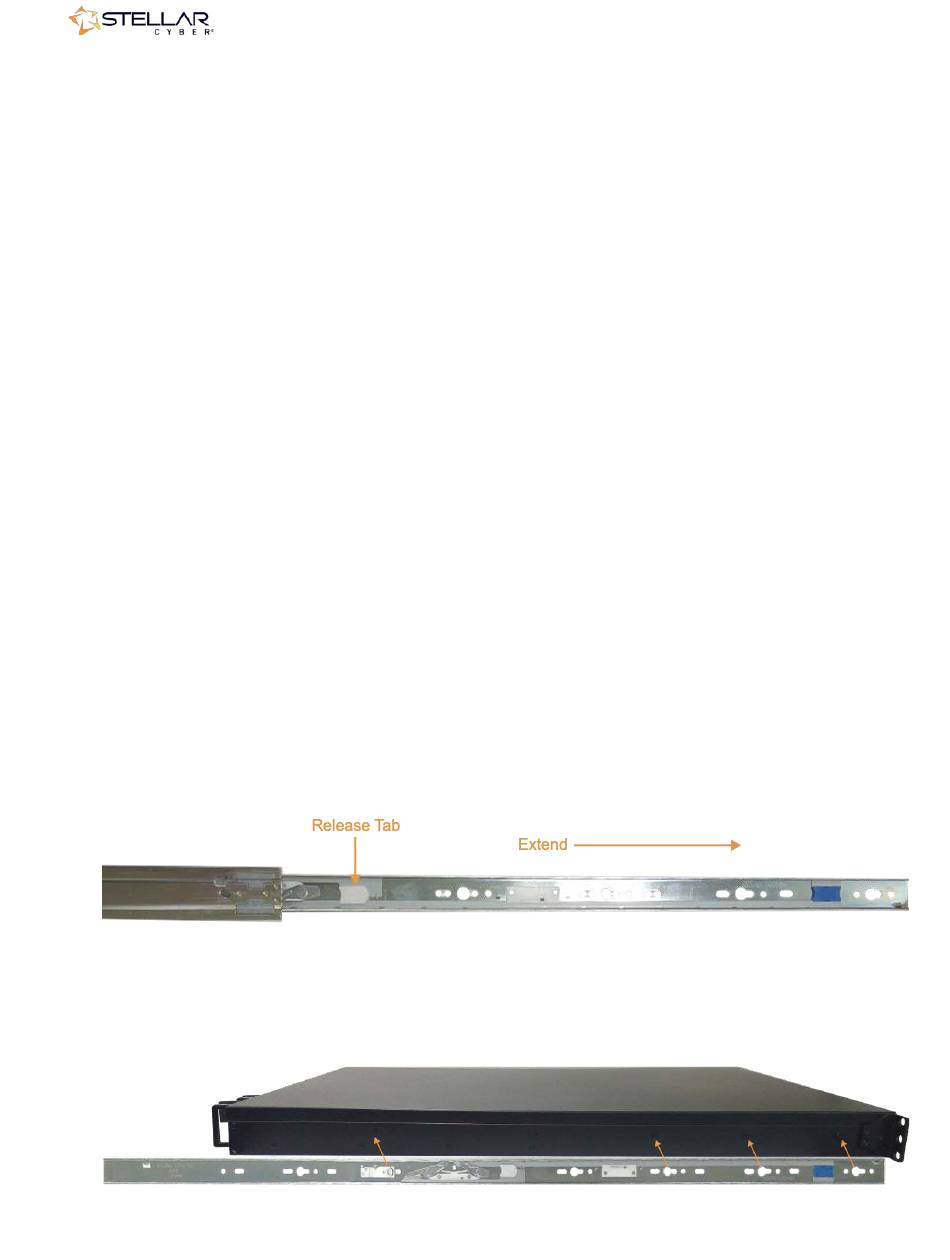

Attaching the Inner Rails to the Chassis
To attach the inner rails to the chassis:
1. Fully extend the inner channel of a slide rail.
2. Press the release tab on the bracket to release the inner rail.
3. Keeping the tab pressed, remove the inner rail.
4. Align the inner rail with the side of the chassis, with the inner rail extending behind the
chassis. The four buttons on the chassis align with four key holes on the rail.
Stellar Cyber, 2021. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Stellar Cyber 3000A
Summary of Contents for Stellar Cyber 3000A
- Page 1 July, 2021 Stellar Cyber Model 3000A & 6000A Installation & Quick Start Guide The procedures for the 3000A and 6000A appliances are identical. To start using Stellar Cyber: 1. Mount the 3000A or 6000A appliance in a rack. 2. Connect power.
- Page 2 Stellar Cyber Model 3000A & 6000A Installation & Quick Start 5. Slide the rail over the buttons and pull it backwards, to lock the rail onto the buttons. 6. Repeat these steps for the other slide rail, attaching it to the other side of the chassis.
- Page 3 Start Stellar Cyber Model 3000A & 6000A Installation & Quick 3. Align the bolts on the back of the slide rail with 2 holes on the back of the rack. 4. Slide the blots behind the holes and the slide rail snaps into place.
- Page 4 Stellar Cyber Model 3000A & 6000A Installation & Quick Start 2. Hold the chassis and gently guide the inner rails (attached to the chassis) into the inside of each extended inner channel. 3. When the inner rails are both inside the inner channels, push the chassis into the slide rail, holding the rail locks.
- Page 5 Start Stellar Cyber Model 3000A & 6000A Installation & Quick 2. Ground the cable to earth. 3. Connect the power cables to the PSUs. 4. Connect the power cables to power. 5. Turn on the PSUs. Accessing the 3000A or 6000A Appliance You can access the appliance through the console ports or using SSH.
- Page 6 Stellar Cyber Model 3000A & 6000A Installation & Quick Start ssh -l stellar 192.168.1.100 Verify Configuration Use three commands to verify the configuration. Confirm the management IP address from the console or an SSH session: show interface The output should show the default management and data port IP addresses (bold in this...
- Page 7 From the console or an SSH session: set otp <string> Accessing Stellar Cyber To log in to the Stellar Cyber UI, use Chrome or Firefox (the default User is admin, and the default Password is changeme): https://<new management IP address>...
