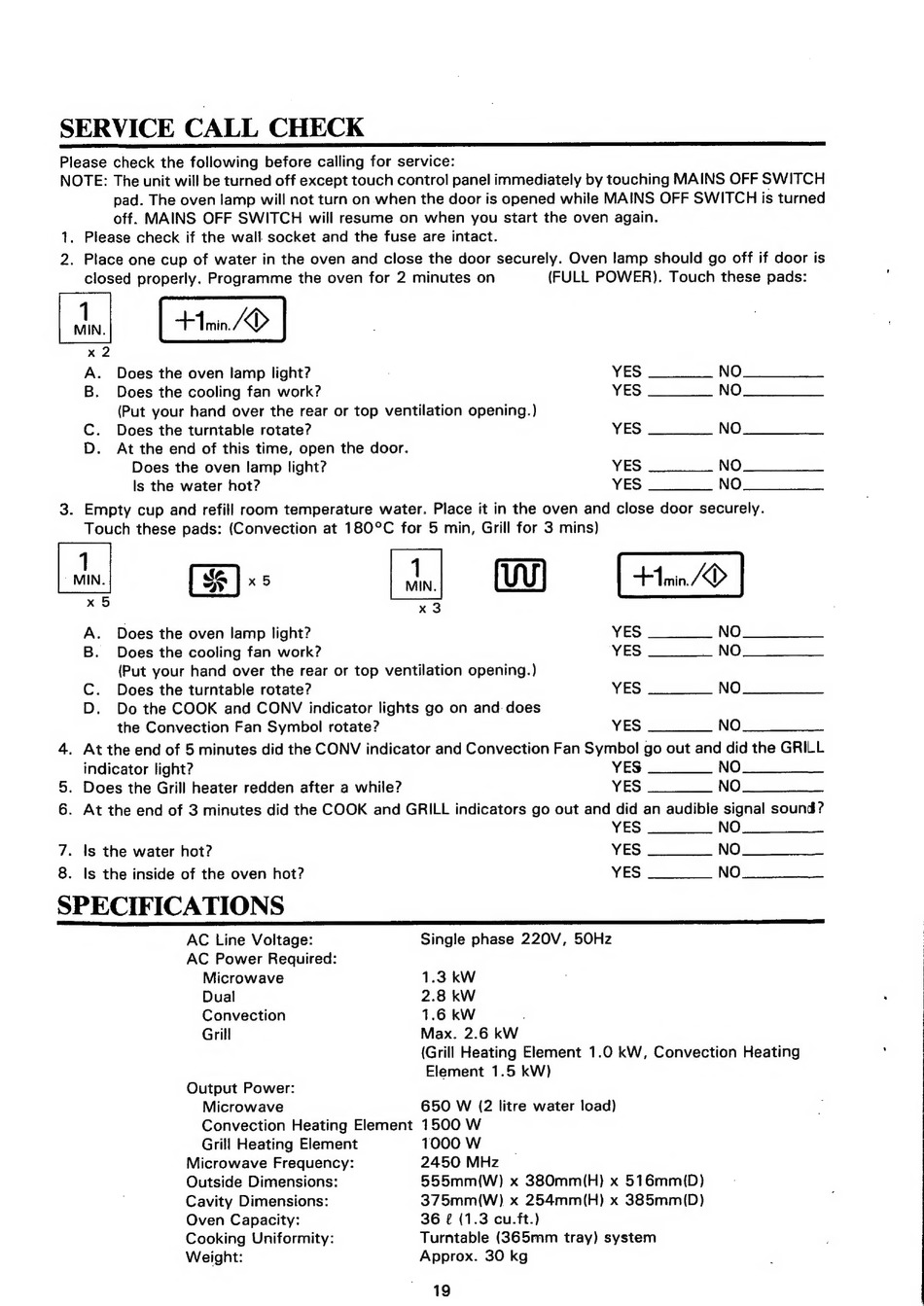

SERVICE CALL CHECK
Please check the following before calling for service:
NOTE: The unit will be turned off except touch control panel immediately by touching MAINS OFF SWITCH
pad. The oven lamp will not turn on when the door is opened while MAINS OFF SWITCH is turned
off. MAINS OFF SWITCH will resume on when you start the oven again.
1. Please check if the wall socket and the fuse are intact.
2. Place one cup of water in the oven and close the door securely. Oven lamp should go off if door is
closed properly. Programme the oven for 2 minutes on (FULL POWER). Touch these pads:
H1min. KD
x2
A. Does the oven lamp light? YES ____ NO
B. Does the cooling fan work? YES ___ CUNO
(Put your hand over the rear or top ventilation opening.)
C. Does the turntable rotate? YES ___s—« NO
D. At the end of this time, open the door.
Does the oven lamp light? YES ___ CUNO
Is the water hot? YES ___ CUNO
3. Empty cup and refill room temperature water. Place it in the oven and close door securely.
Touch these pads: (Convection at 180°C for 5 min, Grill for 3 mins)
x 5 x3
A. Does the oven lamp light? YES __ CC CNO
B. Does the cooling fan work? YES __ CUNO
(Put your hand over the rear or top ventilation opening.)
C. Does the turntable rotate? YES __._S CNN
D. Do the COOK and CONV indicator lights go on and: does
the Convection Fan Symbol rotate? YES ___ CU NOL
4. At the end of 5 minutes did the CONV indicator and Convection Fan Symbol go out and did the GRILL
indicator light? YES __.CNO
5. Does the Grill heater redden after a while? YES ___s«NNO
6. At the end of 3 minutes did the COOK and GRILL indicators go out and did an audible signal sound?
YES ___CNNO
7. Is the water hot? YES __ CUNO
8. Is the inside of the oven hot? YES ___—ds NO
SPECIFICATIONS
AC Line Voltage: Single phase 220V, 50Hz
AC Power Required:
Microwave 1.3 kW
Dual 2.8 kW
Convection 1.6 kw
Grill Max. 2.6 kW
(Grill Heating Element 1.0 kW, Convection Heating
Element 1.5 kW)
Output Power:
Microwave 650 W (2 litre water load)
Convection Heating Element 1500 W
Grill Heating Element 1000 W
Microwave Frequency: 2450 MHz
Outside Dimensions: 555mm(W) x 380mm(H) x 516mm(D)
Cavity Dimensions: 375mm(W) x 254mm(H) x 385mm(D)
Oven Capacity: 36 @ (1.3 cu.ft.)
Cooking Uniformity: Turntable (365mm tray) system
Weight: Approx. 30 kg
19
