Summary of Contents for Diamond RFE 12
- Page 1 05/2018 Mod: FSM-12ET/N Production code: RFE 12...

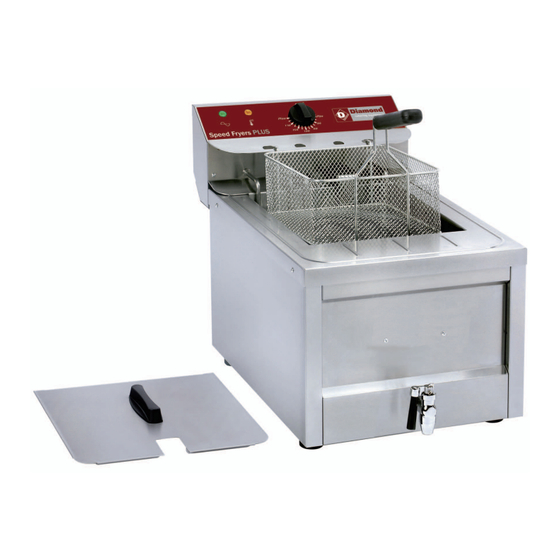

- Page 2 INSTRUCTIONS FOR USE AND INSTALLATION FRYER RFE 12 Made in France Octobre 2015...
- Page 3 RFE 12 Congratulations for the acquisition of this upmarket appliance made in France. You chose an appliance which alloys the best technical qualities with a big user-friendliness. We wish you the biggest contentment. I SECURITY INSTRUCTIONS Please respect these instructions scrupulously to avoid any risk of fire, electric shock, scald or other wounds and dam- age.
- Page 4 - Do not touch the hot surfaces of the appliance: always use handles and control knobs. - Do not use the appliance for other functions than deter- mined use. - Do not leave the cord of electrical feeding in the con- tact of hot surfaces.
-
Page 5: Contents Of Cardboard Packaging
- Never leave your fryer working without any watching. - Do not plunge foods made with an important humidity, you risk a boiling over; the same for bigger foods. - Use caution when removing the electrical module; the temperature sensors and the element may be very hot. - Use only the control unit supplied with the machine. - Page 6 It is equipped with a stainless steel container, with a cold zone insuring a longer using of the oil. Indeed, the scraps are going to lay down the bottom of the container, where the oil tem- perature is at the minimum, and do not carbonize. The draining is safe thanks to the tap placed on the front of the fryer.
- Page 7 b) First starting: Before the first use, wash the machine and all accessories with hot soapy water and dry them with a soft cloth. Connection of the device - Check that the tension and the frequency of the electricity network suit to the values indi- cated on the descriptive plate.
-
Page 8: Cleaning And Maintenance
- Pour oil into the container when heating elements are cold. The oil level must be be- tween the MIN and MAX marks. - Turn the thermostat control knob (n°3 on picture) to the desired position. - When the orange pilot light is off, your deep fryer is ready for cooking. - Fill the basket in and plunge it slowly into the oil. -
Page 9: Technical Specifications
VII TECHNICAL SPECIFICATIONS Model RFE 12 Power 9 kW Outside dimensions 400 x 610 x 445 mm Volume 12 L No element Volatge 380-415 V 3 N ~ Ampere 13 A/ Phase Weight 19 Kg Maximum charges 2.5 kg (Kg) - Page 10 The materials of the device are indeed reusable. By eliminating correctly the electric and elec- tronic wastes, the recycling and quite other shape of re-use of worn equipments, you participate in a significant way in the environmental protection. For any information about the collection of electric and electronic waste, please contact your distributor.
- Page 11 THERMOSTAT / THERMOSTAT COMMUTATEUR / COMMUTATOR NEUTRE / MICROSWITCH NEUTRAL PHASE PHASE PHASE TERRE / EARTH C02392 Câblage : FRITEUSE RFE 12 Schéma électrique Approuvé par : Date : Dessiné par : Date : Indice DT08 C.Gu 28/04/2014 28/04/2014 S.Grenon...
- Page 12 ENTRETOISE RB-CS-RTS SPACER B10014 ROBINET VIDANGE FRITEUSE DRAINING DEVICE TAP FRYER B10019 CONTRE ECROU 1/2 RFE 12/RFE 16 C/RFE 20 C LOCK NUT 1/2 RFE 12/RFE 16/RFE 20 C B10020 MANCHON DD 1/2 RFE 12 UNION DD 1/2 RFE 12 C01018...
- Page 13 51046 51046SE B08007 (x2) D02179 07192SE C01018 07188 B06009 B04110 B10019 B10020 07186 07189 07187 B10014 A13006 (x4) 07195SE FRITEUSE RFE 12 Vue éclatée Approuvé par : Date : Dessiné par : Date : Indice DT08 C.Gu 28/04/2014 28/04/2014 S.Grenon...
