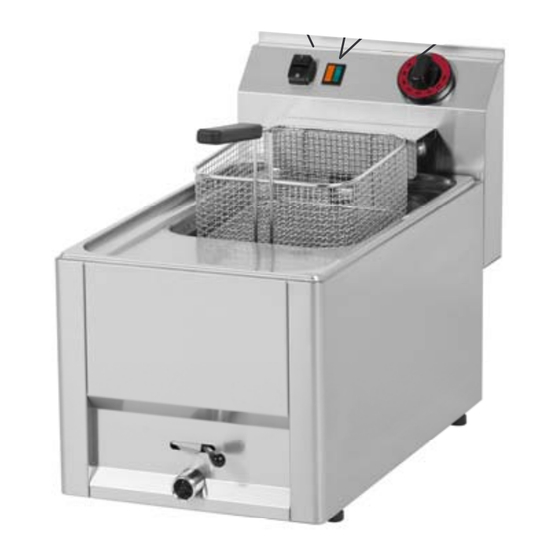

- Page 1 04/2013 Mod: ES6/F8T-N Production code: FE-30 EL...
-
Page 2: Table Of Contents
CONTENT Declaration of a standart conformity Technical data Packing + device check Important notice Instalation Placement of the device Chart Connection of the electric cable to electricity Maintenance Instructions for use Comments and recommendation Cleaning and maintenance Process in case of wrong function of the device... -
Page 3: Declaration Of A Standart Conformity
DECLARATION OF A STANDARDS CONFORMITY The producer confirms that the devices agree with CEE 90/396 standards, rule nr. 22/1997 sb. and with relevant goverment orders. Instalation must be done with respect to valid standards. Attention, the producer refuses any responsibility in case of direct or indirect damages which are caused due to wrong instalation, incorrect intervention or modification, insufficient maintenance, incorrect use and also possibly caused by other reasons presented by items in sale conditions. - Page 4 DIMENSIONS...
-
Page 5: Packing + Device Check
PACKING AND DEVICE CHECK The device leaves our stocks properly packed with appropriate symbols and labels. There are also appropriate instructions for use. In case the packing shows bad handling or damage, it must be reclaimed at transporter immediately by writing and signing of a damage protocol. Important notice •... -
Page 6: Placement Of The Device
Wrap up the device and check whether it was not damaged during transport. Settle the device on horizontal surface (max imbalance 2°). Settle the device under the fumehood to eliminate water steam and bad smell. The device can be instalated separately or in a set with devices of our production. -
Page 7: Connection Of The Electric Cable To Electricity
CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY Instalation of electric feeder - This feeder must be separetely protected by a safety fuse according to the specific electric stream which depends on the wattage of the instaled device. Check the wattage on the label at the back of the device. Connect the device directly to the electricity but you must put the switch between the device and electric net. -
Page 8: Comments And Recommendation
Comments and recommendation You must always check the level of oil, never use the device without oil. Use the device only under supervision. CLEANING AND MAINTENANCE ATTENTION! The device cannot be cleaned by direct or pressure water. Clean it daily. Daily maintenance keeps longer useful life and efficiency of the device. - Page 9 WIRING DIAGRAM FE – 30 EL 1 – Terminal board 2 – Main switch 3 – Safety thermostat 230 °C 4 – Microswitch 5 – Control light of warming up the basin Warming light 6 – Thermostat 7 – Control light 8 –...
- Page 10 WIRING DIAGRAM FE – 60 EL 1 – Terminal board 2 – Main switch 3 – Safety thermostat 230 °C 4 – Microswitch 5 – Control light of warming up the basin Warming light 6 – Thermostat 7 – Control light 8 –...
- Page 11 WIRING DIAGRAM FE – 30 ELT 1 – Terminal board 6 – Thermostat 2 – Microswitch 7 – Orange warning light 3 – Main switch 8 – Relay 4 – Safety thermostat 230 °C 9 – Heating element 5 – Green warning light 10 –...
- Page 12 WIRING DIAGRAM FE – 60 ELT 1 – Terminal board 6 – Thermostat 2 – Microswitch 7 – Orange warning light 3 – Main switch 8 – Relay 4 – Safety thermostat 230 °C 9 – Heating element 5 – Green warning light 10 –...
