Summary of Contents for Varytec LED Theater Spot 100 3000K

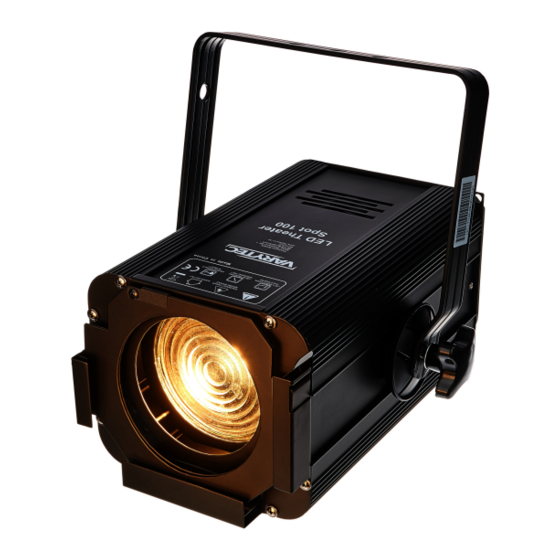

- Page 1 LED Theater Spot 100 3000K LED Spotlight...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 15.11.2023, ID: 414220, 427226 (V6)
-
Page 3: Table Of Contents
7.3 Menu overview..........................23 7.4 Functions in 1-channel DMX mode................... 24 7.5 Functions in 2-channel DMX mode................... 24 Technical specifications........................25 Plug and connection assignments....................27 Troubleshooting............................28 Cleaning............................... 30 Protecting the environment......................31 LED Theater Spot 100 3000K LED Spotlight... - Page 4 LED Theater Spot 100 3000K LED Spotlight...
-
Page 5: General Information
1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. LED Theater Spot 100 3000K LED Spotlight... - Page 6 Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. LED Theater Spot 100 3000K LED Spotlight...
- Page 7 General information Warning signs Type of danger Warning – danger zone. LED Theater Spot 100 3000K LED Spotlight...
-
Page 8: Safety Instructions
Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. LED Theater Spot 100 3000K LED Spotlight... - Page 9 Always secure the barn door with a safety cable on the spotlight. The safety cable must run outside the barn door to not interfere with the light emission. LED Theater Spot 100 3000K LED Spotlight...
- Page 10 Only operate the device from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device will not be used for a longer period. LED Theater Spot 100 3000K LED Spotlight...
- Page 11 Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. LED Theater Spot 100 3000K LED Spotlight...
-
Page 12: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. LED Theater Spot 100 3000K LED Spotlight... -
Page 13: Installation
Always secure the barn door with a safety cable on the spotlight. The safety cable must run outside the barn door to not interfere with the light emission. LED Theater Spot 100 3000K LED Spotlight... - Page 14 If the device is mounted on an unsuitable stand, there is a risk that the stand will fall over and cause damage. Only use stands whose maximum bearing capacity is at least as high as the weight of the device. Always ensure that the stand is stable. LED Theater Spot 100 3000K LED Spotlight...
- Page 15 Wartungsarbeiten daran durchführen. Dabei muss der Bereich unterhalb des Geräts abgesperrt sein. Das Sicherheitsfangseil muss an der Fangseilöse befestigt werden. Please note that this device must not be connected to a dimmer. LED Theater Spot 100 3000K LED Spotlight...
-
Page 16: Starting Up
Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Theater Spot 100 3000K LED Spotlight... -
Page 17: Connections And Controls
Connections and controls Connections and controls ö POWER IN Menu Up Down Ente r Fuse & POWER OUT LED Theater Spot 100 3000K LED Spotlight... - Page 18 4 [DMX IN] | DMX input 5 [DMX OUT] | DMX output 6 Focus control. Adjusts the beam angle in a range from 15° to 45°. 7 Safety cable eyelet 8 Fuse holder LED Theater Spot 100 3000K LED Spotlight...
- Page 19 Connections and controls 9 Mounting bracket 10 Front side with barn door attachment. 11 Locking screw for the mounting bracket. LED Theater Spot 100 3000K LED Spotlight...
-
Page 20: Operating
[Enter] to access the respective submenu or to confirm a new value. To return to the previous menu level without changes, press [Menu]. If you do not press any button for 60 seconds, the display will automatically turn off. Any changes you made are not applied. LED Theater Spot 100 3000K LED Spotlight... - Page 21 [Enter]. Use [Up] and [Down] to adjust the strobe frequency in a range from ‘F000’ … ‘F255’ (off … maximum speed). Confirm the selection with [Enter]. Use [Menu] to return to the parent menu. To return to the parent menu without changes, press [Menu] without prior confirmation. LED Theater Spot 100 3000K LED Spotlight...
- Page 22 Use [Up] or [Down] to select one of two DMX modes ‘CH01’ (1-channel mode) or ‘CH02’ (2-channel mode). Confirm the selection with [Enter]. Use [Menu] to return to the parent menu. To return to the parent menu without changes, press [Menu] without prior confirmation. LED Theater Spot 100 3000K LED Spotlight...
-
Page 23: Menu Overview
Operating 7.3 Menu overview Addr Stat tEmP U000 CH01 U255 CH02 F000 F255 LED Theater Spot 100 3000K LED Spotlight... -
Page 24: Functions In 1-Channel Dmx Mode
0 … 255 Master dimmer (0% to 100%) 7.5 Functions in 2-channel DMX mode Channel Value Function 0 … 255 White light dimmer (0% to 100%) 0 … 255 Strobe effect (0% to 100%) LED Theater Spot 100 3000K LED Spotlight... -
Page 25: Technical Specifications
(Power Twist) DMX control XLR chassis socket, 3-pin Power consumption max. 115 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 3 A, 250 V, fast-acting LED Theater Spot 100 3000K LED Spotlight... - Page 26 160 mm × 185 mm × 260 mm Weight 5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-con‐ densing) Further information Optic Fresnel Power of the individual LEDs 100 W Fanless LED Theater Spot 100 3000K LED Spotlight...
-
Page 27: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Theater Spot 100 3000K LED Spotlight... -
Page 28: Troubleshooting
Use special DMX cables for the wiring instead of normal microphone cables. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Theater Spot 100 3000K LED Spotlight... - Page 29 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Theater Spot 100 3000K LED Spotlight...
-
Page 30: Cleaning
The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a reg‐ ular basis. Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. LED Theater Spot 100 3000K LED Spotlight... -
Page 31: Protecting The Environment
Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the instructions and markings on the packaging. Observe the disposal note regarding documentation in France. LED Theater Spot 100 3000K LED Spotlight... - Page 32 You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it. LED Theater Spot 100 3000K LED Spotlight...
- Page 33 Notes LED Theater Spot 100 3000K LED Spotlight...
- Page 34 Notes LED Theater Spot 100 3000K LED Spotlight...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
