NRS Healthcare ATLAS 3 User Instructions

P78684
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1. INTENDED USE
The Atlas 3 Transfer Disc is designed to provide
assistance when rising from and lowering into a seated
position, or seat to seat transfers. It can also be used to
encourage mobility in rehabilitation.
The user must be able to support their own weight and
maintain balance. They must also be able to grasp the
handles and understand basic instructions.
2. SAFETY
Warning: The maximum user weight must not be more
than 190Kg (30st).
Do not use the Atlas 3 Transfer Disc as a means of
transporting users.
Do not leave the user unattended when using the
product.
The carer must act as a counterbalance when the
user is rising and lowering. Consideration should be
given to whether the carer's body weight is suffi cient to
counterbalance the user's.
3. UNPACKING
Note: Take care when unpacking, the contents are
heavy.
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1 Contents:
1 x Base Section
1 x Handle Section
4. ASSEMBLY

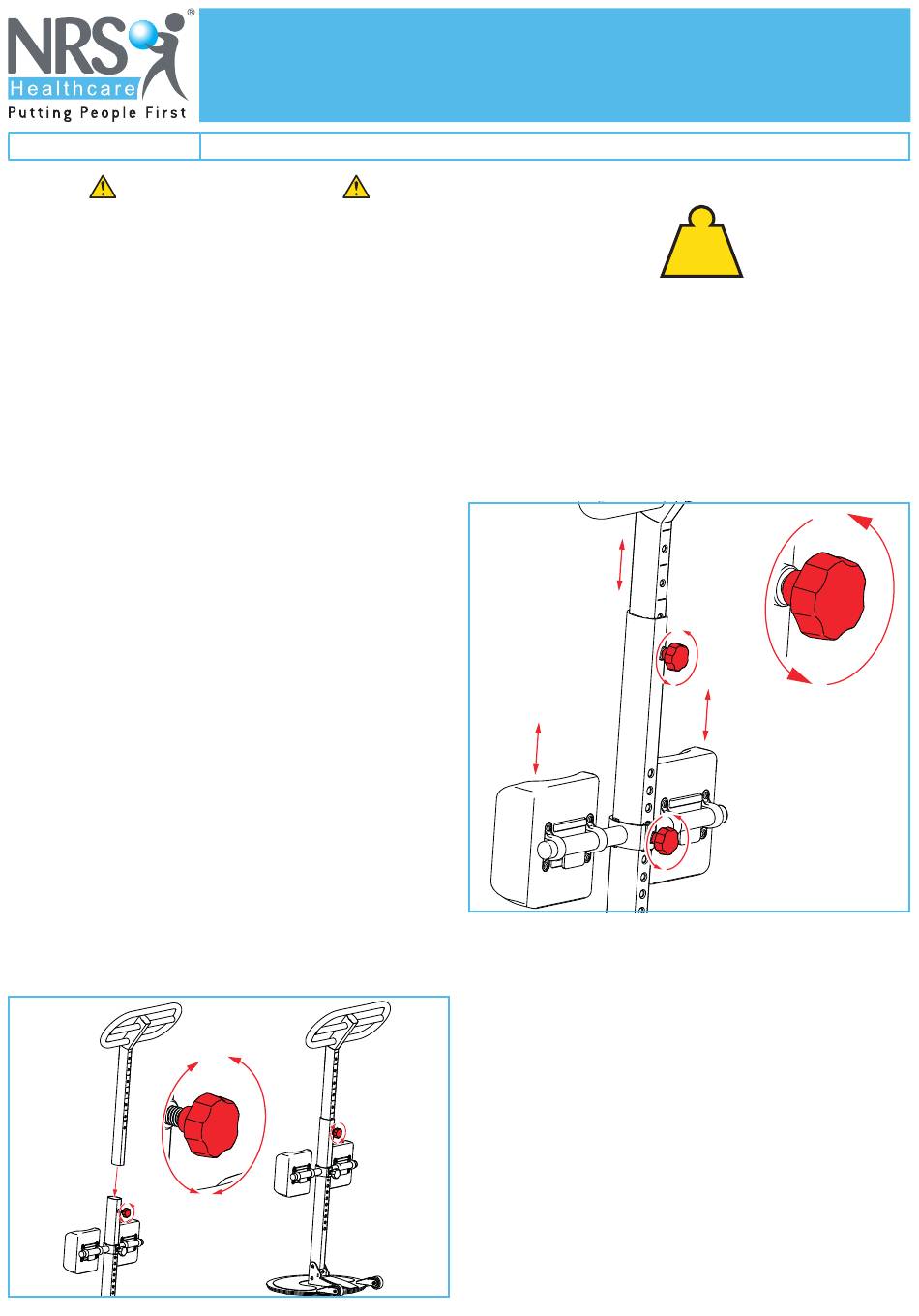

1
ATLAS 3 TRANSFER DISC
Atlas 3 Transfer Disc
2
USER INSTRUCTIONS
1. Loosen the upper hand-wheel by turning anti-
clockwise, then slot the handle into the base
assembly.
2. Use the handle markings to align the adjustment
holes, then re-tighten the hand-wheel fully by
turning clock-wise.
5. ADJUSTING THE TRANSFER DISC
Note: The handle and knee pad height must be adjusted
correctly for the user.
5.1 Adjust the Handle Height
Note: The handle height must be set so that the user can
comfortably reach the lower horizontal handle bar from a
sitting position.
1. Loosen the handle hand-wheel by turning anti-
clockwise.
2. Adjust the handle to the correct height for the user,
using the handle markings to align the adjustment
holes, then re-tighten the hand-wheel.
5.2 Adjust the Knee Pads Height
Note: The top of the knee pad should sit just below the
knee cap of the user.
1. Loosen the knee pad hand-wheel by turning anti-
clockwise.
2. Adjust the knee pad to the correct height for the
user, align the holes and re-tighten the hand-wheel.
1
Maximum User Weight
30st
190kg
