ELECTRICAL CONNECTION

Electrical connection must be made before connecting the appliance to the electricity supply.
The power cord is not included in the package - remember to prepare your own power cord.
Installation must be carried out by qualified personnel who know the current safety and installation regulations. Specifically, installation must be
carried out in compliance with the regulations of the local electricity supply company.
Make sure the voltage specified on the data plate located on the bottom of the appliance is the same as that of the home.
Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only.

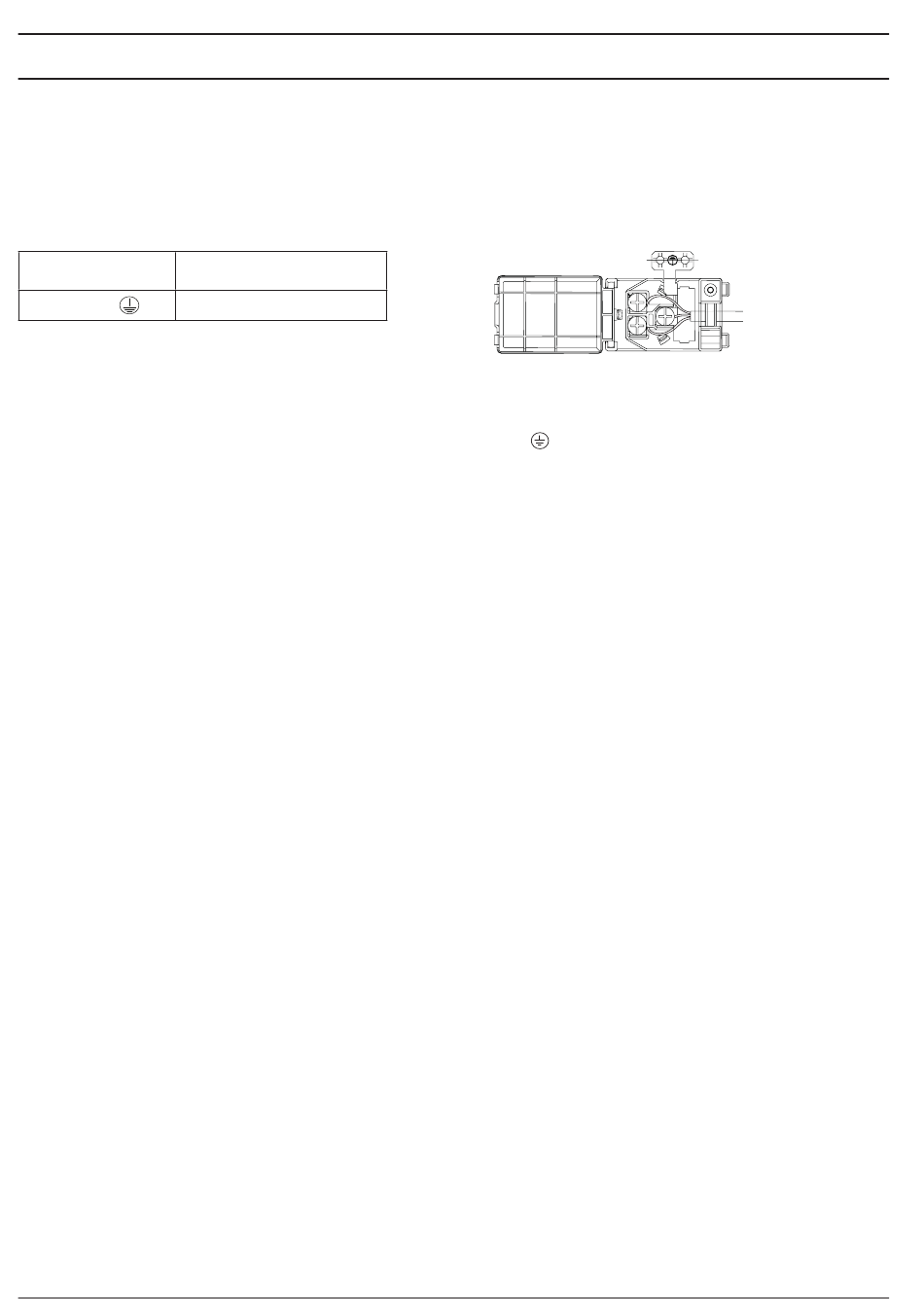

CONNECTION TO THE TERMINAL BLOCK
For the electrical connection, use an H05RR-F or H05V2V2-F cable as specified in the table below.
SUPPLY VOLTAGE
3 x 1,5 mm
220-240V ~ +
The appliance must be connected to the electricity supply by means of an all-pole disconnect switch with minimum contact gap of 3 mm.
ATTENTION: the power supply cable must be long enough to allow the cooktop to be removed from the worktop and must be positioned so as to
avoid damage or overheating caused by contact with the base.
NOTE: the yellow/green earth wire must be connected to the terminal with the symbol
• Remove approx. 70 mm of the cable sheath from the power supply cable.
• Strip approx. 10 mm of sheath from the wires.
• Open the terminal board by pushing the side clips in with the help of a tool.
• Insert the cable in the cable clamp and connect the wires to the terminal board.
• Close the cover of the terminal board.
• After the electrical connection, fit the hob from the top and hook it to the fixing springs.
CONDUCTORS
AMOUNT x SIZE
2
and must be longer than the other wires.
