Whirlpool AKT 300 Product Description Sheet

AKT 300
GB
LIGHTING THE BURNERS
• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting
• Press the knob against the control panel to ignite the burner.
PRATICAL ADVICE FOR USING THE BURNERS
For better burner performance, please stick to the following
rules:
- Use pots and pans that fit the burners (see table on the
right).
- Only use flat-bottomed pots and pans.
- Use the correct amount of water for cooking foods and
keep the pot covered.
5019 319 62035/A

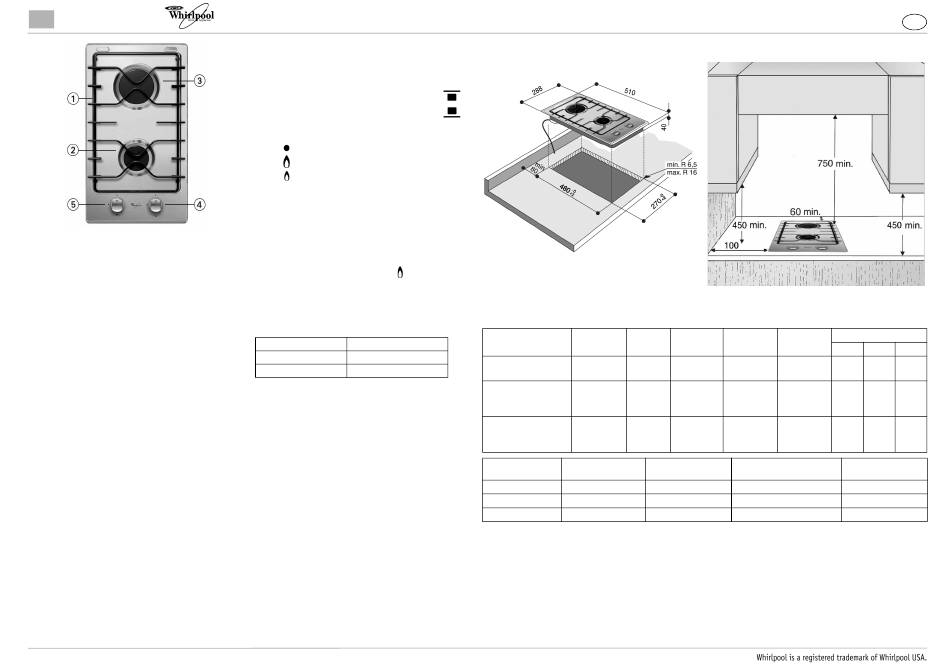

PRODUCT DESCRIPTION SHEET
Removable pan grid
1.
Semi-Rapid Burner
2.
3. Rapid Burner
4. Semi-Rapid Burner control knob
Rapid Burner control knob
5.
SYMBOLS
Tap closed
Maximum flame
Minimum flame
.
Burner Pot Ø
rapid from 24 to 26 cm
semi-rapid
from 16 to 22 cm
To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.
DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)
NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct
distance.
INJECTOR TABLE
Type of gas used Type of burner Injector
marking
NATURAL GAS
rapid 128
semi-rapid 95
(Methane) G20
LIQUID
rapid 87
PETROLEUM GAS
semi-rapid 67
(Butane) G30
LIQUID
rapid 87
PETROLEUM GAS
semi-rapid 67
(Propane) G31
Type of gas Configuration model Rated thermal
used flow rate kW
G20 20 mbar 2 burners 4.65
G30 28-30 mbar 2 burners 4.65
G31 37 mbar 2 burners 4.65
ELECTRIC SUPPLY: 230 V - 50 Hz
CATEGORY II2E+3+
Rated thermal Rated Reduced heat Gas pressure (mbar)
flow rate kW consumption capacity kW
min.
3.00 286 l/h 0.60
17
1.65 157 l/h 0.35
3.00 218 g/h 0.60
20
1.65 120 g/h 0.35
3.00 214 g/h 0.60
25
1.65 118 g/h 0.35
Total rated Air necessary (m
consumption combustion of 1 m
443 l/h 9.52
338 g/h 30.94
332 g/h 23.8
FR
rat. max.
20 25
28-30 35
37 45
3
) for the
3
of gas
