AlphaESS SMILE-T10-HV-INV Quick Installation Manual

64100144
QUICK INSTALLATION GUIDE
SMILE-T10-HV-INV/SMILE-T6-HV-INV
01

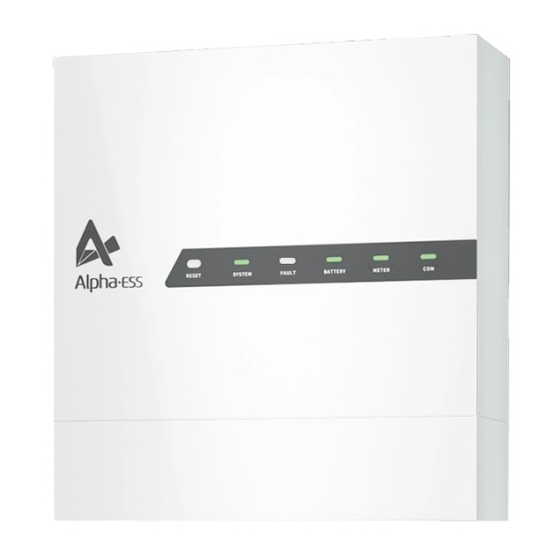

Product Overview

(1). Wi-Fi Port
(2). Grounding
(1)
(3). INV PV Switch
(4). INV PV Connectors
(5). Battery Power Connectors
(6). Battery Breaker
(7). Backup Connector
(8). Communication Ports
(9). Grid Connector
(10). Inverter LED Display
D
Dimension(W×H×D):580×475×230mm
02

Packing List

(X1) (X1) (X2)
(X3) (X1) (X11)
(X2) M5*12(X2) (X1)
03

Installation Tools

T20×150mm 1.2×75mm
T20 Screwdriver Flat-Head Screwdriver
Crimping Plier Tape Measure
5.1 Mount the PE cable
T20
2.5Nm
5.2 Connect to the Backup / Grid Power Cable
1
PE
N
L3
L2
L1
PE
N
L3
L2
L1
4 to 6 mm²
2
1.2 × 75mm
2Nm
NOTE:
For the installation sites in Australia and New Zealand, the neutral
cable of grid side should be connected in parallel to the backup side,
or otherwise the backup output will fail to operate.
H
W
(2) (3) (4) (5) (6) (7) (8) (9) (2)
(X1) (X1) (X3)
(X1) (X1) (X1)
NA
(X4) (X1)
Wire Stripper Network Wire Clamp
V01
04

Mount the Inverter

1
2
(10)
SW10
05

Electrical Connections

RISK OF ELECTRIC SHOCK
Before doing electrical connection,please ensure the PV switch & all AC and BAT circuit breakers
are switched OFF and cannot be reactivated.
DANGER
You must protect each inverter with an individual grid/backup circuit breaker in order to ensure
that the inverter can be disconnected safely.
Description Breaker Specification
Grid Side
Backup Side
NOTE:
Please see System Wiring Diagram for detailed system wiring.
01 02
5.3 Connecting the BAT Power Cable
5.4 Connecting the PV Power Cable
1
7mm
7mm
4-6mm²
4
06

Communication Connection

6.1 Wi-Fi Connection

1
03 04
1
2
3
32A
20A
BAT Power Cables Comes with Battery
2
Click
2.6-2.9N·m
Click
5
Click
Click
2 3
T20
2Nm
(X6)
3
4
T20
2.5Nm
3
Check the polarities of the PV strings
Ensure the open-circuit voltage of the PV
arrays is less than 1000 V.
