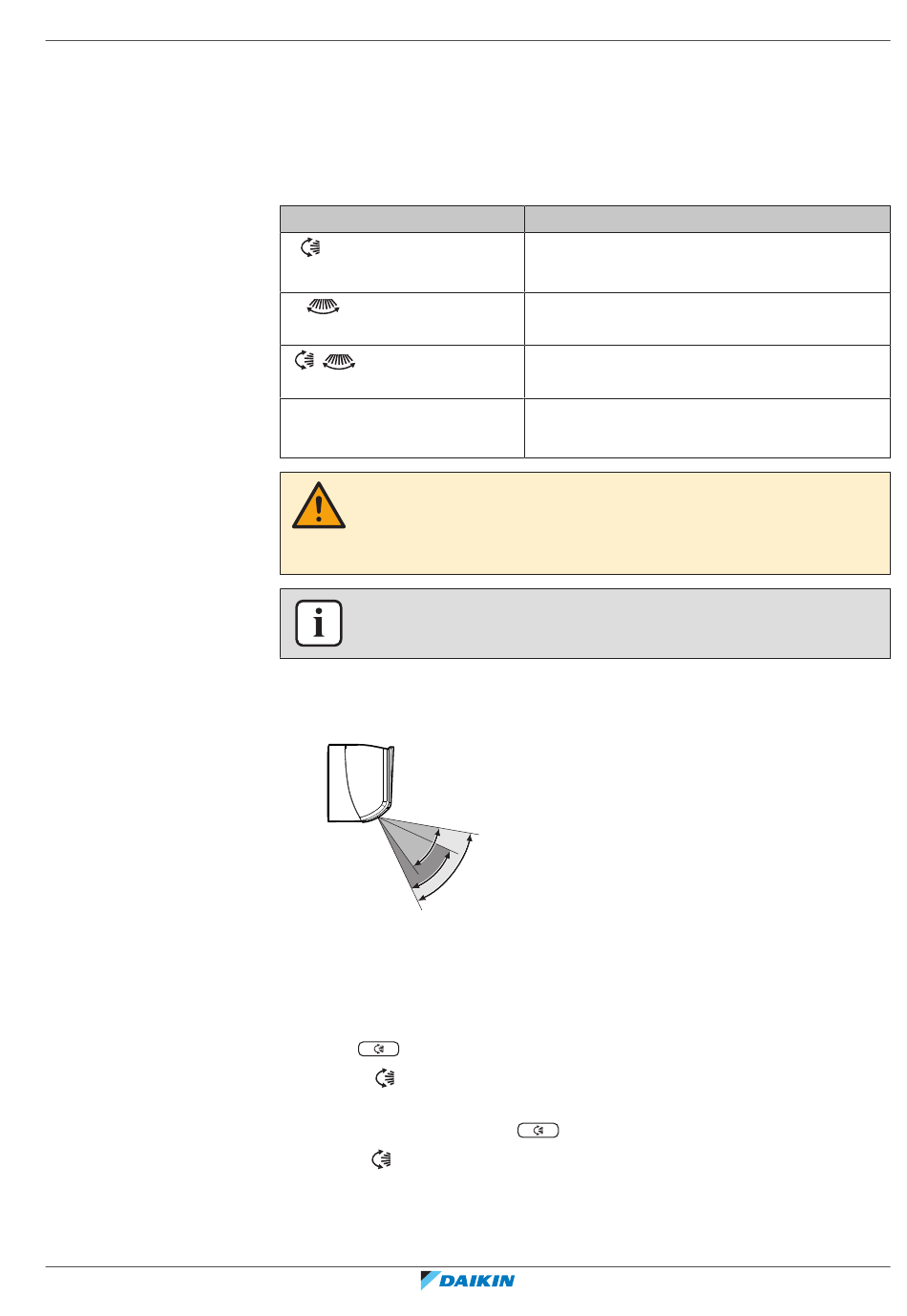

6.5 Airflow direction

6.5.1 To adjust vertical airflow direction

CTXM-A, FTXM-A
Daikin room air conditioner
4P518786-12K – 2023.06
When. Adjust the airflow direction as desired.
What. The system directs the airflow differently, depending on the user selection
(swinging or fixed position). It does so by moving horizontal blades (flaps) or
vertical blades (louvers).
Setting
Vertical automatic swing
Horizontal automatic
swing
+ 3-D airflow direction
[—]
CAUTION
ALWAYS use the wireless remote control or other user interface (if applicable) to
adjust the position of the flaps and louvers. When the flaps and louvers are swinging
and you move them forcibly by hand, the mechanism will break.
INFORMATION
If the Comfort airflow is selected, vertical automatic swing will be canceled.
The movable range of the flap varies according to the operation mode. The flap will
stop at the upper position when the airflow rate is changed to low during the up
and down swing setting.
a
b c
a Flap range in cooling or drying operation
b Flap range in heating operation
c Flap range in fan only operation
1 Press .
Result: appears on the LCD. The flaps (horizontal blades) will begin to
swing.
2 To use fixed position, press
Result: disappears from the LCD. The flaps will stop moving.
Airflow direction
Moves up and down.
Moves from side to side.
Moves alternately up and down and from side
to side
Stays in a fixed position.
when the flaps reach the desired position.
