Summary of Contents for Prima PRGH218

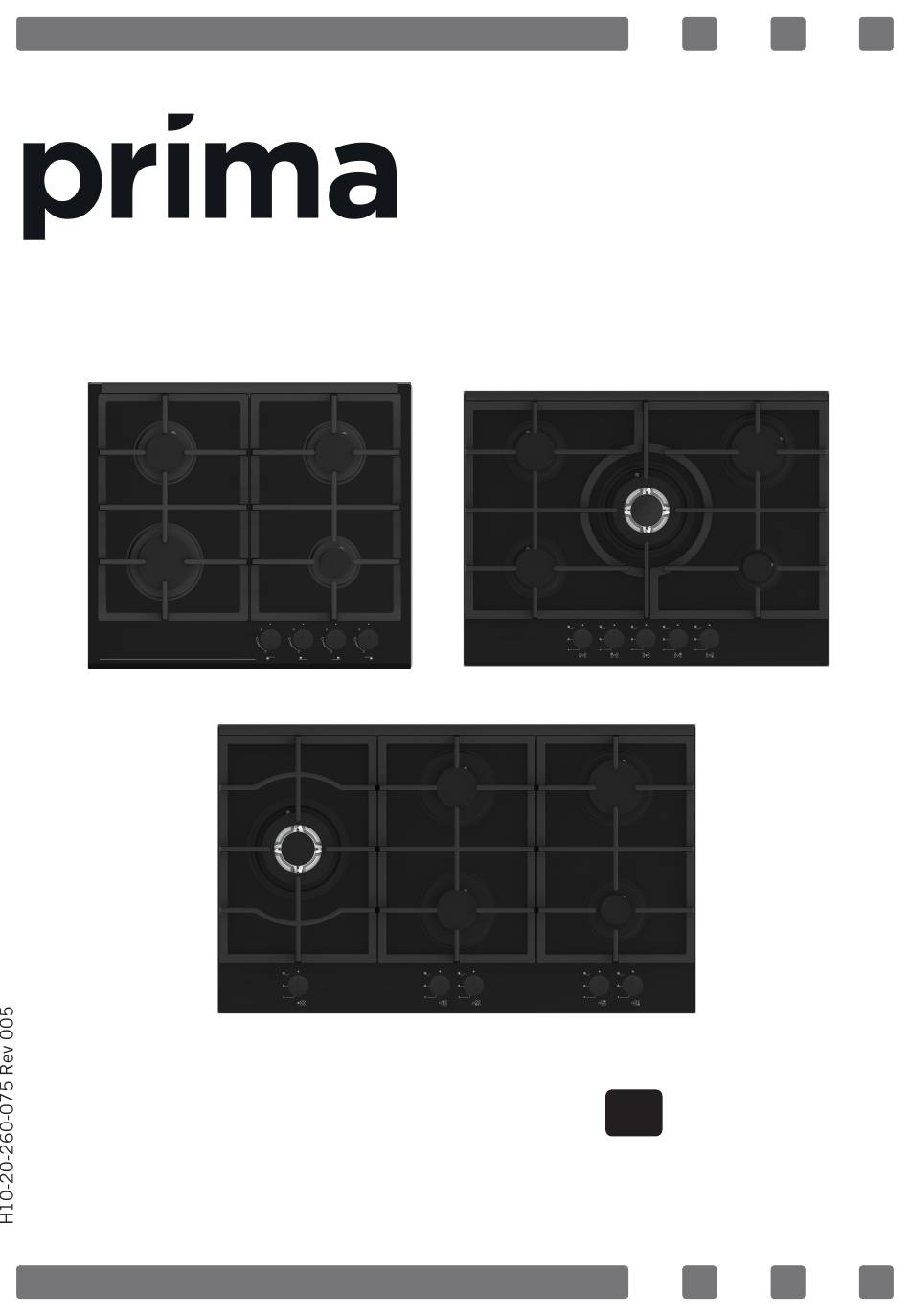

- Page 1 BUILT-IN Gas On Glass Hob PRGH218 PRGH220 PRGH222 USER MANUAL...
- Page 2 You’ll soon be enjoying your new Built in Gas Hob. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. “THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS...
-
Page 3: Table Of Contents
Contens Important warnings Electrical connection Gas connection Introduction of the appliance Technical features Installation of hob Counter cutting sizes Control panel Usage of your hob Maintenance and cleaning Troubleshooting Handling rules Environmentally-friendly disposal Package information... -
Page 4: Important Warnings
IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner. - Page 5 12. Children under 8 years of age should be kept away, if they cannot be monitored continuously. 13. Touching the heating elements should be avoided. 14. CAUTION: Cooking process shall be supervised. Cooking process shall always be supervised. 15. The appliance is not suitable for use with an external timer or a separate remote control system.
- Page 6 23. Do not use the product in states like medicated and/or under influence of alcohol which may affect your ability of judgement. 24. After each use, check if the unit is turned off. 25. Be careful when using alcohol in your foods. Alcohol will evaporate at high temperatures and may catch fire to cause a fire if it comes in contact with hot surfaces.
- Page 7 33. Cable fixing point shall be protected. 34. CAUTION: If the glass of the stove is broken, turn off any heating element immediately and disconnect the appliance from power source, do not touch the surface of the appliance and do not use the appliance. 35.
- Page 8 Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.
- Page 9 11. Make sure there is no liquid or humidity in the outlet where the product plug is installed. 12. An omnipolar switch capable to disconnect power supply is required for installation. Disconnection from power supply shall be provided with a switch or an integrated fuse installed on fixed power supply according to building code.
- Page 10 Gas Safety 1. This appliance is not connected to burning products evacuation apparatus. This appliance must be connected and installed according to the installation regulations in force. Conditions regarding ventilation must be considered. 2. When a gas cooking appliance is used; humidity, heat and burning products are generated in the room.
- Page 11 7. All kinds of operations to be performed on gas installation must be performed by authorized and competent people. 8. This appliance is adjusted for natural gas (NG). If you have to use your product with a different gas type, you have to apply to authorized service for the conversion.
- Page 12 What To Do When Gas Odour Is Detected 1. Do not use naked flame, and do not smoke. 2. Do not operate any electrical switch. (For example: lamp switch or doorbell) 3. Do not use telephone or mobile phone. 4. Open the doors and windows. 5.
-
Page 13: Electrical Connection
Electrical Connection 1. Setting conditions of this appliance is indicated in tag or data plate. 2. Your appliance should be plugged in a fuse appropriate for electric power. If necessary, it is recommended that installation is done by authorized service. 3. -
Page 14: Gas Connection
Gas Connection WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion. 1. Connect your appliance to gas cock from the shortest way and in a manner to prevent any leakage. For safety, the hose used should be maximum 125 cm and minimum 40 cm. - Page 15 WARNING: Gas hose and electric connection of the appliance should not pass next to hot areas such as back of the appliance. Gas hose should be connected by making wide angle turns against breaking possibility. Movement of appliance whose gas connection is made may cause gas leakage. Correct Incorrect Correct...
- Page 16 5. After that, detach control switches of the hob. Make setting by turning the screw in the middle of gas cocks with a small screwdriver in the manner shown in the following picture. To adjust flow rate screw, use a screwdriver having suitable dimension. For LPG, turn the screw clockwise. For natural gas, turn the screw one time counter clockwise.
-
Page 17: Introduction Of The Appliance
INTRODUCTION OF THE APPLIANCE 1. Burner positions 2. Glass surface 3. Control knobs 4. Small burner 5. Medium burner 6. Large burner 7. Wok Burner 8. Cast Iron Grill... -
Page 18: Technical Features
Technical Features You can operate your gas hob by turning the knobs on control panel you want to use to the level of heat/flame you desire. Hob powers as per levels are given in the following table. Injector, gas flow and power table G20,20 mbar G20,25 mbar G20,13 mbar... - Page 19 G30,28-30 mbar G30,50 mbar G30,37 mbar G30,27.5 mbar Burner G31,37 mbar Specifications Injector 0,96 0,76 0,96 0,96 Gas flow burner (3,5) Power 3,50 3,50 3,50 3,50 Injector 0,82 0,73 0,78 Gas flow burner (2,5) Power 2,50 2,50 2,50 Injector 1,07 0,92 1,00 Gas flow...
-
Page 20: Installation Of Hob
INSTALLATION OF HOB Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons. - Page 21 Installation 1. Detach the burners, burner hoods and grills from the product. 2. Turn the hob down and place on smooth ground. 3. In order to prevent entrance of foreign substances and liquids between hob and counter, apply the paste given in package to the sides of lower guard of counter.
- Page 22 6. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be separated with a wooden shelf. min. 30 mm 7. While mounting hob on a closet, as shown in the figure above, in order to separate between closet and hob, a shelf should be mounted.
-
Page 23: Counter Cutting Sizes
60 mm min. 110 mm min. 60 mm min. 60 mm min. 60 mm 70 cm Hob - PRGH220 60 cm Hob - PRGH218 min. 60 mm min. 60 mm min. 60 mm min. 60 mm min. 60 mm... -
Page 24: Control Panel
2. Rear left burner 3. Wok burner 4. Rear right burner 5. Front right burner Hob Panel Visual Of 60 cm (PRGH218) 1. Front left burner 2. Rear left burner Rear right burner Front right burner WARNING: The control panels above is only for illustration purposes. -
Page 25: Usage Of Your Hob
USAGE OF YOUR HOB 1. Before starting to use your hob, be sure burner hoods are at correct position. Correct placement of burner hoods are shown in the following figure. Figure 6 Figure 7 2. Gas cocks have a special locking mechanism. Therefore, to operate hob zone, press button by pushing ahead and while opening or closing the cock, hold down the button. - Page 26 6. Flame cut-off safety device (FFD) *; operates instantly when safety mechanism activates due to overflown liquid over upper hobs. 7. While utilizing gas hobs, use saucepan, placed on hob surface as far as possible. Thanks to that, you can save energy. In the following table, cooking pot diameters recommended to be used as per burners are given.
- Page 27 Wok Burner * As it possesses double ring flame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking. When you want to use regular cooking pot on wok burner, it is necessary that you remove wok cooking pot carrier from hob.
-
Page 28: Maintenance And Cleaning
MAINTENANCE AND CLEANING Before starting to maintenance or cleaning, firstly unplug the plug supplying electricity to hob and turn down gas valve. If hob is hot, wait for cooling down. 1. For the purpose that your hob has long and economic life, regular cleaning and maintenance should be performed on your hob. -
Page 29: Troubleshooting
TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the cooker, first check the table below and try out the suggestions. Problem Possible cause Remedy... -
Page 30: Handling Rules
HANDLING RULES 1. Carry out the movement and transportation in the original packaging. 2. Pay maximum attention to the appliance while loading/ unloading and handling 3. Make sure that the packaging is securely closed during handling and transportation. 4. Protect from external factors (such as humidity, water, etc.) that may damage the packaging. -
Page 31: Environmentally-Friendly Disposal
Declaration of conformance to product standards This appliance conforms to all relavant standards applicable to domestic appliances sold in the UK Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. - Page 32 Help and assistance If you require any technical guidance or find that your Gas on Glass Hob is not operating as intended, a simple solution can often be found in the Troubleshooting section these instructions or online at www.primaappliancecare.co.uk. If you still require further assistance, call one of our experts on 0344 576 6841.
- Page 33 Contact: www.primaappliancecare.co.uk Helpline: 0344 576 6841...
