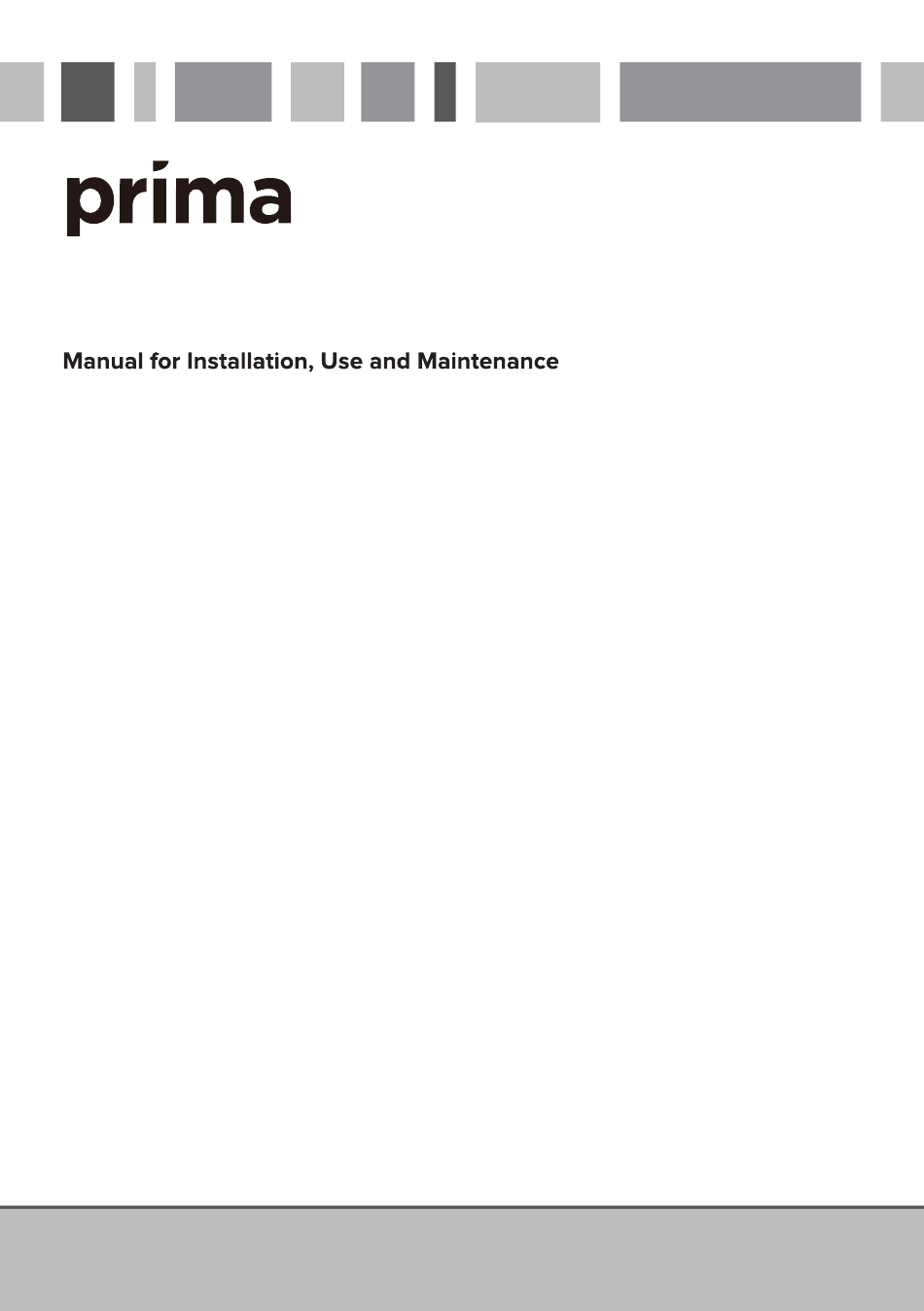

- Page 1 PRVH001 Venting Induction Hob Cod:...
-
Page 2: Installation
Please read the instruction manual carefully before operating your new venting induction hob. Congratulations on the purchase of your new venting induction hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Never leave the appliance unattended when in use. Boil-over causes smoking and greasy spillovers may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •... - Page 4 IMPORTANT INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT, IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC. Ensure to regularly pour out water from the collection cup according to frequency of use.
-
Page 5: Technical Data
Measured Power Consumption in 0.35 standby Measured Power Consumption Noise Level 45.4 Hood Hood reserves E & O E. All instructions, dimensions and illustrations are provided for guidance only. PRIMA the right to change specifications without prior notice. -
Page 6: Product Overview
PRODUCT OVERVIEW Top View 2000W zone 2000W zone 1500W zone 1500W zone 1. Heating zone selection controls 2. Power / Timer regulating key 3. keylock control 4. ON/OFF control 5. Timer control 6. Bridge 7. Downshift key 8. Shift key 9. -
Page 7: Choosing The Right Cookware
Choosing the Right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. -
Page 8: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls: Touch the keylock control. -
Page 9: Cooking Guidelines
Using the Bridge（Maximum power 3000W） To Turn On a Bridge: 1. Touch the bridge. Indicator to the right of bridge will be illuminated. The heat setting levels for the cooking areas will default to “0” and can be set from a minimum of “1” to a maximum of “9.” Any timers that may be running for the cooking areas will turn off, and 2 dashes “--”... -
Page 10: Hints And Tips
3. Spillovers on the touch controls 1). Switch off the power to the hob. 2). Soak up the spill. 3). Wipe the touch control area with a clean damp sponge or cloth. 4). Wipe the area completely dry with a paper towel. 5). -
Page 11: Failure Display And Inspection
FAILURE DISPLAY AND INSPECTION If an abnormality comes up, the induction hob will automatically enter the protective state and display corresponding protective codes: Problem Possible causes What to do Please check the main power is normal; if the leakage protection switch is off; if there is a blown fuse, replace it with a new one;... - Page 12 Packing List Cooker hoods 1. ST4*10 Screw 2. Foil tape 3. Flat channel 4. Air grill 5. Metal grease filter 6. Extraction box 7. Water tray 8. Motor 9. Adapters Induction hob 10. Induction hob 11. Fixing bracket 12. ST4*13 Screw （for junction box）...
-
Page 13: Selection Of Installation Equipment
INSTALLATION INDUCTION HOB Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5cm space should be preserved around the hole. Ensure the thickness of the work surface is at least 35mm. Please select a heat-resistant work surface material to avoid deformation caused by the heat radiation from the hotplate. -
Page 14: Before Locating The Fixing Brackets
When you have installed the hob, make sure that: • The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of fresh air from outside the cabinets to the base of the hob. •... - Page 15 Fan system installation instructions ①. The user selects the proper air outlet direction of the system according to the position of the flue and the cabinet; the 12 screws on the left and right side plates of the fixed fan can be removed, and the left and right adjustments can be made in the direction of the arrow to adjust the air outlet position.
- Page 16 Adapter and aluminum tube installation Adapter and aluminum tube installation Fix it with two ST4 * 10 screws, and then use the Align the four claws of the air collection box with the attached aluminum foil tape or ordinary tape for long holes of the adapter, then lift the air collection sealing and bonding.
- Page 17 Duct installation instructions X-50 Use a tape measure the corresponding position of the upper edge of the air collection box to the hose X-50MM, and cut the excess by hand. Stretch the aluminum foil square tube to the length of X + 15MM to install the docking fan. X+15 Stretch Fig.12...
-
Page 18: Wiring Instructions
Installation instructions for the air duct Connect the other end of the aluminum pipe to the air inlet of the bellows and fix it with two ST4 * 10 screws, and then use the attached aluminum foil tape or ordinary tape for sealing and bonding. Fig.14 Wiring instructions Plug the extractor power supply into the corresponding junction box socket and tighten. - Page 19 Filter/ Inlet-grille Installation instructions Place the filter on the filter bracket inside the air collection box,and then place the desktop inlet-grille on the stove glass opening. Fig.16 Water tray installation instructions Push the water tray horizontally from the right to the ear of the water tray to hang it stably. Fig.17...
-
Page 20: Finish Installation
Finish installation Put the drawer back or close the cabinet door. Fig.18 MAINS ELECTRICITY CONNECTION Connecting the venting induction hob to the mains power supply This venting induction hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the venting induction hob to the mains power supply, check that: 1. - Page 21 • If the cable is damaged or to be replaced, the operation must be carried out the by a service agent or a suitably qualified professional. • If the appliance is being connected directly to the mains, an omnipolar circuit breaker must be installed with a minimum opening of 3mm between contacts.
- Page 22 product if registered within 30 days of purchase.
-
Page 23: For Service
Please call for Service ontact number...
