BUILT-IN GAS HOB
INSTALLATION AND USER INSTRUCTIONS
PRGH212
PRGH214
PRGH112
PRGH114
Note: Do not use the hob until you have read the instruction manual.

1. INTRODUCTION

Semi-rapid
Semi-rapid
gas burner
gas burner
1750W
1750W
Auxiliary
Rapid
gas burner
gas burner
1000W
3000W
PRGH212
Triple flame gas burner 3800W
Rapid
Semi-rapid
gas burner
gas burner
3000W
1750W
Auxiliary
Semi-rapid
gas burner
gas burner
1000W
1750W
PRGH112 PRGH114
Even if you have used a gas hob before, it is important that you read these instructions thoroughly
before using the appliance, paying particular attention to the installation and safety instructions. If you
have any problems installing, operating or cooking with your hob, please check through these
instructions to ensure all of them have been adhered to.
WARNING! For your own safety, make sure that these instructions on installation, use and
maintenance are followed.
Please keep these instructions in a safe place for future reference.
Should the appliance be sold or transferred, please pass on these instructions to the new owner.

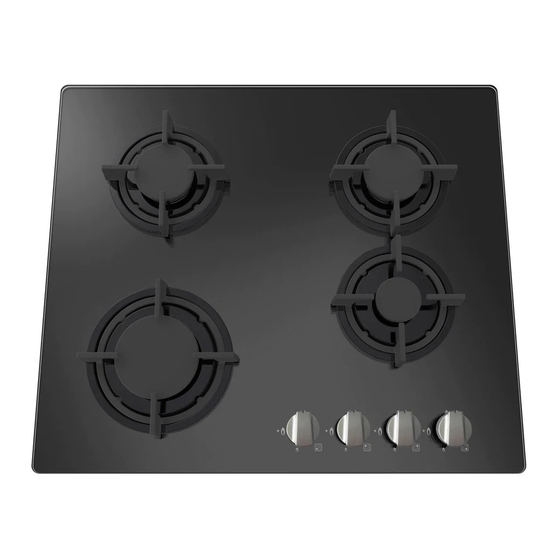

2. YOUR HOB

Applicable for Gas
Rapid Semi-rapid
Triple flame
Type gas
gas
gas burner
burner
burner
PRGH214
3.8kW 3.0kW 1.75kW
/ 3.0kW 1.75kW
PRGH212
PRGH112
3.8kW 3.0kW 1.75kW
3.0kW 1.75kW
3.8kW
PRGH114

3. CLEANING

CAST IRON OR ENAMELLED PARTS
In order to clean the hotplate, burner caps and pan supports on your hob, please use a soft cloth and hot,
soapy water.
Stubborn stains can be removed with a non-abrasive cleaning agent, so as not to damage the enamel
surface.
NOTE: The enamelled pan supports can also be cleaned safely in the dishwasher.
STAINLESS STEEL
To clean the hotplate surface, clean with a cloth soaked in hot, soapy water and then dry with a soft cloth to
avoid scratching.
PLASTIC
To clean the control knobs, wipe clean with a damp, soapy cloth.
GLASS
A non-abrasive cleaner should be used on glass surfaces.
Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings.
Glass can be effectively cleaned by simply using a dilute solution of water and mild detergent and drying to
a shine with a clean cloth.
2
Cod:0070302208
Triple flame gas burner 3800W
Semi-rapid
gas burner
1750W
Semi-rapid
gas burner
1750W
PRGH214
Flame
Auxiliary
Power
Size
Rated Electric
failure
gas Material
Supply
(mm)
Input
device
burner
1.0kW Glass Yes 2.0W
AC 220-
240V
1.0kW Glass Yes
1.1W
50Hz
Stainless
1.0kW Yes 2.0W
steel
Stainless
1.0kW Yes
2.0W
steel

SAFETY INSTRUCTIONS

Make sure that this instruction booklet is read thoroughly and understood
before attempting to install or operate this hob.
The instructions are provided in the interest of your safety.
GAS SAFETY REGULATIONS AND USE OF YOUR HOB
1. It is a legal requirement that all gas appliances are installed by
qualified personnel only in accordance with current legislation. It is your
responsibility to ensure compliance with the law.
2. Repairs or servicing of this product must only be carried out by an
authorised service agent using approved parts.
3. No attempt must be made to modify this appliance under any
circumstances.
4. Cooking appliances can become very hot in use – please keep
children and pets away from them.
5. Do not allow children to operate or play with any part of the appliance.
6. Do not use unstable pans and ensure that the handle is positioned
away from the edge of the worktop.
7. In the interest of hygiene and safety, please ensure the hob is kept
clean.
8. This appliance is designed for domestic cooking only. Commercial
use will invalidate the warranty.
9. Do not cover the hob or place combustible materials on or near the
surface even when the hob is not in use.
10. Do not fill deep fat frying containers more than one third full of oil and
NEVER leave unattended.
11. Before cleaning the hob, switch off at the mains.
12. When cooking is finished, switch off all controls and allow to cool.
13. These appliances are not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
14. If the supply cable is damaged, it must be replaced by the
authorised service agent or qualified person only.
15. Do not immerse the appliance or the power cable into water or any
other liquid.
16.the gas regulator must comply with EN 16129 or EN 12864 and local
code. Make sure of the out let pressure before connecting the gas
regulator to the product.
17.The flexible hose must comply with approval standard and the local
code.

4. INSTALLATION INSTRUCTIONS

TECHNICAL INFORMATION
Rapid
The installation, adjustments, conversions and maintenance listed in this section must be carried out by
gas burner
qualified personnel only.
3000W
The safety and automatic adjustment devices of the appliance may only be modified by an authorised
service agent.
Auxiliary
gas burner The installation of this gas hob must comply with UK standards.
1000W This appliance must be fitted in compliance with the installation rules given above. Also, particular attention
must be given to the following requirements for ventilation.
WARNING!
a) Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure)
and the adjustment of the appliance are comptaible;
b) The adjustment conditions for this appliance are tated on the label(or data plate);
c) This appliance is not connected to a combustion products evacuation device, It shall be installed and
connectd in accordance with current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation
INSTALLATION LOCATION
The appliance may be located in a kitchen, kitchen/diner or utility room, however, it cannot be in a room
containing a bath or shower. The hob must not be installed in a bed-sitting room of less than 20m
LPG models must never be installed in a room or internal space below ground level, i.e. in a basement.
PROVISION FOR VENTILATION
The room containing the appliance should have an air supply in accordance with BS5440: Part 2.
The room must have an opening window or equivalent, some rooms may also require a permanent vent.
If the room has a volume between 5-10m
has a door which opens directly to the outside. If the room has a volume of less than 5m
an air vent of 100cm
BS5440: Part 2 should be consulted to determine air vent requirements.
NOTE: The use of a gas cooking appliance results in the production of heat and moisture in the room in
which it is installed. Always ensure that the kitchen is well ventilated; keep natural ventilation holes open
or install a mechanical ventilation device (fig 2).
When using more than one hotplate at once, open a window if a mechanical extractor is not present or
Built-in
working (Fig. 3).
(mm)
(*) Air inlet minimum section: 100cm
510x700x100
477x557
500x580x100 477x557
500x680x100 477x557
500x680x100 477x557
Fig. 1
UNPACKING THE APPLIANCE
Remove all packaging and make sure the appliance is in perfect condition.
If you have any doubts, do not use the appliance and call your supplier. .
Some parts on the appliance are protected by a plastic film. This protective film must be removed
before the appliance is used.
The packaging materials should be carefully discarded and not left within easy reach of children as they
are a potential hazard.

INSTALLING AND FIXING THE HOB (QUALIFIED PERSONNEL ONLY)

The appliance can be fitted to any worktop with a thickness of 40mm or 50mm.
No overhanging surface or cooker hood should be closer to the hob than 750mm.
Fix the appliance in position (Fig. 4). The sides of the adjacent cabinets above may be lower than
750mm down to 334mm, provided they are heat and steam resistant.
These hobs are supplied with a special seal which prevents liquids from seeping underneath the
appliance. Follow these instructions in order to correctly fit this seal:
, it will require an air vent of 50cm
3
effective area (Fig. 1). If there are other fuel burning appliances in the same room,
2
2
Fig. 2 Fig. 3
1
.
3
effective area, unless it
2
3 , it will require
3
