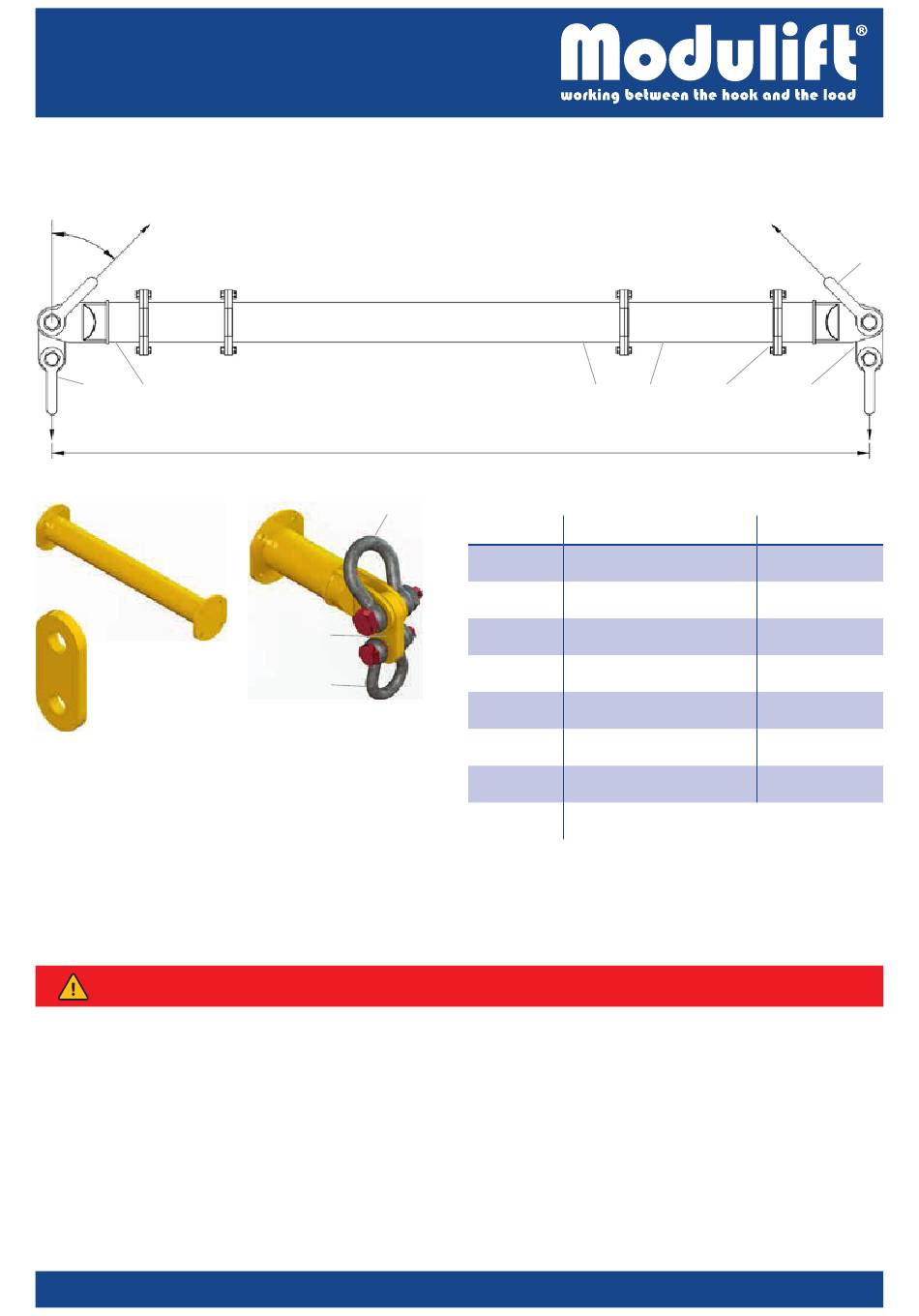

User Instructions
MOD 24
The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and
Drop Links, with intermediate struts that can be bolted into the assembly to achieve different spans.
MOD 24 has an assembled span ranging from 1 metre to 8 metres in 0.5 metre increments.
β
P7
P1
Strut
Drop link
Smaller shackle
MOD 24 Beam Specification
Rated at 24 tonnes WLL at 5 metres span
(30° STV). See Load Table for WLL at longer spans.
'Sling to Vertical' angle, β, 45 degrees or less.
End Units & Drop Links are rated at 12 tonnes WLL each (24 tonnes combined capacity).
Bolt tightening torque: 150Nm. Spanner size required: 30mm.
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in
'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER).
Never exceed stated WLL
The top sling length is critical to the safe use of the spreader
Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
Do not under any circumstances hang load(s) from the tube or flanges – the spreader is designed for
axial compression, not bending.
Modulift UK Ltd tel: +44(0)1202 621511 email: sales@modulift.com www.modulift.com
Fig. 1 – Typical Spreader Assembly
β = Sling to vertical angle
Larger shackle
Drop link
End unit sub-assy
– Adhere to WLL in Table 2 for particular sling angle used.
P3–P5
Span
Table 1 – Component List
Part Ref.
Description
P1
End Unit
P2
Drop Link
P3
2.0m Strut
P4
1.0m Strut
P5
0.5m Strut
P6
17t Shackle
P7
12t Shackle
P8
M20 x 50, Grade 8.8 HT Bolts, Nuts & Washers
– Adhere to Table 2.
P6
P8
P2
Weight/item
17kg
5kg
41kg
24kg
16kg
8kg
5kg
