User Instructions
MOD 12
The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and
Drop Links, with intermediate struts that can be bolted into the assembly to achieve different spans.
MOD 12 has an assembled span ranging from 0.5 metres to 6.5 metres in 0.25 metre increments.
β
P9
P1
Strut
Drop link
Smaller shackle
MOD 12 Beam Specification
Rated at 12 tonnes WLL at 4.75 metres span
●
●
(30° STV). See Load Table for WLL at longer spans.
'Sling to Vertical' angle, β, 45 degrees or less.
●
●
End Units & Drop Links are rated at 6 tonnes WLL each (12 tonnes combined capacity).
●
●
Bolt tightening torque: 90Nm. Spanner size required: 19mm.
●
●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
●
●
WARNING!
Personnel using this system should be suitably trained, competent and have a clear
●
●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in
●
●
'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER).
Never exceed stated WLL
●
●
The top sling length is critical to the safe use of the spreader
●
●
Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
●
●
Do not under any circumstances hang load(s) from the tube or flanges – the spreader is designed for
●
●
axial compression, not bending.
Modulift UK Ltd tel: +44(0)1202 621511 email: sales@modulift.com www.modulift.com

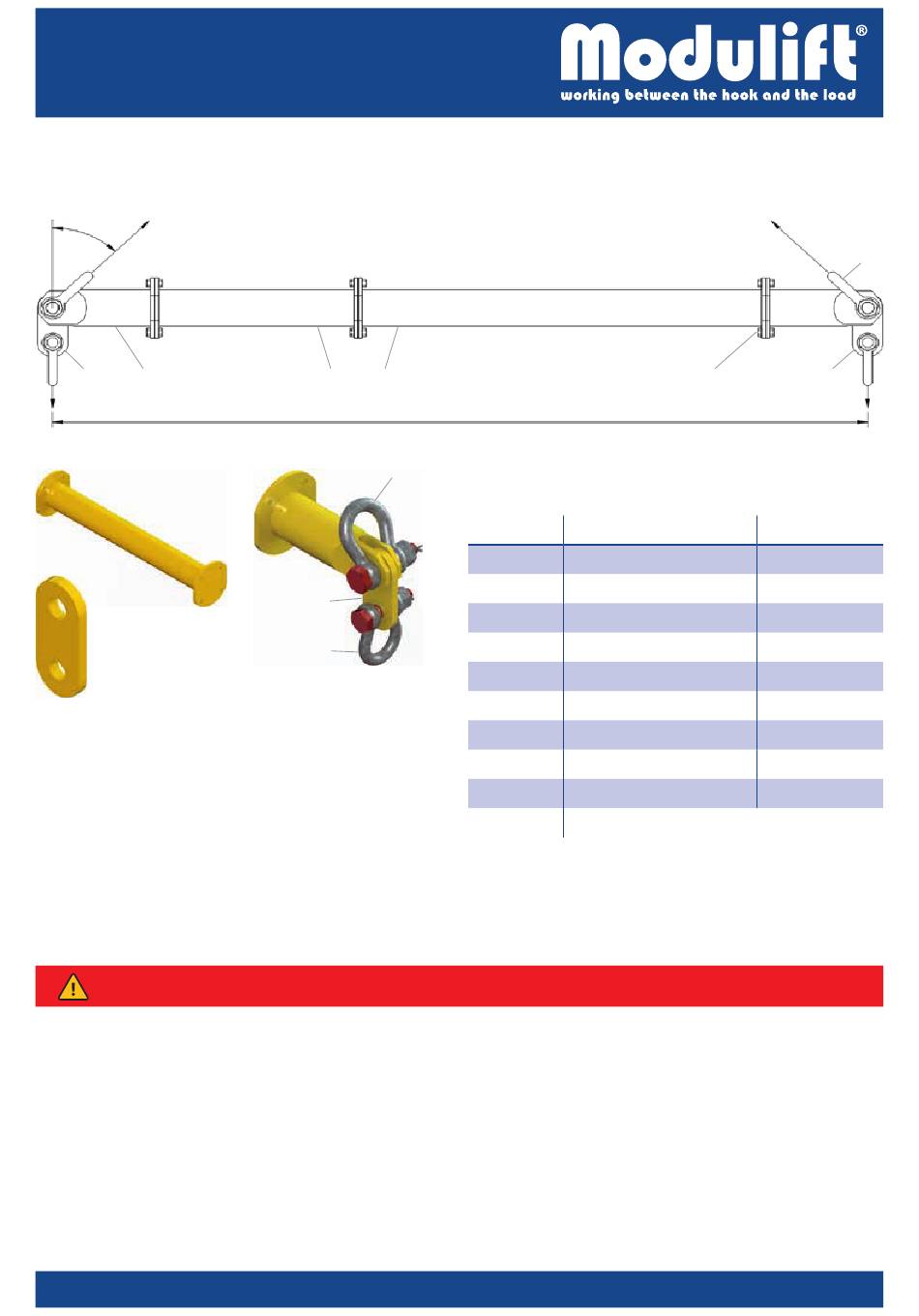

Fig. 1 – Typical Spreader Assembly
β = Sling to vertical angle
P3–P7
Larger shackle
Drop link
End unit sub-assy
– Adhere to WLL in Table 2 for particular sling angle used.
Span
Table 1 – Component List
Part Ref.
Description
P1
End Unit
P2
Drop Link
P3
1.5m Strut
P4
1.0m Strut
P5
0.75m Strut
P6
0.5m Strut
P7
0.25m Strut
P8
8.5t Shackle
P9
6.5t Shackle
P10
M12 x 35, Grade 8.8, HT Bolts, Nuts & Washers
– Adhere to Table 2.
P10
P2
Weight/item
6kg
1.3kg
19kg
14kg
11kg
8kg
6kg
2.5kg
1.5kg
P8
