Modulift CMOD 50 Quick Start Manual

CMOD 50
Spreader Frame

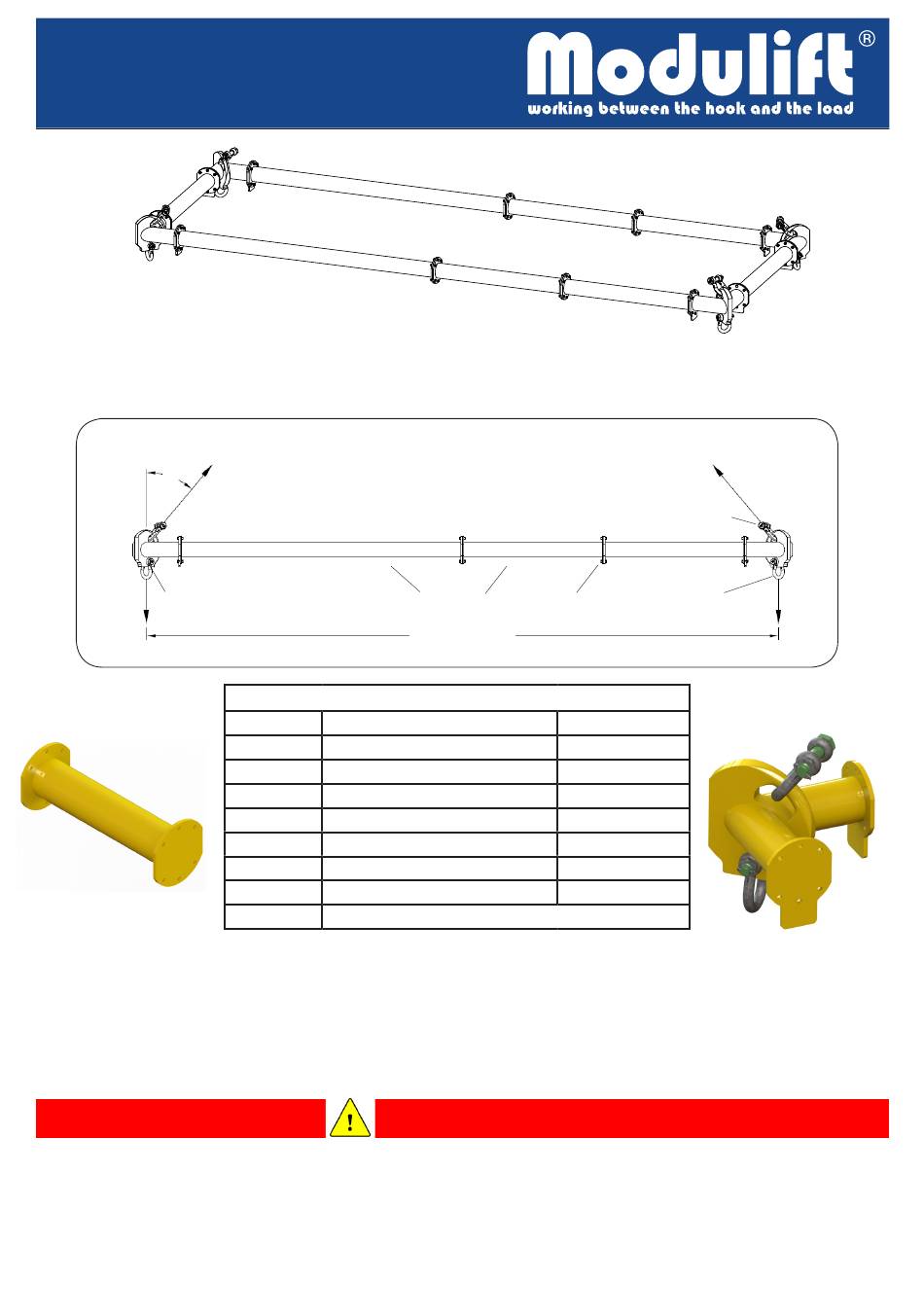

Assembled Frame:
The CMOD Spreader Frame is modular in span, and every frame consists of 4 Corner Units, with intermediate Struts that
can be bolted into the assembly to achieve different spans. The CMOD 50 has an assembled span ranging from 1m by
1m to 11m by 11m and all spans inbetween.
β
P1
STRUT
CMOD 50 - FRAME SPECIFICATION
• Rated at a maximum of 60 tonnes SWL please see table 2 for SWL at specific spans
• Sling to Vertical Angle, β, no more than 45 degrees
• Corner Units are rated at 15 tonnes each (60t combined capacity)
• Bolt tightening torque: 150Nm. Spanner size required: 30mm
• Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner
• Personnel using this system should be suitably trained, competent and have a clear understanding of Safe Slinging procedures
• The use of Modulift equipment must be in accordance with the procedures laid down in 'Lifting Operations and Lifting Equipment
Regulations 1998' (LOLER)
• NEVER EXCEED STATED SWL - ADHERE TO SWL IN TABLE 2, FOR PARTICULAR SLING ANGLE USED
• THE TOP SLING LENGTH IS CRITICAL TO THE SAFE USE OF THE SPREADER - ENSURE YOU ARE REFERRING TO
THE CORRECT TABLE
Tel: +44 (0)1202 621511 Fax: +44 (0)1202 632811

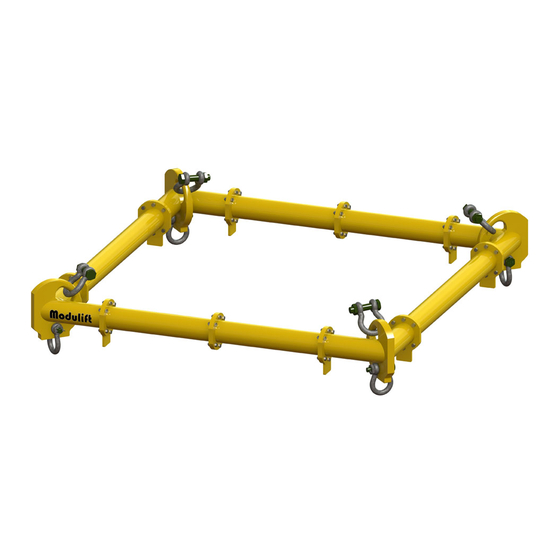

Fig. 1. Typical CMOD Spreader Frame Assembly
β = 'Sling to Vertical' Angle (STV)
TABLE 1: COMPONENT LIST
PART REF: DESCRIPTION
P1 CORNER UNIT
P2 4.0m STRUT
P3 2.0m STRUT
P4 1.0m STRUT
P5 0.5m STRUT
P6 35t SHACKLE
P7 25t SHACKLE
P8 M20X65, GRADE 8.8, HT BOLTS NUTS & WASHERS
WARNING!
MODULIFT UK LTD
P2 - P5 P8
Span
WEIGHT / ITEM
Email: sales@modulift.com
P6
P7
CORNER UNIT
150kg
140kg
82kg
53kg
38kg
20kg
14kg
