O WNER'S MANUAL
Model No. CES36A
Poduct No. 964 77 50-00

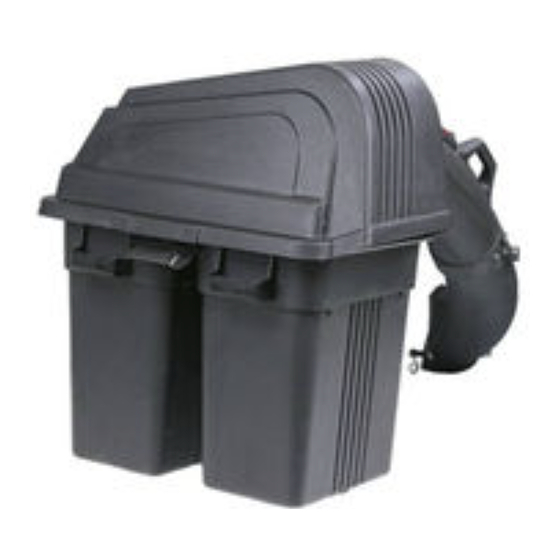

36 Inch Mower
Grass Catcher
•
Assembly
•
Operation
•
Customer Responsibilities
•
Repair Parts
r is
in e
n ta
e n
.C o
w h
ll e d
c e
r.
in e
n s ta
p la
R e
n ta
y is
t c o
e rl
n tl y.
ro p
e n
u e
e m
is p
e q
la c
g fr
e r
re p
ta in
b a
c k
e d
c o n
h e
n d
m e
s s
. C
o n
o m
n le
ra ti
r u
re c
w e
ri o
e ti e
ly a
m o
o n
d d
s e
a n
. U
a r
e d
a g
532182124
2.07.02 rad
PRINTED IN U.S.A.
Advertisement
Related Manuals for Husqvarna CES36A
Summary of Contents for Husqvarna CES36A
- Page 1 O WNER’S MANUAL Model No. CES36A Poduct No. 964 77 50-00 36 Inch Mower Grass Catcher • Assembly • Operation •...
- Page 2 SAFETY RULES Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. DO NOT: I. GENERAL OPERATION •...
-
Page 3: Table Of Contents
SAFETY RULES Safe Operation Practices for Ride-On Mowers • Be sure the area is clear of other people before mowing. Look for this symbol to point out impor- Stop machine if anyone enters the area. tant safety precautions. It means CAU- •... -
Page 4: Bag Of Parts
KNOW YOUR GRASS CATCHER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS CATCHER. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to prevent injury to yourself and others. - Page 5 BAG OF PARTS CONTENTS (continued) GROUP "D" (2) Latch Hook Assembly LOWER CHUTE ASSEMBLY (2) Screw #10 x 5/8 (2) Washer, Lock #10 MOWER DECK (2) Nut, Weld #10 (2) Washer 3/16 x 3/4 x 16 Ga. GROUP "E" CHUTE LATCH ASSEMBLY (1) Screw #10 x 1-1/8...
-
Page 6: Assembly
ASSEMBLY PARTS IDENTIFICATION NEW BLADE BOLT COVER ASSEMBLY UPPER CHUTE DUMP INDICATOR ADAPTER NEW CROSS BLADE r is in e n ta .C o lle d in e n s ta p la n ta y is t c o e rl n tl y. - Page 7 ASSEMBLY BOLTS REAR MOUNTING BRACKET (See Figs. 1A, 1B & 1C) NOTE: If your tractor already has four (4) shoulder bolts installed on the rear drawbar, simply hang the mounting bracket, lanced tabs towards bottom, on the bolts. Discard LOCKNUTS hardware group "A"...
- Page 8 ASSEMBLY MOUNTING COVER ASSEMBLY TO CONTAINER ASSEMBLY (See Fig. 5) TRACTOR (See Fig. 4) No hardware required Use Hardware - - GROUP "C" • Place bottom half inside of top half, as shown. NOTE: For ease of assembly, you may wish to obtain the •...
- Page 9 ASSEMBLY LOWER CHUTE (See Figs. 7A & 7B) CONTAINER MOUNTING (See Fig. 6) Use Hardware - - GROUP "D" No hardware required • Press weld nut into rubber latch and install two latch • Install one container to left side first with warning to hook assemblies to lower chute using screw, flat washer, outside of unit.
- Page 10 ASSEMBLY CHUTE LATCH ASSEMBLY ALIGNMENT SLOT (See Fig. 8) Use Hardware - - GROUPS "E & F" • Assemble latch pin to upper chute, as shown. LATCH PIN • Press weld nut into rubber latch and assemble rubber latch to lower chute, as shown. •...
-
Page 11: Operation
OPERATION • Avoid cutting wet grass or in the morning while the dew TIPS FOR IMPROVED BAGGING OPERATION: is still heavy. Grass clippings collected under these Follow the mower operation instructions in your tractor conditions tend to be sticky and adhere to the walls of owner's manual. -
Page 12: Customer Responsibilities
CUSTOMER RESPONSIBILITIES GENERAL RECOMMENDATIONS STORAGE Always observe safety rules when performing any mainte- When grass catcher is to be stored for a period of time, clean nance. it thoroughly, remove all dirt, grass, leaves, etc. Store in a clean, dry place. •... - Page 13 SERVICE NOTES...
