  • Page 1 Springtree Media Group User Manual SM-8 & SS-8 DMX Wall Stations...

  • Page 2: Table Of Contents

    Table of Contents Resources Description Installation Programming Safety & Troubleshooting Specifications Contact Us...
  • Page 3 Resources Online Installation Guide We offer a step-by-step online installation guide, with videos. https://www.springtree.net/wall-station- installation-guide/ Knowledge Base Frequently Asked Questions Helpful Guides & Articles https://www.springtree.net/knowledge- base/...

  • Page 4: Description

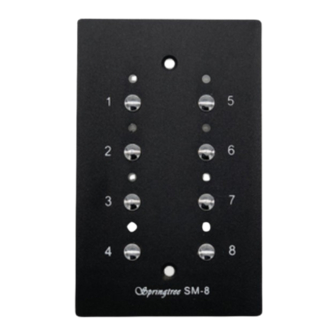

    Once programmed, SM-8s can operate alone or with a lighting console. When using a lighting console, the SM-8 goes in the line of DMX between the console and the lights and becomes inoperable SKU: SM-8 when it senses DMX data from the console. This allows the facility to use the SM-8 for everyday use and a lighting console for events and services.

  • Page 5: Installation

    SS-8 units are provided by the SM-8 via CAT5. Mounting The SM-8 and SS-8 come with a single gang mud ring. They will not fit in a standard single gang box. Should you need to mount in a metal in-closed handy box please use a Raco 670RAC box (pictured here, not included).
  • Page 6 Springtree Media Group Installation Connecting Power The SM-8 includes a short power whip. If power is not nearby, power can be extended with an 18 gauge low voltage cable. Grounding Be sure to ground your SM-8! The SM-8 has a short ground whip attached to the back. The ground whip can be grounded to the outlet that is providing power.

  • Page 7: Programming

    2. Select 1 for 1 second. 2 for 2 seconds. 3 for 3 seconds. 4 for 4 seconds and 8 for instant (no fade rate). 3. Hold down 2 and 7 to exit program mode. If DMX is present at wall station, DMX passes and the wall station is inoperable SM-8 & SS-8...
  • Page 8 5. This fixture is intended for indoor use ONLY! Troubleshooting 1. Check that the 12V power supply is plugged in and connected to the SM-8. 2. Check that the DMX cables are connected properly and are wired correctly. 3. Is the SM-8 receiving DMX from the controller? DMX from the controller will override the SM-8.

  • Page 9: Specifications

    Springtree Media Group Specifications 2 3/4” Power: 12V (power supply included) Weight: .2 lbs Finish: Black Aluminum 4 1/4” 1 5/8" SM-8 & SS-8...

  • Page 10: Contact Us
