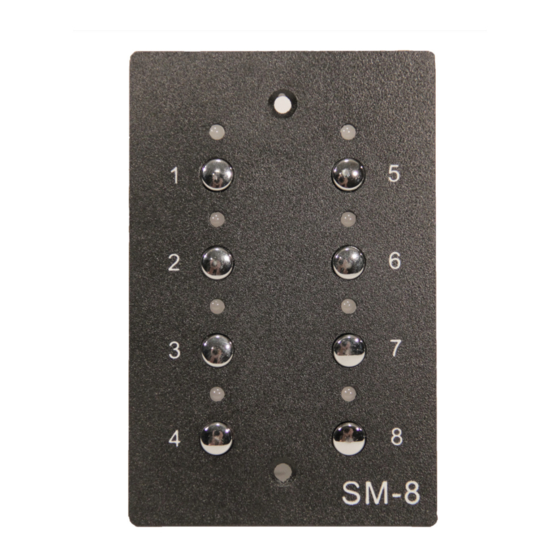

Springtree SM-8 User Manual And Installation Manual

Wall station dmx recorder
Hide thumbs Also See for SM-8:
Table of Contents

Advertisement

Quick Links

Springtree Wall
Station DMX
Recorder
USER MANUAL AND
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Springtree SM-8

Summary of Contents for Springtree SM-8

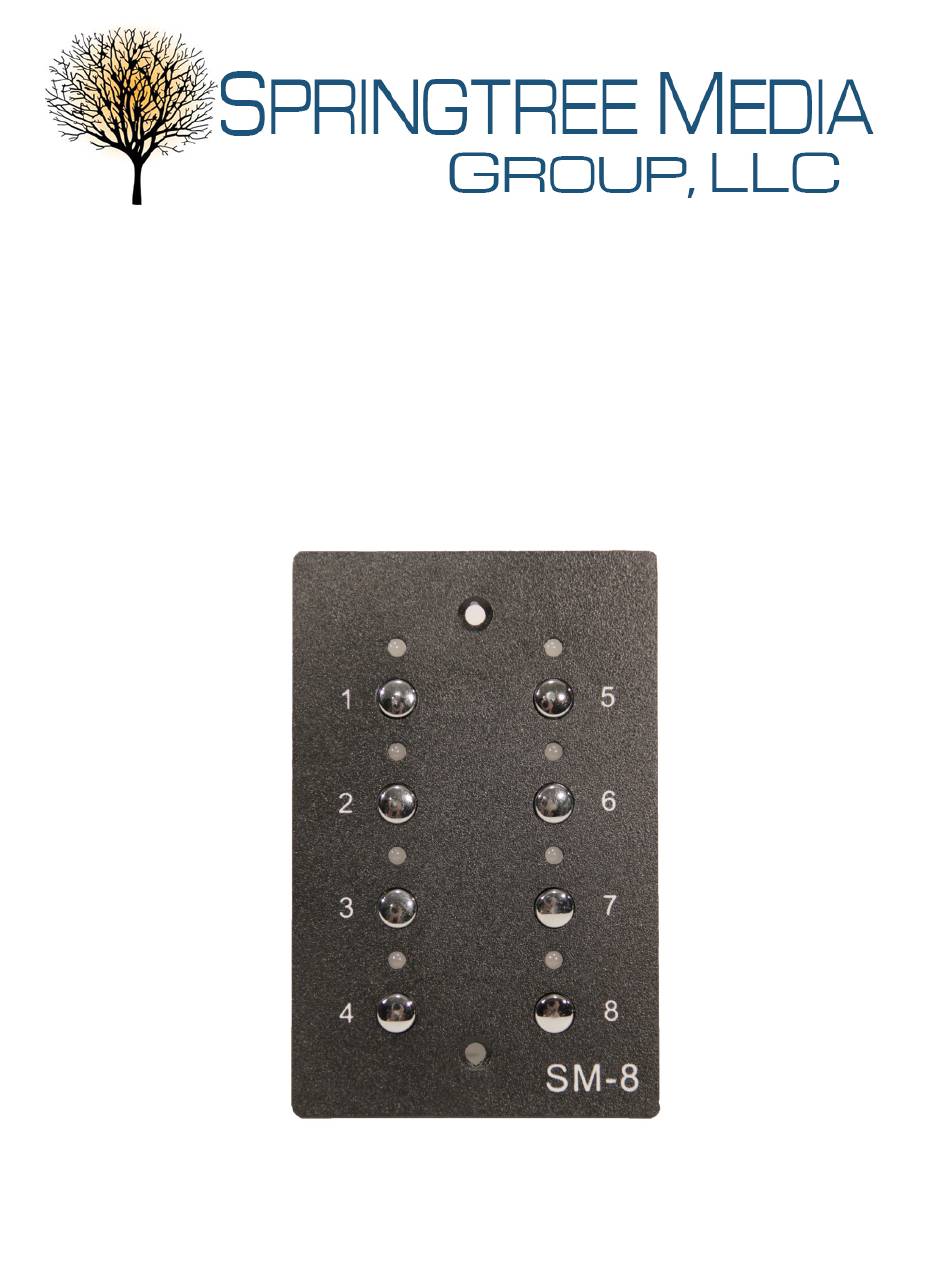

  • Page 1 Springtree Wall Station DMX Recorder USER MANUAL AND INSTALLATION GUIDE...

  • Page 2: Table Of Contents

    T able of Contents 1. Product Information Description..........................3 Features............................3 2. Installation Power supply..........................4 Mounting............................4 Connecting..........................4 3. Programming Programming..........................5 4. Technical Specifications Dimensions..........................6 4. Troubleshooting Troubleshooting.........................7 Contact us..........................7 (615) 599-1505 www.springtree.net...

  • Page 3: Product Information

    SM-8 has been programmed it then operates on its own without need- ing to be connected to the lighting controller. The SM-8 is the master and the SS-0 is the satellite. The SM-8 is connected to the SS-0 via CAT5. Up to 3 SS-0’s can be used in one system.

  • Page 4: Installation

    SM-8 via CAT5. Mounting The SM-8 and SS-0 come with a single gang mud ring. They will not fit in a standard single gang box. Should you need to mount in a metal in-closed handy box please use a Raco 670RAC box (pictured here, not included).

  • Page 5: Programming

    The SM-8 comes with a short power whip that connects to the power supply that is provided. If there is power close simply connect the SM-8 to the power supply. If power is not nearby, power can be extended with 18 gauge low voltage cable.

  • Page 6: Technical Specifications

    2 3/4” (69.85mm) 1 5/8” (41.28mm) 4 1/4” (107.95mm) • Power: 12V • Weight (SM-8): .2 lbs (90.7g) • Weight (SS-0): .2 lbs (90.7g) • Finish: Black Aluminum Safety Precautions • To reduce the risk of electrical shock or fire, do not expose this unit to moisture.

  • Page 7: Troubleshooting

    Troubleshooting Master Unit not responding: 1. Check that the 12V power supply is plugged in and connected to the SM-8. 2. Check that the DMX cables are connected properly and are wired correctly. 3. Is the SM-8 receiving DMX from the controller? DMX from the controller will override the SM-8.

This manual is also suitable for:

Ss-0
