COMMITTED TO EXCELLENCE
Instructions
P6455 TTL/MOS
PATTERN GENERATOR
PROBE
Digital Analysis System 9100 Series
3616-01

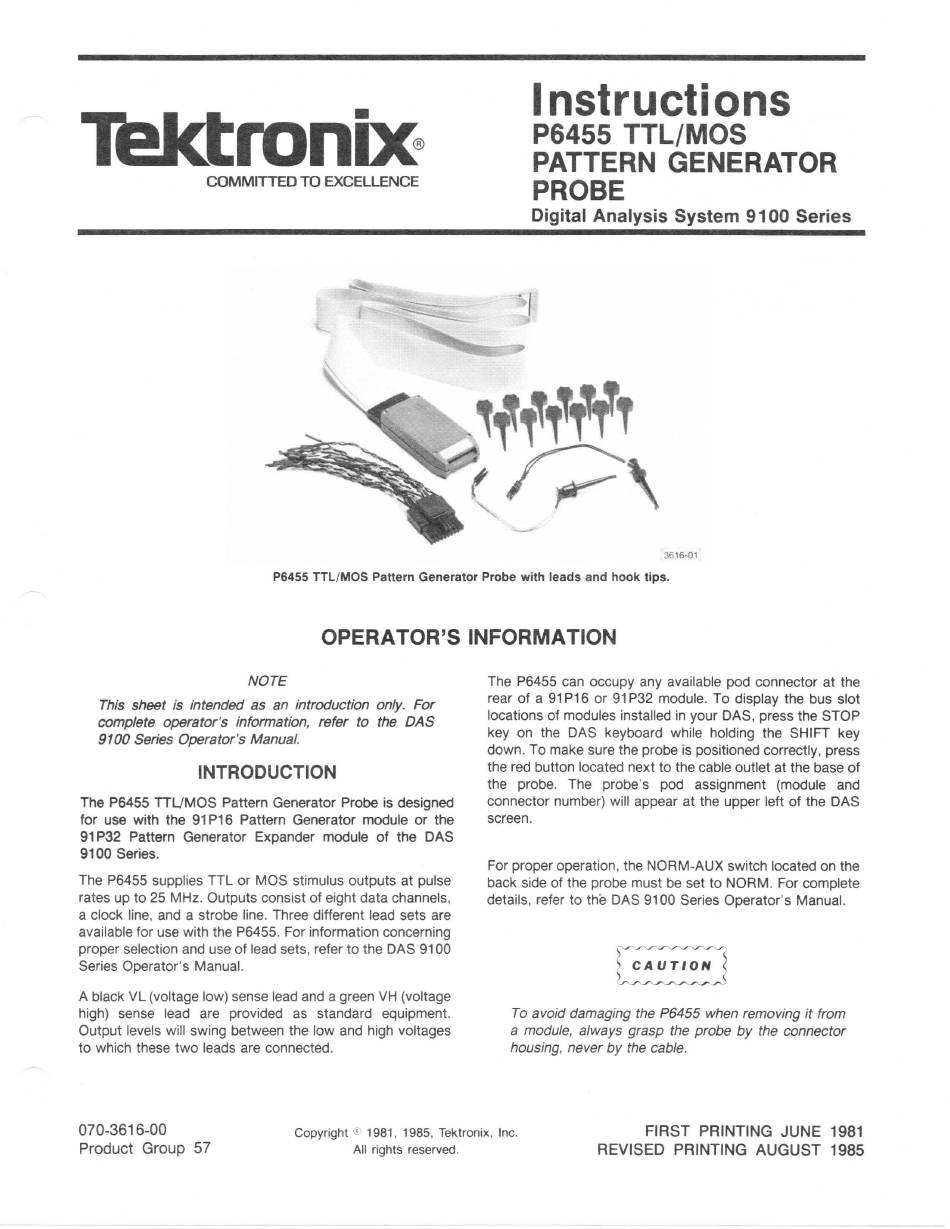

P6455 TTL/MOS Pattern Generator Probe with leads and hook tips.
OPERATOR'S INFORMATION
NOTE
This sheet is intended as an introduction only. For
complete operator's information, refer to the DAS
9100 Series Operator's Manual.
INTRODUCTION
The P6455 TTLJMOS Pattern Generator Probe is designed
for use with the 91 P16 Pattern Generator module or the
91 P32 Pattern Generator Expander module of the DAS
9100 Series.
The P6455 supplies TTL or MOS stimulus outputs at pulse
rates up to 25 MHz. Outputs consist of eight data
channels,
a clock
line,
and a strobe
line.
Three different lead sets are
available for use with the P6455. For information concerning
proper selection and use of lead
sets,
refer to the DAS 9100
Series Operator's Manual.
A black VL (voltage
low)
sense lead and a green VH (voltage
high) sense lead are provided as standard equipment.
Output levels will swing between the low and high voltages
to which these two leads are connected
.
The P6455 can occupy any available pod connector at the
rear of a 91P16 or 91 P32 module. To display the bus slot
locations of modules installed in your DAS, press the STOP
key on the DAS keyboard while holding the SHIFT key
down. To make sure the probe is positioned correctly, press
the red button located next to the cable outlet at the base of
the probe. The probe's pod assignment (module and
connector number) will appear at the upper left of the DAS
screen.
For proper
operation,
the NORM-AUX switch located on the
back side of the probe must be set to NORM
.
For complete
details, refer to the DAS 9100 Series Operator's Manual.
To avoid damaging the P6455 when removing it from
a
module,
always grasp the probe by the connector
housing,
never by the cable.
070-3616-00
Product Group 57
Copyright
@'
1981
, 1985,
Tektronix
,
Inc.
FIRST PRINTING JUNE 1981
REVISED PRINTING AUGUST 1985
All rights reserved
.
