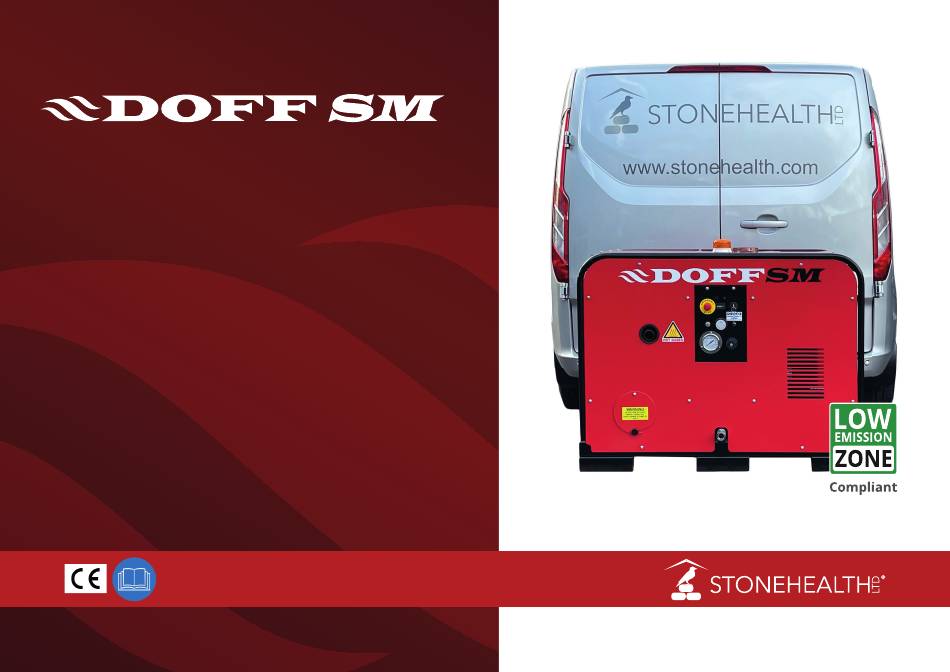

- Page 1 User Guide SUPERHEATED WATER / STEAM CLEANING SYSTEM THE STONEHEALTH DOFF SM USER GUIDE STONEHEALTH.COM...
- Page 2 ORIGINAL INSTRUCTIONS Index PAGE 02 SAFETY INFORMATION SAFETY INFORMATION CHECKLIST PAGE 03 PAGE 04 SPECIFICATION AND SITE REQUIREMENTS PAGE 05 CHECKLIST OF PARTS REQUIRED PAGE 06 CONTROL PANEL - A DETAILED VIEW QUICK SET UP GUIDE PAGE 07 - 09 PAGE 10 ROUTINE MAINTENANCE PAGE 11...
-
Page 3: Safety Information
CONSIDERATIONS WHEN USING THE DOFF SYSTEM Only Stonehealth inducted and authorised operators may use the equipment. A nominated person adjacent, other than the Operator, should be aware of how to safely shut down the system in unforeseen circumstances. Whilst personnel working in the vicinity need not be inducted into the working of the system, they should be made aware of the potenti al hazards –... - Page 4 ‘CE’ mark and any warranty null and void. In the event of accident or breakdown: Release the trigger, operate the emergency stop. WHILST STONEHEALTH HAVE MADE EVERY EFFORT TO GIVE APPROPRIATE GENERAL GUIDANCE THE EQUIPMENT MUST COMPLY WITH AND BE USED IN ACCORDANCE WITH ANY REGULATION...
-
Page 5: Specification
ORIGINAL INSTRUCTIONS Specifi cati on MASS 250KG DIMENSIONS L: 1100mm W: 600mm H: 900mm FLOW RATE 7 - 10L Per Minute OUTPUT TEMPERATURE 150°c PUMP PRESSURE 20 - 150 bar NOISE LEVEL 95.4 dB Max IP RATING HEATER OUTPUT 74KW FUEL Diesel Only Ambient temperature range for operation and storage is 5 Degrees C to 40 Degrees C. - Page 6 ORIGINAL INSTRUCTIONS Checklist of Parts Required DOFF SKID MOUNT • 01 LANCE x2 • 06 JERRY CAN • 02 SPARE FUEL FILTER • 07 HOSE • 03 DE-SCALER HOSE • 08 EXTENSION HOSE • 04 25 LITRES OF DOFF DESCALER •...
- Page 7 ORIGINAL INSTRUCTIONS Control Panel - Detailed View EMERGENCY STOP • 01 OIL LIGHT • 02 COOL DOWN LIGHT • 03 ON/OFF • 04 THERMOSTAT RESET • 05 THERMOSTAT • 06 PUMP PRESSURE ADJUSTMENT • 07 PRESSURE GAUGE • 08...
- Page 8 ORIGINAL INSTRUCTIONS Quick Setup Guide 1) To operate the DOFF Skid Mount, you will need a clean, cold water supply 2) To begin, connect the fuel connectors. The DOFF Skid Mount functions using diesel only. Never fuel the DOFF with petrol under any circumstances. providing no less than 7 - 10 litres of water per minute.
- Page 9 ORIGINAL INSTRUCTIONS Quick Setup Guide 5) Then, connect the Trigger to the hot hose. To power on the DOFF Skid Mount, pull the emergency stop button out fully and then turn the key clockwise to the one o’clock position. 8) Adjust the controls to the desired heat and pressure. You are now ready to 7) Once the system has been flushed, you can safely connect the lance to the DOFF trigger.
- Page 10 CHECK ENGINE & PUMP OIL DAILY Here you can check the oil level and replenish accordingly, if required. You are now ready to start using the DOFF Skid Mount. For more detailed operation instructions, scan the QR code or visit stonehealth.com/setting-up- the-stonehealth-doff-skid-mount/...
-
Page 11: Routine Maintenance
Always cool down DOFF system when not in use (we recommend cooling for any break in operation of more than 2 minutes) Stonehealth stock a full range of spare parts. Due to the nature of the system, we recommend only using parts supplied by Stonehealth and will need to be fitted by a competent person. -
Page 12: Ec Declaration Of Conformity
EC Declarati on of Conformity EC Declaration of Conformity In accordance with EN ISO 17050-1:2004 Stonehealth Ltd G4/5 Draycott Business Park, Cam, Dursley, Gloucestershire, GL11 5DQ, UK in accordance with the following Directives: What does a Declarati on of Conformity mean? - Page 14 ORIGINAL INSTRUCTIONS NOTES...
- Page 15 ORIGINAL INSTRUCTIONS NOTES...
- Page 16 Like us on Facebook Follow us on Twitter Stonehealth Ltd | G4/5 | Draycott Business Park | Cam | Dursley | GL11 5DQ As RIBA/CPD Registered Providers, Stonehealth’s expertise contributes to the conservation of THE STONEHEALTH historical buildings. It supports conservation and environmental organisations, including the...
