TV Installation and Connection Guide

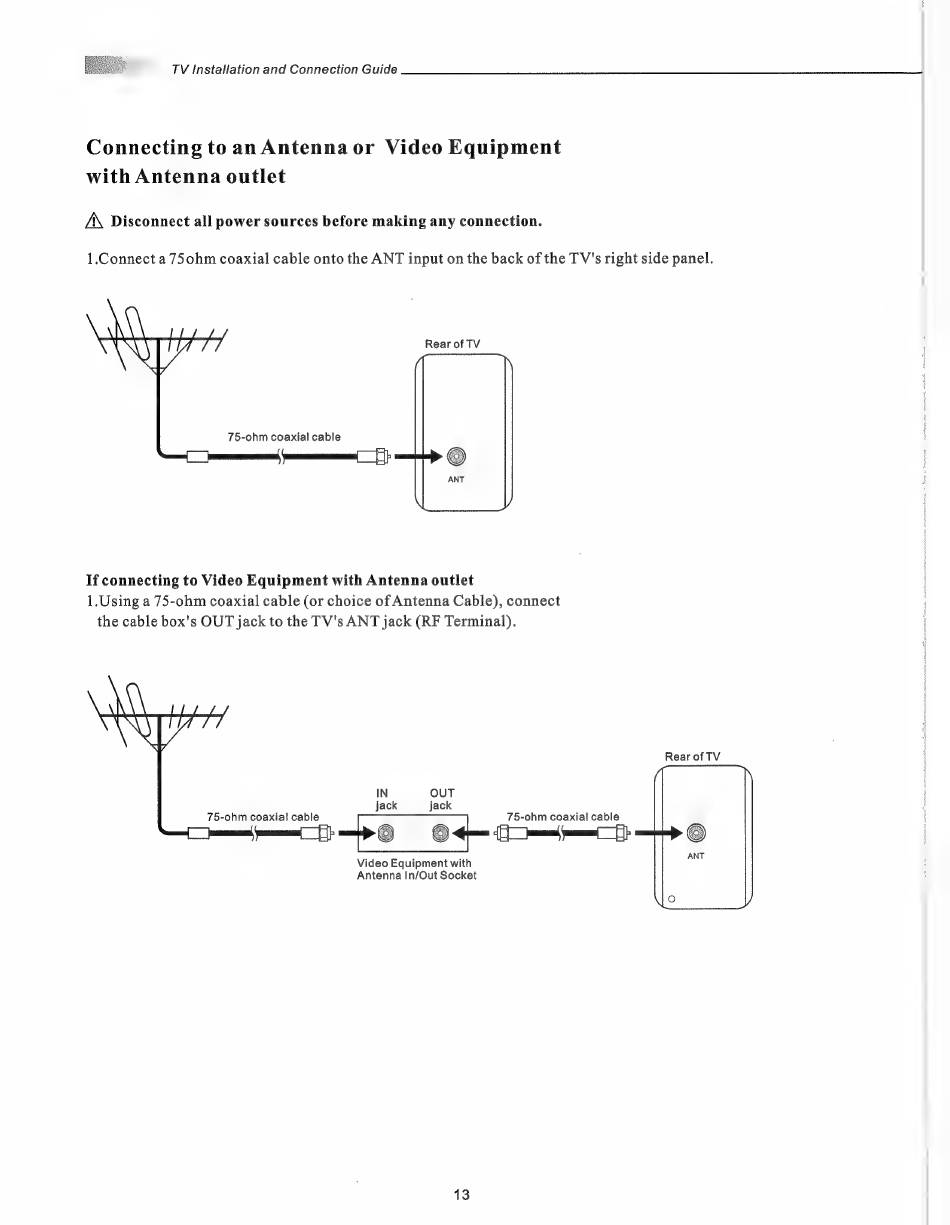

Connecting to an Antenna or Video Equipment
with Antenna outlet
A\ Disconnect all power sources before making any connection.
1.Connect a 75ohm coaxial cable onto the ANT input on the back of the TV's right side panel.
Rear of TV
75-ohm coaxial cable
If connecting to Video Equipment with Antenna outlet
1.Using a 75-ohm coaxial cable (or choice of Antenna Cable), connect
the cable box's OUT jack to the TV's ANT jack (RF Terminal).
Rear of TV
IN OUT
jack jack
75-ohm coaxial cable 75-ohm coaxial cable
(EN Ga
wm E RB mim D El
Video Equipment with
Antenna In/Out Socket
13
