TV Installation and Connection Guide
Identifying Front and Rear Connectors

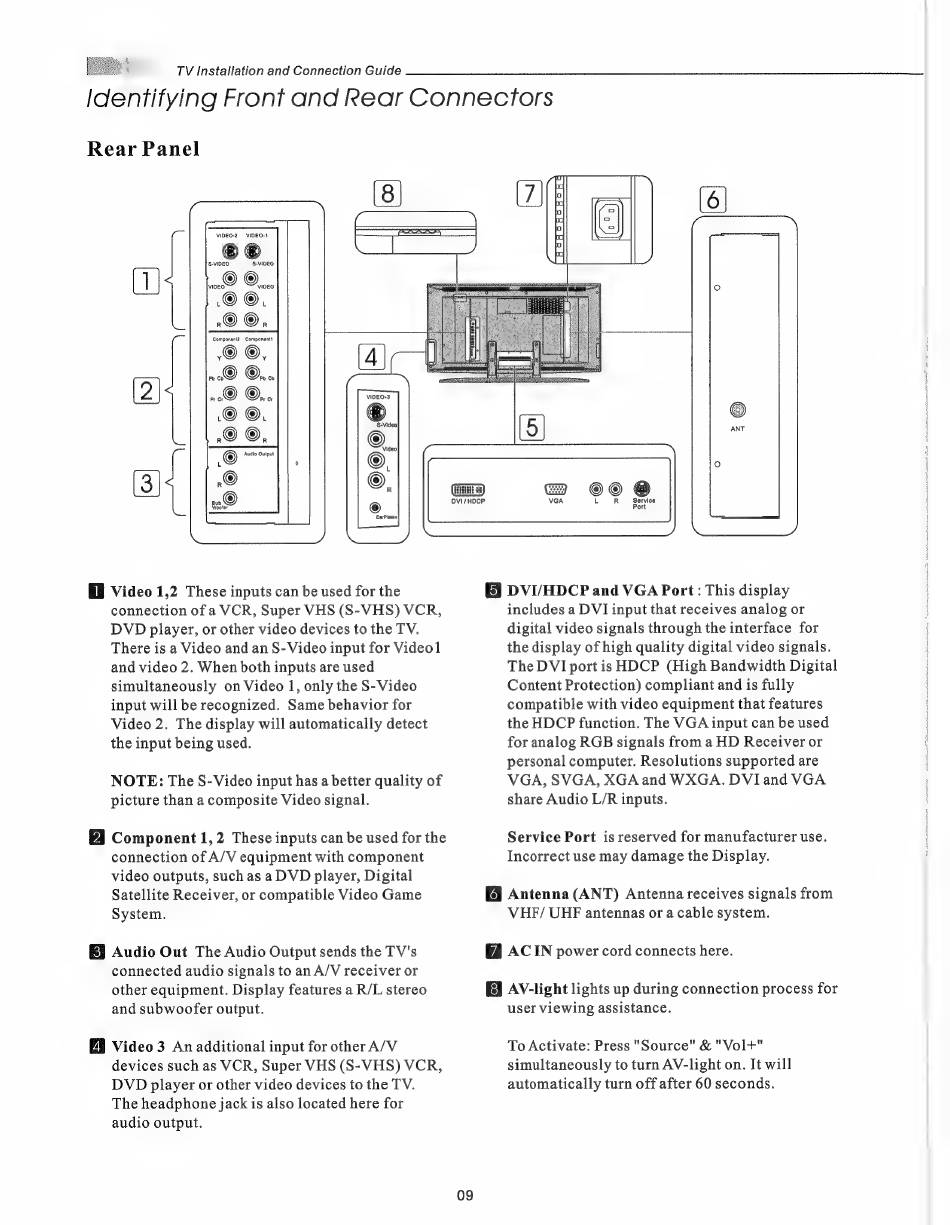

Rear Panel
VIDEO-2 VIDEO-+
@ E
©
Se
5 a ZS
x
Co
© ©
©...
2
@:
Ei
S
= SZ
D
KKH
a S S
=
eee
ees
a
©
3 H
Video 1,2 These inputs can be used for the
connection of a VCR, Super VHS (S-VHS) VCR,
DVD player, or other video devices to the TV.
There is a Video and an S-Video input for Video)
and video 2. When both inputs are used
simultaneously on Video 1, only the S-Video
input will be recognized. Same behavior for
Video 2. The display will automatically detect
the input being used.
NOTE: The S-Video input has a better quality of
picture than a composite Video signal.
Component 1,2 These inputs can be used for the
connection of A/V equipment with component
video outputs, such as a DVD player, Digital
Satellite Receiver, or compatible Video Game
System.
Audio Out The Audio Output sends the TV's
connected audio signals to an A/V receiver or
other equipment. Display features a R/L stereo
and subwoofer output.
Video 3 An additional input for other A/V
devices such as VCR, Super VHS (S-VHS) VCR,
DVD player or other video devices to the TV.
The headphone jack is also located here for
audio output.
DVI/HDCP and VGA Port: This display
includes a DVI input that receives analog or
digital video signals through the interface for
the display of high quality digital video signals.
The DVI port is HDCP (High Bandwidth Digital
Content Protection) compliant and is fully
compatible with video equipment that features
the HDCP function. The VGA input can be used
for analog RGB signals from a HD Receiver or
personal computer. Resolutions supported are
VGA, SVGA, XGA and WXGA. DVI and VGA
share Audio L/R inputs.
Service Port is reserved for manufacturer use.
Incorrect use may damage the Display.
BB Antenna (ANT) Antenna receives signals from
VHF/ UHF antennas or a cable system.
ACIN power cord connects here.
EJ AV-light lights up during connection process for
user viewing assistance.
To Activate: Press "Source" & "Vol+"
simultaneously to turn AV-light on. It will
automatically turn off after 60 seconds.
