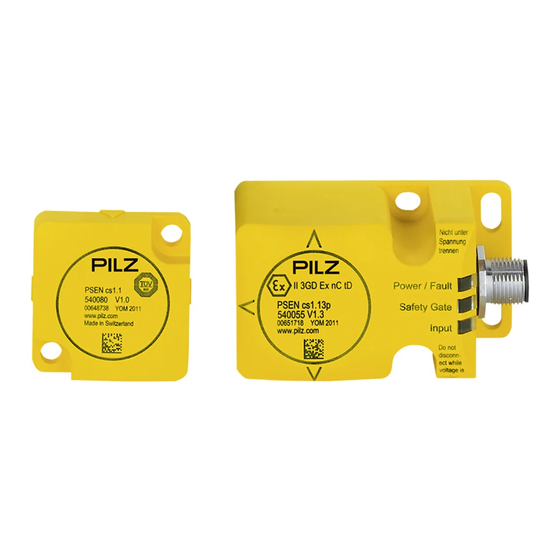

Pilz PSEN cs1.13p ATEX Operating Manual
Safety switch
Hide thumbs
Also See for PSEN cs1.13p ATEX:
- Operating manual (48 pages) ,
- Operating instructions manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pilz PSEN cs1.13p ATEX
Summary of Contents for Pilz PSEN cs1.13p ATEX
- Page 1 PSEN cs1.13p ATEX Operating Manual-21097-EN-20 - PSEN sensor technology...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Teaching in the actuator ......................22 Installation ..........................22 Periodic test ..........................25 Adjustment ..........................25 Operation ..........................25 Dimensions in mm .........................26 Technical details ........................27 Safety characteristic data......................30 Supplementary data .......................31 Radio approval ..........................31 Order reference ........................32 System ............................32 Accessories..........................32 Operating Manual PSEN cs1.13p ATEX 21097-EN-20... - Page 4 Contents EC declaration of conformity ....................34 UKCA-Declaration of Conformity ..................34 Operating Manual PSEN cs1.13p ATEX 21097-EN-20...
-
Page 5: Introduction
This describes a situation in which the product or devices could be dam- aged and also provides information on preventive measures that can be taken. It also highlights areas within the text that are of particular import- ance. Operating Manual PSEN cs1.13p ATEX 21097-EN-20... -
Page 6: Safety
Any component, technical or electrical modification to the product, Use of the product outside the areas described in this operating manual, Use of the product outside the technical details (see chapter entitled Technical Details [ 27]). Operating Manual PSEN cs1.13p ATEX 21097-EN-20... -
Page 7: Safety Regulations
You will need to be conversant with the information in these documents in order to fully un- derstand this operating manual. Use of qualified personnel The products may only be assembled, installed, programmed, commissioned, operated, maintained and decommissioned by persons who are competent to do so. Operating Manual PSEN cs1.13p ATEX 21097-EN-20... -
Page 8: Warranty And Liability
– If substitute actuators are used, these must be installed as described under Installation [ 22]. – If the original actuators are replaced with substitute actuators, the ori- ginal actuators must be destroyed before disposal. Operating Manual PSEN cs1.13p ATEX 21097-EN-20... -
Page 9: Unit Features
Diagnostic input for Y1 for Safety Device Diagnostics (SDD) Signal output/diagnostic output Y32 for Safety Device Diagnostics LED display for: – State of the actuator – State of the inputs – Supply voltage/fault 4 directions of actuation Operating Manual PSEN cs1.13p ATEX 21097-EN-20... -
Page 10: Function Description
If no SDD fieldbus module is used, the diagnostic input Y1 is not used. Signal output/diagnostic output Y32 in SDD mode If an SDD fieldbus module is used, the signal output/diagnostic output Y32 is activated for writing data. Operating Manual PSEN cs1.13p ATEX | 10 21097-EN-20... -
Page 11: Safety Device Diagnostics
With Safety Device Diagnostics there are the following diagnostic options for the fieldbus module for simple wiring: – Information is passed on via the fieldbus module directly to the network – Mappings of the signal outputs to the sensor are automated by the SDD. Operating Manual PSEN cs1.13p ATEX | 11 21097-EN-20... -
Page 12: Operating Distances
Additional documents that apply [ Operating distances Legend: : Assured operating distance: 15 mm : Typical operating distance: 21 mm : Typical release distance: 32 mm : Assured release distance: 40 mm Operating Manual PSEN cs1.13p ATEX | 12 21097-EN-20... -
Page 13: Lateral And Vertical Offset
The power supply must meet the regulations for extra low voltages with protective elec- trical separation (SELV, PELV). The inputs and outputs of the safety switch must have protective separation from voltages over 60 VDC. Operating Manual PSEN cs1.13p ATEX | 13 21097-EN-20... - Page 14 As shown in the diagram, combine the clips supplied above the screw connection of the cable and press both parts firmly onto each other. The clips must audibly lock into posi- tion and they must not be manually detachable. Legend [1] Manipulation protection CABLE/M12/CLIP Operating Manual PSEN cs1.13p ATEX | 14 21097-EN-20...
-
Page 15: Terminal Assignment Connectors
Output, channel2 yellow Signal output/diagnostic output grey Input, channel 1 pink 0 V UB blue Diagnostics input The wire colour also applies for the cable available from Pilz as an accessory. Operating Manual PSEN cs1.13p ATEX | 15 21097-EN-20... -
Page 16: Connection To Evaluation Devices
Also note the max. current (see Technical details [ 27]). Connection diagram, single connection without SDD Actuator Safety switch I1 (FS) I2 (FS) Evaluation device FS: Fail-Safe 24 V Operating Manual PSEN cs1.13p ATEX | 16 21097-EN-20... - Page 17 (e.g. PL e (Cat. 4)), the maximum delay or risk time permitted by the application. Ensure there is sufficient supply voltage, taking inrush currents and fusing into considera- tion. Operating Manual PSEN cs1.13p ATEX | 17 21097-EN-20...
- Page 18 High signals must return at the inputs on the evaluation device (e.g. S11, S21 or I1, I2). Repeat the test for each gate. If the input signals do not react as described above, check and rectify the wiring and carry out the test again. Operating Manual PSEN cs1.13p ATEX | 18 21097-EN-20...
- Page 19 PSEN cs1.13p ATEX Connection diagram, series connection without SDD Controller Safety switch Actuator Safety switch Actuator Safety switch Actuator Ex area I1 (FS) I2 (FS) Non-Ex area Evaluation device FS: Fail-Safe 24 V Operating Manual PSEN cs1.13p ATEX | 19 21097-EN-20...
- Page 20 PSEN cs1.13p ATEX Connection diagram, series connection with SDD Actuator Safety switch Actuator Safety switch Actuator Safety switch Ex area I1 (FS) I2 (FS) Non-Ex area Evaluation device FS: Failsafe Fieldbus module 24 V Operating Manual PSEN cs1.13p ATEX | 20 21097-EN-20...
- Page 21 PSEN cs1.13p ATEX Connection to Pilz evaluation devices The safety switch PSEN cs1.13p can be connected to Pilz evaluation devices, for example. Suitable Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring PNOZpower for safety gate monitoring PNOZsigma for safety gate monitoring...
-
Page 22: Teaching In The Actuator
PSENcode Without SDD With SDD Teaching in the actuator Any approved Pilz actuator (see Intended use) is detected as soon as it is brought into the response range. Installation DANGER! Risk of sparking due to electrostatic charging of the safety switch in... - Page 23 Installing the safety switch non-flush within electrically or magnetically con- ductive material, the value for the assured release distance S can change. – Check the assured release distance S Operating Manual PSEN cs1.13p ATEX | 23 21097-EN-20...
- Page 24 Make sure that the actuator with the printed side points towards the marking on the sensor. 5. Do not fully tighten the second screw on the actuator. 6. Align the safety switch and tighten the screws. 7. Align the actuator and tighten the screws. Operating Manual PSEN cs1.13p ATEX | 24 21097-EN-20...
-
Page 25: Periodic Test
"Input" LED lights up yellow: the signal switches from high to low at one input, while a high signal remains on the other input (partial operation). Remedy: Open both channels of the input circuit. "Power/Fault" LED lights up red: Error message Remedy: Rectify fault and interrupt power supply. Operating Manual PSEN cs1.13p ATEX | 25 21097-EN-20... -
Page 26: Dimensions In Mm
PSEN cs1.13p ATEX Dimensions in mm Safety switch 21,5 Actuator Operating Manual PSEN cs1.13p ATEX | 26 21097-EN-20... -
Page 27: Technical Details
Residual current at outputs 10 µA Voltage drop at OSSDs 3,5 V Lowest operating current 0 mA Utilisation category in accordance with EN 60947-1 DC-12 Times Max. test pulse duration, safety outputs 450 µs Operating Manual PSEN cs1.13p ATEX | 27 21097-EN-20... - Page 28 1 mm Shock stress in accordance with the standard EN 60947-5-2 Acceleration Duration 11 ms Airgap creepage Overvoltage category Pollution degree Rated insulation voltage 75 V Rated impulse withstand voltage 0,8 kV Operating Manual PSEN cs1.13p ATEX | 28 21097-EN-20...
- Page 29 11 mm Width 40 mm Depth 40 mm Weight of safety switch 130 g Weight of actuator 20 g Weight 150 g Where standards are undated, the 2016-10 latest editions shall apply. Operating Manual PSEN cs1.13p ATEX | 29 21097-EN-20...
-
Page 30: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSEN cs1.13p ATEX | 30 21097-EN-20... -
Page 31: Supplementary Data
2) this product must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this product not expressly approved by Pilz may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 32: Order Reference
540323 10 m 540324 30 m 540325 PSEN cable M12-8sf straight, M12, 8-pin, socket straight, M12, 8-pin, pin 2 m 540340 M12-8sm 540341 10 m 540342 20 m 540343 30 m 540344 Operating Manual PSEN cs1.13p ATEX | 32 21097-EN-20... - Page 33 Safety Device Dia- gnostics SDD ES Profibus Profibus fieldbus module Spring-loaded terminal 540132 for Safety Device Dia- gnostics SDD ES Profinet Profinet fieldbus module for Spring-loaded terminal 540138 Safety Device Diagnostics Operating Manual PSEN cs1.13p ATEX | 33 21097-EN-20...
- Page 34 European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) 2014/53/EU on radio equipment The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity...
- Page 35 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
