Summary of Contents for Kaysun KPCF-56 DN5.0

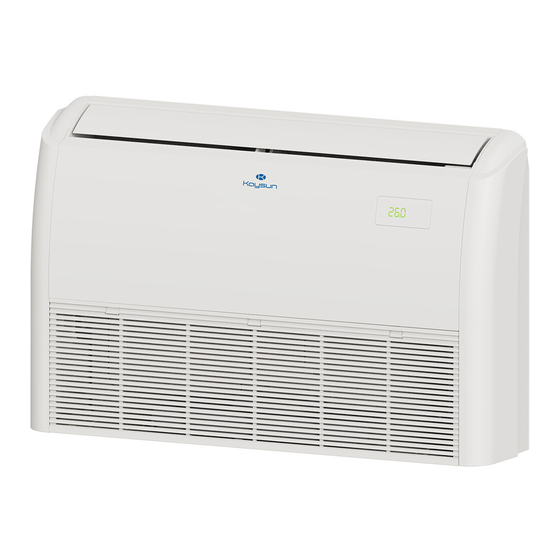

- Page 1 OWNER'S & INSTALLATION MANUAL Ceiling & Floor Indoor Units KPCF-56 DN5.0 KPCF-90 DN5.0 KPCF-140 DN5.0 IMPORTANT NOTE: Read this manual carefully before using the product, and keep it handy for future reference. The product picture on the cover page is for reference only.
-
Page 3: Table Of Contents
Contents About The Documentation About This Document / 1 Safety Instructions / 2 Safety Warning Safety Precautions / 4 Electric Safety Requirements / 5 About The Refrigerant / 6 Operation Operation Precautions / 9 Optimum Operation / 10 Symptoms That Are Not Faults / 11 Display Box / 14 Disposal / 14 Installation... -
Page 5: About The Documentation
About The Documentation About This Document NOTE Make sure that the user has the printed documentation and ask him/her to keep it for future reference. Target audience Authorised installers + end users NOTE This appliance is intended to be used by expert or trained users in shops, in light industry, and on farms, or for commercial and household use by lay persons. -
Page 6: Safety Instructions
Safety Instructions Please thoroughly read and ensure that you fully understand the safety precautions (including the signs and symbols) in this manual, and follow relevant instructions during use to prevent damage to health or property. Safety Signs Indicates a hazard with a high level of risk which, if not avoided, will result in DANGER serious injury. - Page 7 DANGER These instructions are exclusively intended for qualified contractors and authorised installers • Work on the refrigerant circuit with flammable refrigerant in safety group A2L may only be carried out by authorised heating contractors. These heating contractors must be trained in accordance with EN 378 Part 4 or IEC 60335-2-40, Section HH.
-
Page 8: Safety Warning
Safety Warning WARNING CONTENTS Ensure Proper Professional Only Earthing PROHIBITION SIGNS No Laying No Strong Currents No Open Flame; No Acid or Inflammable Thing Fire, Open Ignition Alkali Materials Source and Smoking Prohibited Safety Precautions DANGER In the event of refrigerant leakage, smoking and open flames are prohibited. Disconnect the main power switch immediately, open windows to allow ventilation, keep away from the leakage point, and contact your local dealer or technical support to request a professional repair. -
Page 9: Electric Safety Requirements
CAUTION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. -
Page 10: About The Refrigerant
About The Refrigerant WARNING The following applies to R32 refrigerant systems. Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 11 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 12 i) Do not exceed the maximum working pressure of the cylinder, even temporarily. j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
-
Page 13: Operation
Operation Operation Precautions WARNING If the unit will be not used for a long time, disconnect the main power switch. Otherwise, an accident may occur. The installation height of the air conditioner shall be at least 2.5m above the ground to avoid the following risks: 1. -
Page 14: Optimum Operation
Disposal: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. -
Page 15: Symptoms That Are Not Faults
CAUTION Long-term air outlet at an angle of 30 degrees may cause condensation on the surface of the louver. It is recommended to turn on the anti-condensation function through the remote controller to alleviate this condition. Operating Range Use the unit in the following temperature and humidity ranges for safe and effective operation. Indoor 16~32°C temperature... - Page 16 When the IDU detects high humidity, the air conditioner will adjust the louver angle and the fan speed to prevent condensation and avoid dripping. Anti- condensation The Following Symptoms Are Not System Malfunctions The following phenomena are normal during operation of the air conditioner. They can be solved according to the instructions below or do not need to be solved.
- Page 17 ■ Switching from cooling/heating (not available for cooling only units) mode to fan only mode When the indoor unit reaches the set temperature, the air conditioner controller automatically stops the compressor operation and switches to the fan only mode. When the room temperature rises (in cooling mode) or falls (in heating mode) to a certain level, the compressor is restarted and cooling or heating operation is resumed.
-
Page 18: Disposal
Display Box Display functions: In Standby mode, the main interface displays “---”. When starting up in Cooling or Heating mode, the main interface displays the set temperature. In Fan mode, the main interface displays the indoor temperature. In Dry mode, the main interface displays the set temperature, and when the humidity* is set, the set humidity value is displayed on the wired controller. -
Page 19: Installation
Installation Carefully read this manual before installing the indoor unit.. Installation Precautions WARNING Make sure to carry out the installation according to local legislation. Ask your local dealer or professionals to install the product. This unit must be installed by pqualified persons. Users MAY NOT install the unit themselves; otherwise, faulty operations may cause the risks of fire, electrical shock, injury, or leakage, which could harm you or others or damage the air conditioner. - Page 20 short circuit. Do not store the unit in a humid basement or expose it to rain or water. Make sure the installation base and lifting are robust and reliable; Insecure installation of the base may cause the air conditioner to fall, leading to an accident. Take into full consideration the effects of strong winds, typhoons and earthquakes, and reinforce the installation.
- Page 21 Precautions For Transporting And Lifting The Air Conditioner Before transporting the air conditioner, determine the path that will be used to move it to the installation site. Do not unpack the air conditioner until it is transported to the installation site. When unpacking and moving the air conditioner, must hold the Lifting Lugs and do not apply force to other parts, especially the refrigerant piping, drain pipe and plastic accessories, so as to avoid damaging the air conditioner and causing personal injury.
- Page 22 Recommended Installation Sites It is recommended to install the air conditioner according to the design drawing of the HVAC engineer. The selection principle for the installation site is as follows: Ensure that the airflow in and out of the indoor unit is reasonably organized to form an air circulation in the room. Prevent the air conditioner from blowing directly at the human body.
- Page 23 Layout Installation layout Display panel Upper and lower louver Indoor unit Gas pipe *Power supply cable and earth wires Liquid pipe Air inlet grille Air filter *Connection wires Remote controller (optional) Wired controller (optional) * To be purchased separately on site. NOTE All the optional accessories should be from local dealer.
-
Page 24: Product Installation
Product Installation Product Dimensions Gas pipe(F) Drain pipe(G) Liquid pipe(H) (Unit: mm) Capacity (kW) kW≤5.6 1069 Φ12.7 Φ25 Φ6.35 5.6<kW≤9.0 1284 1199 Φ15.9 Φ25 Φ9.52 9.0<kW≤14.0 1649 1565 Φ15.9 Φ25 Φ9.52... - Page 25 Pipe Routing Direction The refrigerant pipe and drain pipe can be routed from two directions:bottom right and rear right. Refrigerant pipe routing direction Liquid pipe Gas pipe Right rear outlet Right bottom outlet Drainage pipe routing direction Drain pipe Right rear outlet Right bottom outlet...
- Page 26 NOTE When connecting the pipes,only cut the circular holes to avoid foreign objects from entering the machine. Right rear Right bottom Installation Materials Accessories List of accessories Installation And Flare Nut X 2 Drain Pipe X 1 Cable Tie X 8 Thermal Insulation Operation Manual X 1 Pipe X 2...
- Page 27 Accessories Connecting piping (unit: mm) Piping Liquid side Gas side Capacity kW≤7.1 Φ6.35×0.75 Φ12.7×0.75 7.1<kW≤14.0 Φ9.52×0.75 Φ15.9×1.0 For connection of the IDU refrigerant system, it is recommended Remarks to use a soft copper tube (T2M), with the length selected according to the actual situation. Drain pipe Thermal insulation pipe This is used as the indoor...
- Page 28 Installation Operation Check Before Installation Unpacking Check After unpacking, check whether the packing materials are in good condition, whether the accessories that come with the product are The red dot bulges complete, whether the air conditioner is intact, whether the surfaces of Sealing the heat exchanger and other parts are not worn, and whether there are oil stains on the stop valves of the unit.
- Page 29 Pipe Layout The deformed pipe area must not exceed 15%. A protective sleeve should be installed at the wall or floor hole. The weld joint must not be inside the insulation. The drill hole on the external wall must be sealed. ≥...
- Page 30 CAUTION The bending angle should not exceed 90°; otherwise, wrinkles will be formed in the pipe, which can easily break. The bending radius should not be smaller than 3.5D (pipe diameter) and should be as large as possible to prevent the pipe from becoming flattened or crushed. When mechanically bending the pipe, the pipe bender inserted into the connecting pipe must be cleaned.
- Page 31 Handle Yoke Cone Connecting pipe Clamp handle Red arrow mark Nut fastening Connect the indoor unit first, then connect the outdoor unit.Before tightening the flare nut, apply refrigeration oil on the inner and outer surface of the pipe flare (must use refrigeration oil compatible with the refrigerant for this model), and turn it 3 or 4 turns by hand to tighten it.When connecting or removing a pipe, use two wrenches at the same time.
- Page 32 CAUTION When flared joints are reused indoors,the flare part should be re-fabricated. Pipe size (mm) Tightening torque [ N.m (kgf.cm)] Φ6.35 14.2–17.2 (144–176) Φ9.52 32.7–39.9 (333–407) Φ12.7 49.5–60.3 (504–616) Φ15.9 61.8–75.4 (630–770) Φ19.1 97.2–118.6 (990–1210) CAUTION Excessive torque will damage the flared mouth and nut, and too small torque cannot tighten the nut, which will cause refrigerant leakage.
- Page 33 Leak Detection The leak test must satisfy the specifications of EN378-2. 1. To check for leaks: Vacuum leak test Evacuate the system from the liquid and gas piping to –100.7 kPa (–1.007 bar)(5 Torr absolute) for more than 2 hours. Once reached, turn off the vacuum pump and check that the pressure does not rise for at least 1 minute.
- Page 34 2. Reasons why refrigerant piping shall be insulated (1) The gas pipes and liquid pipes can become extremely hot or cool while in operation. Therefore, they should be insulated. Otherwise, the cooling and heating effects will be seriously impacted, and the compressor may become burnt.
- Page 35 b. Pipe connectors shall be properly insulated. No gaps shall be left here Unit CAUTION No gaps shall be left at the place where insulation materials connect. If the connecting sections of insulation materials are pulled too much, or wrapped too tightly, these sections are likely to shrink and leave gaps, causing condensation and dripping.
- Page 36 NOTE When installing the insulation pipe on site, please cut it according to the actual needs. (Either method (a) or (b) is OK. Method (c) is incorrect. There must be no gap between the insulation pipe and connecting pipe.) Not connected Clearance Drain Pipe Installation CAUTION...
- Page 37 Water outlet pipe of indoor unit Drain pipe from the accessory package Connection method of the drainage pipe (Unit: mm) • Method to discharge water with the natural drainage outlet: Air discharge The pipe faces downward to avoid intake of foreign matters. Vertical condensate pipe CAUTION Requirements for slope of the drainage pipe:...
- Page 38 Installation requirement for drainage pipe The drainage pipe must be inclined downward (1/100 or above) to avoid condensate water flow. Drain pipe Downslope Downward PVC pipe (inner diameter 15mm) or rigid PVC pipe (VP-16)* Use PVC adhesives The end of the Upward Water accumulates drain pipe is...
- Page 39 Extend the drain pipe. To extend the length of a drain pipe, you need to purchase an extension drain pipe locally. Make sure the extension portion of the drain pipe indoors undergoes heat insulation treatment. Extended portion of the drainage pipe Drain pipe of indoor unit Insulation casing (purchased locally) Water outlet pipe of...
- Page 40 NOTE The number and type of cables may vary from model to model. Both ends of the cable are different, so make sure the cable end is correct before binding the pipes. The binding shall be seamless and neat in appearance. Install sealant and wall hole sleeve cover.
-
Page 41: Electrical Connection
Electrical Connection DANGER The power supply must be cut off before any electrical work is carried out. Do not conduct electrical work when the power is on; otherwise, it may cause serious personal injury. The air conditioning unit must be earthed reliably and must meet the requirements of the local country/ region. - Page 42 Electrical Characteristics Electric specifications of the indoor unit Indoor Fan Motor(W) Capacity Rated power Frequency Voltage (kW) output (Hz) 0.43 0.34 220~240 0.75 0.60 14.0 1.25 1.00 NOTES: MCA: Min. Circuit Amps. (A), which is used to select the minimum circuit size to ensure safe operation over a long period of time.
- Page 43 Schematic Figure Of The Main Terminal Blocks Of Main Control Board CN22 CN10 CN18 CN55 Terminals of remote Switch module M1 M2 X1 X2 D1(X) D2(Y) switch signal Power supply cable and Terminals of Communication terminals Terminals of earth line terminals strong current alarm signal sterilization...
- Page 44 CAUTION Power supply cable must be routed separately from the other cable such as commucation wiring and display box commucation wiring. The strong and weak current wires must be separated. Power supply cable connection Connection between the power supply cable and power supply terminal Main control board The power supply terminal of the indoor unit is fixed on the...
- Page 45 The connected power supply cable should be secured with a wire clamp to prevent loosening, as shown in the right figure. Power supply cable system connection Power supply cable system connection depends on the methods of communication between the indoor unit and outdoor unit.
- Page 46 Indoor units are provided with unified power supply*, which are wired as follows: 1. HyperLink (M1M2) communication with the unified power supply: Power supply for indoor unit L1+La+Ln ≤ 2000m Wire diameter: 0.75mm2 Communication wires × × × × Circuit breaker Power supply cable Distribution box Distribution box...
- Page 47 CAUTION When the indoor units are provided with a unified power supply, if the indoor units in the same refrigerant system are V8 indoor units, then indoor units and outdoor unit can communicate either via HyperLink (M1M2) with a unified power supply, or via P/Q. If some of the indoor units in the same refrigerant system are non-V8 series, then indoor units and outdoor unit can only communicate via P/Q/E communication.
- Page 48 Table of selection of communication wiring diameter One controller to one indoor One-to-more unit (Two (centralized Function Indoor unit and outdoor unit communication controllers to controller) one indoor unit) Communication Communication P/Q/E HyperLink (M1M2) HyperLink (M1M2) communication communication communication communication X1X2 D1D2 Item...
- Page 49 Indoor unit and outdoor unit communication HyperLink (M1M2) communication (with independent power supply) Single unit: HyperLink (M1M2) communication is a new type of indoor unit and outdoor unit communication technology. When the indoor units are provided with independent power supplies, use 2×1.5mm2 communication cables.
- Page 50 CAUTION If the total length is less than or equal to 200m and the total number of indoor units is less than or equals to 10 sets, the electronic expansion valve in indoor unit can be powered and controlled by the master outdoor unit.
- Page 51 System: The HyperLink (M1M2) communication wiring with a unified power supply between indoor unit and outdoor unit can reach a length of up to 2000 meters, supporting any topology connection. The following figure shows a serial connection: Power supply for indoor unit Communication wires ×...
- Page 52 System: The maximum total length of the P/Q communication cable of the Indoor unit and outdoor unit can be up to 1200m, and can be connected in serial, as shown in the figure below: Power supply for indoor unit Communication wires ×...
- Page 53 CAUTION When P/Q or P/Q/E communication is used, the indoor units need to be powered uniformly. Either P/Q, P/Q/E communication or HyperLink (M1M2) communication can be selected. If it is required for indoor units to have independent power supplies, then HyperLink (M1M2) communication must be selected.
- Page 54 D1D2 communication wiring connection (limited to outdoor unit and system configuration) Achieving one-to-multiple and two-to-multiple functions of the indoor unit wired controller through D1D2 communication (a maximum of 16 sets) D1D2 communication is 485 communication. The one-to-more and two-to-more functions of the indoor unit wired controller can be achieved through D1D2 communication, as shown in the figure below: Indoor unit 2#...
- Page 55 External boards connection (limited to outdoor unit and system configuration) The external boards are connection module outside the main control board, including Switch module, 1# Expansion board and 2# Expansion board. Connection of Display Box The display box is connected to the main control board through a 4-core cable, and is connected to the "CN30"...
- Page 56 Alarm signal and Sterilization module Refer to the following figure for the wiring of alarm signal and Sterilization module. CAUTION Main CN22 control board Output voltage: 220 VAC; The output voltage is 220-240V~. Maximum output power: 220 W Strong current sterilization module Alarm signal output Output voltage: 220 VAC;...
-
Page 57: Error Codes
Error Codes Error Codes And Definitions The error code is displayed on the display box and the wired controller display. Definition Error code Digital display Emergency stop DANGER R32 refrigerant leaks, requiring shutdown immediately Outdoor unit fault Interlocking control Heat Recovery Ventilation Unit fault( in-series application) The Humidity Unit fault Interlocking control Heat Recovery Ventilation Unit fault(non-serial application) The AHU Kit slave unit fault... - Page 58 Abnormal communication between the indoor unit main control board and fan drive board Abnormal communication between the indoor unit and wired controller Abnormal communication between the indoor unit and Wi-Fi Kit Abnormal communication between the indoor unit main control board and display board Abnormal communication between the AHU Kit slave unit and master unit Number of AHU Kits is not the same as the set number...
- Page 59 Tcp (pre-cooled fresh air temperature sensor) short-circuits or cuts off Tph (pre-heated fresh air temperature sensor) short-circuits or cuts off TA (outlet air temperature sensor) short-circuits or cuts off Outlet air humidity sensor fault Return air humidity sensor fault Upper wet bulb sensor fault Lower wet bulb sensor fault R32 refrigerant leakage sensor fault T2A (heat exchanger inlet temperature sensor) short-circuits or cuts off...
- Page 60 Motor startup failure Motor blocking protection Speed control mode setting error Phase lack protection of motor Operating Status Codes And Definitions (Non-error) Definition Code Digital display Oil return or preheating operation Self-cleaning Mode conflict Defrosting Static pressure detection Remote shutdown Indoor unit backup operation outdoor unit backup operation Main control program upgrading...
- Page 61 Spot Check Description Use the bi-directional communication wired controller (for example, WDC3-86S) to activate the spot check function in the following steps: Check No. On the main page, hold " " and "▲" for 2s to enter the query page. The wired controller displays Spot check "CC". Press "▲" or "▼" key to select the indoor parameters...
-
Page 62: Test Run
Test Run Checklist Before Test Run After the installation of the unit, check the items listed below first. CAUTION Do not power on the system. Pass/Fail Check list Read the complete installation and operation manual. Installation Check that the units are properly installed, to avoid abnormal noises and vibrations when starting up the units. Compressor and others shipping brackets removed. - Page 63 Pass/Fail Check list Oil leak Check if there is oil leaking from the compressor and piping. If there is an oil leak, try to repair the leak. If the repair is not successful, please call the local agent. Refrigerant leak Check for refrigerant leaks inside the unit.
-
Page 64: Safety Warning
Maintenance and Service Safety Warning WARNING For safety reasons, always turn off the air conditioner and turn off the power before cleaning the air conditioner. Do not disassemble or repair the air conditioner by yourself; otherwise, it may cause fire or other hazards. Only professional service personnel can carry out the maintenance. - Page 65 Cleaning The Air Filter CAUTION Air filters can be used to remove dust or other particles from the air, and if clogged, the effectiveness of the air conditioner will be greatly reduced. Therefore, be sure to clean the air filter frequently when using it for an extended period.If it is installed in a place with a lot of dust, it is recommended that you clean the filter once a month.
- Page 66 CAUTION To avoid deformation of the filter, do not use fire or a burning appliance to dry the filter. If the filter is dirty, use a soft brush and neutral detergent to clean it, then shake off the water and dry it in a cool place.
-
Page 67: Service
Service Step To Dismantle The Electric Control Board Remove the air inlet grille. Loosen the two screws, remove the electric control box and repair it. electric control box Step To Dismantle The Fan casing、Motor And Wind Wheel Remove the air inlet grille. - Page 68 Remove upper propeller casing. upper propeller casing Horizontally remove the motor and wind wheel;loosen the fixing screws between the motor and wind wheel,and perform maintenance on the motor and wind wheel. wind wheel motor Remove lower propeller casing and perform maintenance. lower propeller casing...
- Page 69 Points of attention for volute assembly: slot and tongue, limit slot and side wall alignment and then buckle; Check again whether the limit slot, positioning column and buckle are installed in place, and the limit tongue should cover the outside of the volute. positioning column limit slot tongue...
- Page 70 Remove the pipe clamping plate. pipe clamping plate pipe clamping plate Remove the evaporator and perform maintenance. evaporator...
- Page 71 16126000008628 V.A...
