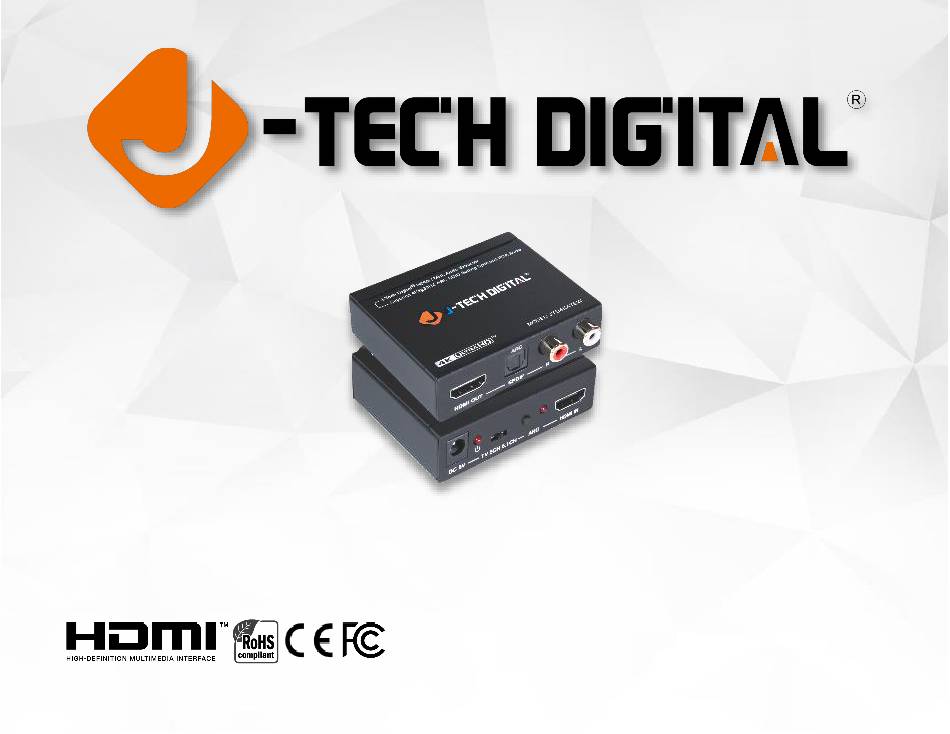

- Page 1 User manual HDMI 4K Audio Extractor with hdmi-arc JTD-152 | jtd4katsw J-TECH DIGITAL INC 12803 park one drive Sugar land, tx 77478 TEL: 1-888-610-2818 e-mail: Support@jtechdigital.com...
- Page 2 Thank you for purchasing the JTD4KATSW HDMI Audio Extractor. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. I. Introduction The JTD4KATSW HDMI audio extractor allows you to extract the audio signal from an HDMI source device or HDMI-ARC enabled TV and transmit it to a separate audio processing device like external speakers, soundbars or wireless headphones.
- Page 3 III. Packaging 1 x JTD4KATSW HDMI Extractor 1 x 5V1A DC Power adapter 1 x User Manual IV. Specifications Frequency Bandwidth 297 MHz | 10.2 Gbps Input Port 1 x HDMI (Female Type-A) Output Ports 1 x HDMI (Female Type-A) | 1 x Toslink | 1 x RCA HDMI Audio Output PCM 2.0/5.1/7.1CH | Dolby 5.1 | DTS5.1 | Dolby TrueHD | DTS-HD Power Supply...
- Page 4 Weight 4.41 Oz Operating Temperature 32˚F - 104˚F Storage Temperature -4˚F - 140˚F V. Operation Controls and Functions HDMI OUT: Use this port to connect an HDMI cable from your extractor to your HDTV or display. SPDIF OUT: Use this port to connect an optical S/PDIF cable to an audio processing device.
- Page 5 R: Analog audio Right channel output (RED). L: Analog audio Left channel output (WHITE). DC 5V IN: Use this port to connect the provided power adapter. POWER LED: LED illuminates when the device is connected to power supply. EDID Switch: Use this switch to select 2.0CH | 5.1CH | or TV EDID modes. “TV” EDID mode passes connected display’s audio EDID to the source device.
- Page 6 VI. Application Example | Extract audio from DVD/Blu-ray Player...
- Page 7 VII. Application Example | Extract audio from HDMI-ARC TV...
- Page 8 VIII. Warranty If your product does not work properly because of a defect in materials or workmanship, J-Tech Digital (referred to as "the warrantor") will, for the length of the period indicated as below, (Parts (1) Year) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
- Page 9 Extended Warranty With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. Total product warranty with the extended period will equate to a total of 18 months of warranty from the date of purchase.
- Page 10 –...
