- Page 1 Operating instructions Website:www.jtechdigital.com TollFree:1-888-610-2818 Email:support@jtechdigital.com USER MANUAL J-Tech Digital® Audio Extractor Single 4K Model: JTD4KATSW JTD-ID: 152...
- Page 2 Please keep this manual for future reference. The JTD4KATSW HDMI audio extractor allows you to extract the audio signal from an HDMI I. Introduction connection and transmit it to your other audio devices, including external speakers, soundbar and wireless headphones.
- Page 3 1 x HDMI Audio Repeater III. Package 1 x 5V/1A DC Power Adapter 1 x Operation Manual Frequency Bandwidth 297MHz[10.2Gbps] IV. Speci�ications Input Port 1 x HDMI Female ports. Output port 1 x HDMI Female port,1x Toslink,1x RCA HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certi�ied)

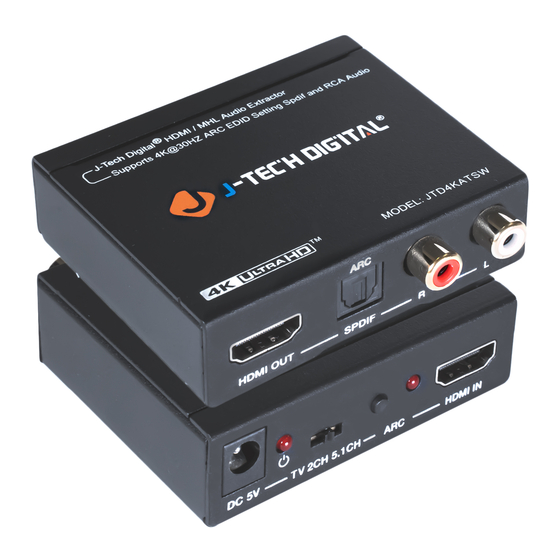

- Page 4 Dimensions (in) 2.36(w) X 2.75 (d) X 0.78 (h) Weight (g) 125 g Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F V. Operation controls and Functions HDMI OUT: Use this port to connect an HDMI cable from the extractor to your HDTV or monitor.
- Page 5 SPDIF OUT: Use this port to connect an optical �iber cable to an audio ampli�ier. Analog audio Right channel output (RED). Analog audio Left channel output (WHITE). DC 5V IN: Used to connect power interface to AC wall outlet. POWER LED: Indicates the device is receiving power. EDID Switch: Use this switch to select either 2.0CH, 5.1CH, or TV EDID modes.
- Page 6 VI. Application Example...
- Page 7 Specifications, pictures & software described herein are subject to change without prior notification. Only use the provided power supply when operating this unit. J-Tech Digital® is not responsible for any damage due to customer neglect. All trademarks are the sole property of their respective companies.
