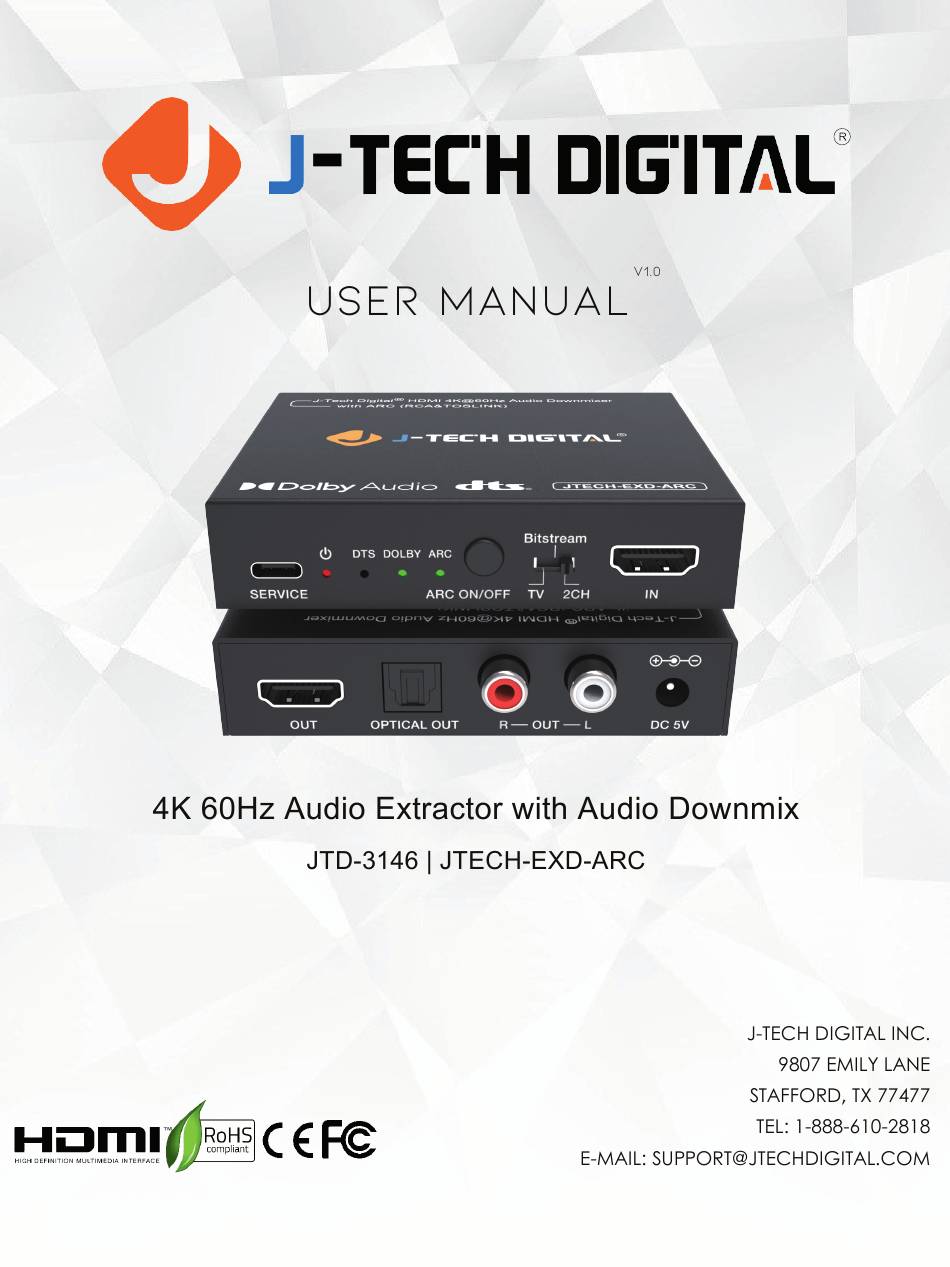

J-Tech Digital JTECH-EXD-ARC User Manual

4к 60hz audio extractor with audio downmix

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JTECH-EXD-ARC and is the answer not in the manual?

Questions and answers

Summary of Contents for J-Tech Digital JTECH-EXD-ARC

  • Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3146 to view and access detailed digital resources regarding this unit.
  • Page 3: Safety Instructions

    Safety Instructions: • Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference. • To prevent electric shock, do not attempt to open the product. • Only qualified personnel should perform any repairs or maintenance. •...
  • Page 4: Table Of Contents

    Table of Contents 1. Introduction.................... 2. Features....................3. Package Contents................. 4. Specifications..................5. Operation Controls and Functions............6. Application Example................7. Maintenance..................8. Warranty....................9. Mail-In Services..................10. Limited Warranty Limits and Exclusions..........
  • Page 5: Introduction

    1. Introduction The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI source or TV ARC to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bit- stream audio down-mix to analog stereo output and keeps optical and HDMI out audio passthrough.
  • Page 6: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP 2.2/1.x HDCP Compliance Video Bandwidth 18Gbps Video Resolution Up to 4K2K@50/60Hz (YUV444) HDMI OUT: PCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master, DTS:X Audio Formats Optical (S/PDIF): PCM 2.0, Dolby 5.1, DTS 5.1 Stereo(L/R): PCM 2.0 Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0...
  • Page 7: Operation Controls And Functions

    5. Operation Controls and Functions Bitstream DTS DOLBY ARC OPTICAL OUT DC 5V SERVICE ARC ON/OFF 1 2 3 4 5 6 Name Function Description SERVICE USB-C port for software upgrade. Power LED The green power LED is on when the unit is powered on. When the audio format is detected as DTS 2.0/5.1, the green DTS LED DTS LED is on, otherwise it goes off.
  • Page 8: Application Example

    6. Application Example DVD or Blu-ray Player Bitstream Bitstream DTS DOLBY ARC DTS DOLBY ARC SERVICE SERVICE ARC ON/OFF ARC ON/OFF OPTICAL OUT OPTICAL OUT DC 5V DC 5V Power Supply 2.0 Speakers Audio Amplifier The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 9: Maintenance

    7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b)
  • Page 10: Limited Warranty Limits And Exclusions

    10. Limited Warranty Limits and Exclusions This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, mis-adjustment of consumer controls, improper maintenance,...
  • Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...

This manual is also suitable for:

Jtd-3146
