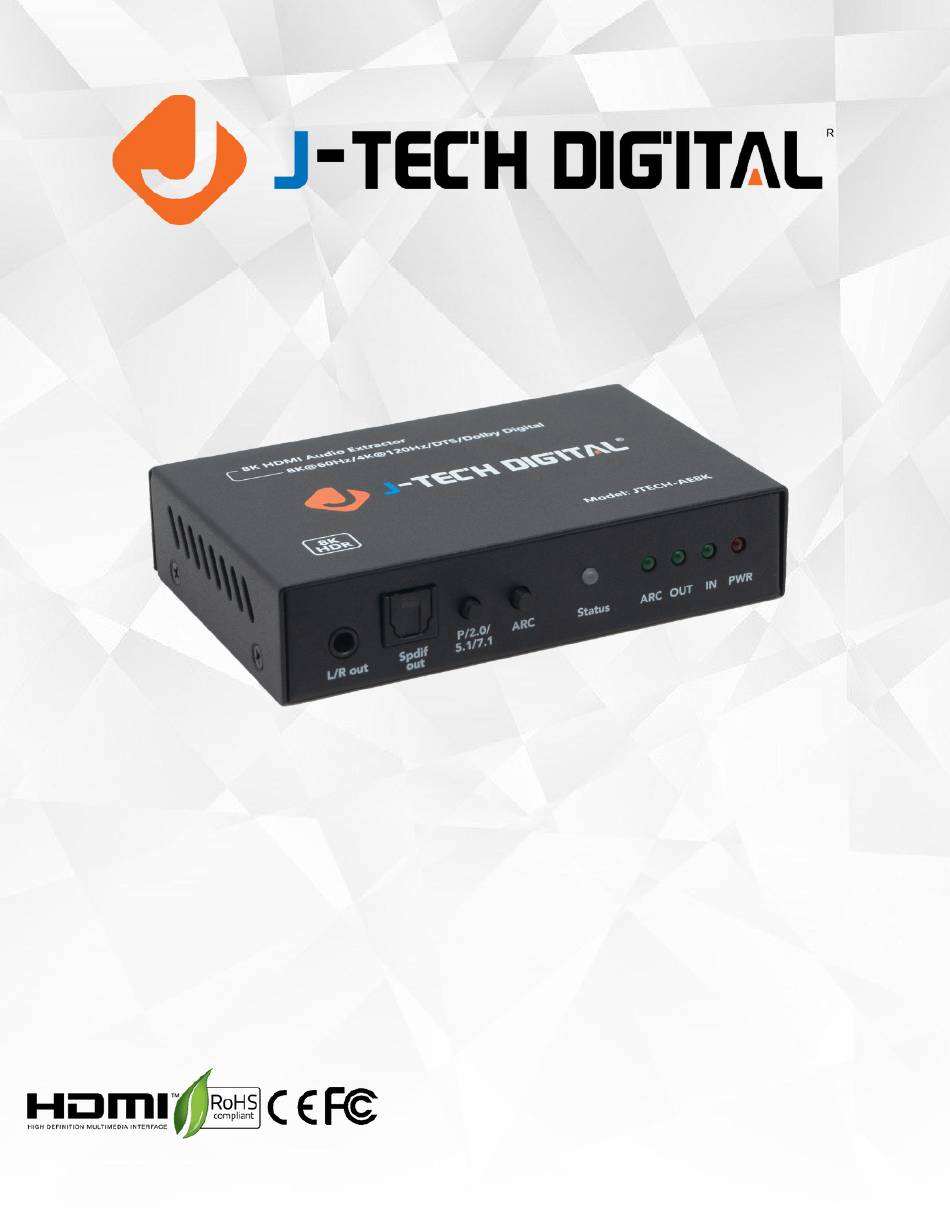

- Page 1 V1.0 USER MANUAL 8K HDMI Audio Extractor JTD-302 | JTECH-AE8K J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/302 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Introduction Features Specifications Package Contents Panel Description Typical Application Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: Introduction
1. Introduction The JTECH-AE8K audio extractor can help users extract an audio signal from an incoming HDMI signal, and send it to an external audio system via HDMI (out), Optical, and/or RCA. It supports up to 8K 60Hz resolution, and supports all of HDMI 2.1 features while being compliant with HDCP 2.3. Easily incorporate the JTECH-AE8K audio extractor within your setup today, and take advantage of the plug and play functionality to send audio to your favorite sound devices. -
Page 6: Package Contents
4. Package Contents (1) x JTECH-AE8K audio extractor (1) x Power Adapter DC 12V/1A (1) x 3.5mm to RCA cable (1) x User Manual 5. Panel Description... -
Page 7: Typical Application
6. Typical Application 7. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 8. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace... -
Page 8: Mail-In Services
required for Limited Warranty service. 9. Mail-In Service When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. 10. - Page 9 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
