Summary of Contents for J-Tech Digital JTD-613

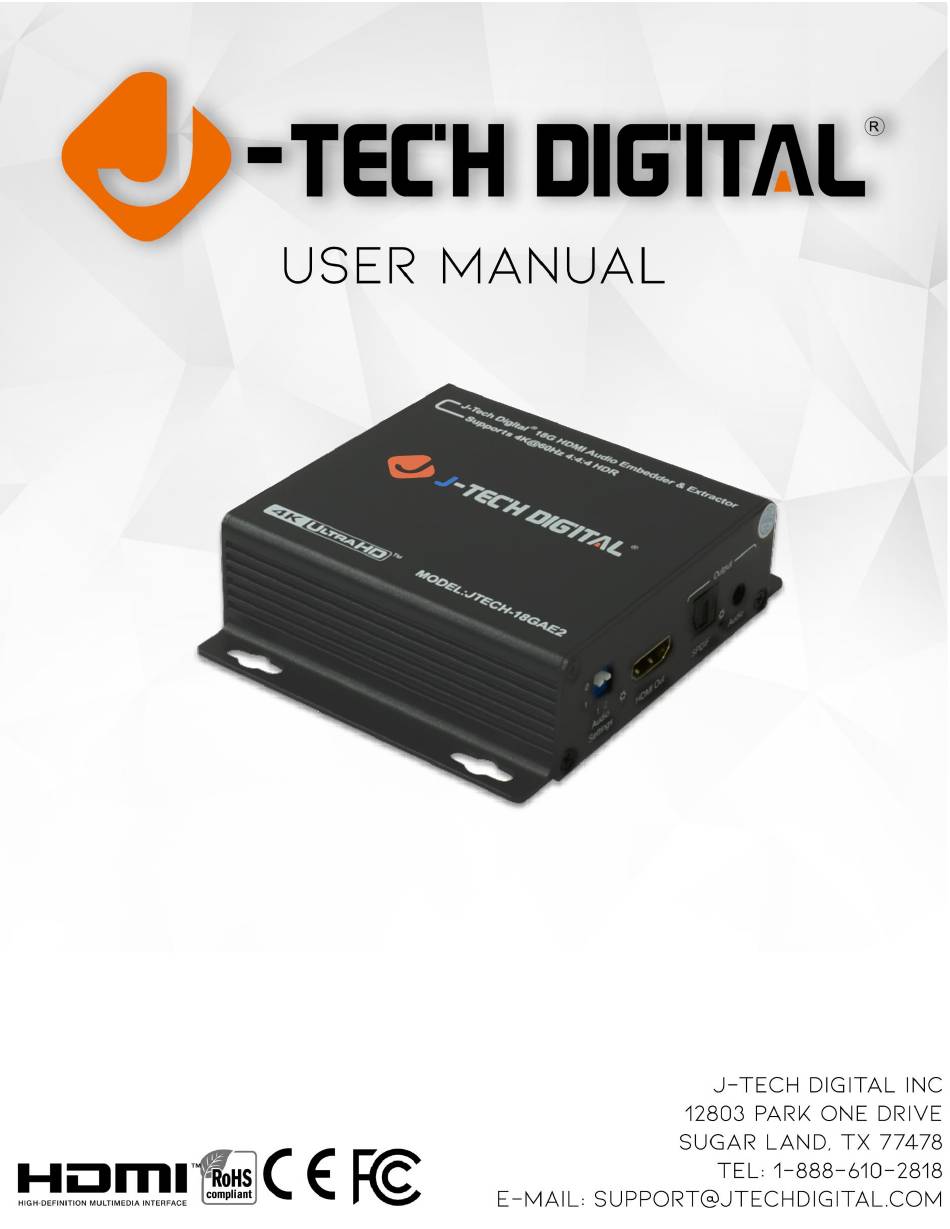

- Page 1 – – HDMI 2.0 Audio Embedder & Extractor JTD-613 | JTECH-18GAE2...
- Page 2 (1) x J-Tech Digital JTECH-18GAE2 (1) x User Manual (1) x 5V DC Power Supply NOTICE J-Tech Digital Inc® reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. SPECIFICATIONS Operating Temperature Range 23°F to 104℉...
- Page 3 PANEL DESCRIPTIONS Front Panel ① Micro USB Port for Firmware Upgrades ② Audio Status Indicator ③ Audio Input Port (3.5mm Female) ④ HDMI Input Port ⑤ Power Status Indicator ⑥ DC5V Power Adapter Port Back Panel ① Audio Configuration Dip Switches ②...
- Page 4 CONNECTING AND OPERATING 1) Connect the HDMI source device (Game Console / Cable Box / Streaming Device) into HDMI Input Port of JTECH-18GAE2. 2) Connect the HDMI display device (HDTV / Projector) into HDMI Output Port of JTECH-18GAE2. 3) Connect SPDIF audio cable or analog audio cable to input port of audio processor (Soundbar / AV Receiver) and corresponding audio output port of JTECH-18GAE2.
- Page 5 WARRANTY If your product does not work properly because of a defect in materials or workmanship, J-Tech Digital (referred to as "the warrantor") will, for the length of the period indicated as below, (1 Year) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new...
- Page 6 RESPONSIBILITY. EXTENDED WARRANTY With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. Total product warranty with the extended period will equate to a total of 18 months of warranty from the date of purchase.
