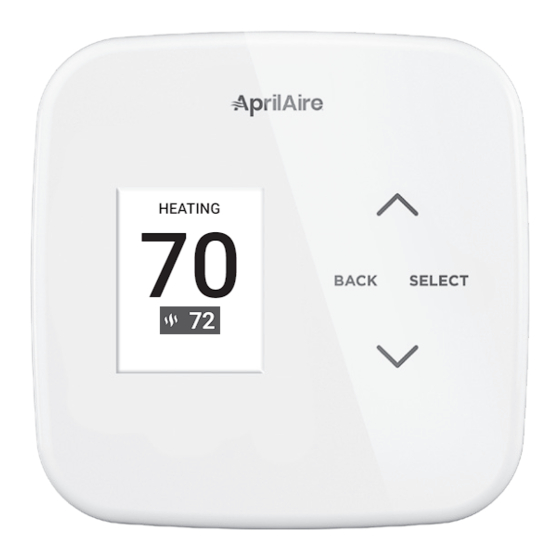

- Page 1 Thermostats HEATING OWNER’S MANUAL Model S84N 1H1C Conventional 1 Heat / 1 Cool Thermostat Model S84N SU Single Stage Universal Thermostat READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ABOUT YOUR NEW THERMOSTAT ABOUT YOUR NEW THERMOSTAT 3 INDOOR AIR QUALITY FUNCTIONS 12 Thermostat Features 3 Event-Based™... -
Page 3: Quick Reference To Controls & Display
QUICK REFERENCE TO CONTROLS & DISPLAY MAIN MENU HOME SCREEN Main Menu Mode UP ARROW EQUIPMENT STATUS Main Menu Hold Mode BACK HEATING Schedule ROOM TEMPERATURE Hold Heat Blast Schedule Air Cleaning Heat Blast SELECT (OPENS ROOM MENU FROM Settings TEMPERATURE HOME SCREEN) HOLD 5:00... -
Page 4: Screen Saver
SCREEN SAVER POWER OPTIONS Starts 45 seconds after inactivity, press any button to wake the screen NOTE: Screen saver is not The thermostat is dual power. It can either use 24 VAC, 2 “AA” batteries or both (to provide available on thermostat installations that are not connected to C wire and run on battery power only backup power for the clock) Batteries are optional if the thermostat was connected to AC power when installed. -
Page 5: Operation
OPERATION CHANGE TEMPERATURE SETTING 1. From the Home screen press adjust the current temperature setting SELECT SYSTEM MODE 2. The temperature setting will enlarge during (EM HEAT / HEAT / COOL / AUTO / OFF) adjustment HEATING 3. The temperature setting will take effect 3 1. -
Page 6: Select Fan Setting (Auto / On / Circulate)
SELECT FAN SETTING (AUTO / ON / CIRCULATE) MAINTENANCE REMINDERS When the fan mode is changed during a program Maintenance reminders are set up by the installer to indicate when the equipment is due for event, it remains in that mode until the next event service. -
Page 7: Indoor Air Quality Functions
3. Modes (persistent) INDOOR AIR QUALITY FUNCTIONS Auto: The air cleaner will run a minimum of 30 minutes every hour The air cleaner will monitor Air Cleaning the amount of time your heating and cooling 3 Hrs EVENT-BASED™ AIR CLEANING (IF INSTALLED) 24 Hrs system runs;... -
Page 8: Program Schedule And Holds
The times and temperatures shown in TABLE 1 are the defaults The start time and temperature PROGRAM SCHEDULE AND HOLDS of each section can be changed to fit your schedule. We recommend these settings, since they can reduce your heating/cooling expenses The fan program is pre-set to Auto for all events SET TIME AND DATE TABLE 1 –... -
Page 9: How To Modify Program Schedules
HOW TO MODIFY PROGRAM SCHEDULES 1. From the Schedule option in the 5. Adjust Leave details and/or Leave Return Sleep Main Menu, you can turn the select Next to proceed Next Next Next schedule On or Off, and make 6. Adjust Return details and/or changes to the schedule Start 8:00a... -
Page 10: Heat Blast
HEAT BLAST® (IF INSTALLED) SETUP MENU Heat Blast® will raise the current room temperature 3°F to 5°F based on the installer set-up, and then resume normal operation TABLE 2 – USER SYSTEM SETTINGS TABLE To activate Heat Blast, select Heat Blast from the Menu, and use the Select button to set the Clock toggle to ON Set time... -
Page 11: Limited Warranty 20
WARRANTY REGISTRATION Visit us online at www.aprilaire.com to register your AprilAire product If you do not have online access, please mail a postcard with your name, address, phone number, email address, product purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, PO Box 1467, Madison, WI 53701 Your warranty registration information will not be sold or shared outside of this company.
