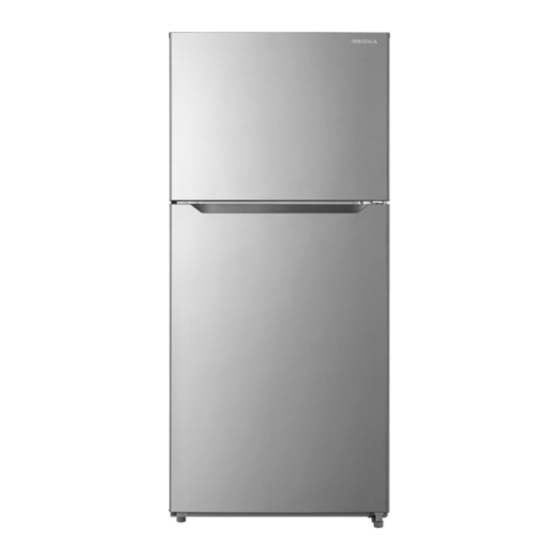

- Page 1 USER GUIDE 20.5 Cu. Ft. Top Mount Refrigerator NS-RTM20SS3 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY .........26 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RTM20SS3 represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance. www.insigniaproducts.com... -
Page 3: Important Safety Instructions
20.5 Cu. Ft. Top Mount Refrigerator Important Safety Instructions WARNING WARNING: Risk of fire/flammable materials. THIS • appliance is intended to be used in household and other residential type environments. THIS • appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and... - Page 4 WARNING • : Connect to potable water supply only. (Suitable for ice making machine) • Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator). (Suitable for products with locks) •...
- Page 5 20.5 Cu. Ft. Top Mount Refrigerator • The gaps between refrigerator doors and between doors and refrigerator body are small, do not put your hand in these areas to prevent from squeezing fingers. Please be gentle when closing the refrigerator door to avoid falling articles.
-
Page 6: Features
SAVE THESE INSTRUCTIONS Features • 20.5 cu. ft. capacity • Glass shelves • Two humidity-controlled crisper drawers • LED lighting • Frost free • Reversible door with self-closing hinge • Ice-maker ready (compatible with NS-ICEF2W2) Package contents • 20.5 cu. ft. top mount refrigerator •... -
Page 7: Setting Up Your Refrigerator
20.5 Cu. Ft. Top Mount Refrigerator Setting up your refrigerator Before using your refrigerator Remove all packing materials, including bottom cushions, foam pads, and tape inside of your refrigerator. Tear off the protective film on the doors and the refrigerator body. Wipe the cabinet with a mild detergent and warm water, then wipe dry. - Page 8 • To level your refrigerator, rotate the front leveling feet clockwise (to raise) the refrigerator or counter-clockwise (to lower). Note: Having someone push against the top of the refrigerator helps to take some weight off the leveling foot, making it easier to adjust. Lower Raise www.insigniaproducts.com...
-
Page 9: Providing A Proper Power Supply
Installing an optional ice maker The refrigerator comes set up for ice maker installation. This refrigerator is compatible with the Insignia NS-ICEF2W2 ice maker (not included). Reversing the door position Based on the location where you plan to use your refrigerator, you may find it more convenient to reverse the position of the door. -
Page 10: Reversing The Door Position
Reversing the door position Note: Left-opening model shown for illustration purposes. Parts included with the hinge kit: Upper door self-locking Center left hinge Left top hinge cover block Top left hinge Left door-open Hole caps (2) stopper Parts you’ll use that are already mounted on the door (as shipped): Lower door Door block Bottom hinge... - Page 11 20.5 Cu. Ft. Top Mount Refrigerator Note: Images show a refrigerator that opens on the left side. Your refrigerator may open on the right side. Lift the freezer door up and away from your refrigerator. Unscrew the three screws holding the center hinge, remove the hinge, then lift the refrigerator door up and away from your refrigerator.
- Page 12 Unscrew the hinge pin from the bottom hinge and reattach it to the other hole in the hinge pin, then secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously. Hinge pin Hinge pin Remove the hole cap and plastic bushings from the top of the freezer and refrigerator doors.
- Page 13 20.5 Cu. Ft. Top Mount Refrigerator Insert the hole cap and plastic bushings into the opposite sides (from where you removed them) of the freezer and refrigerator doors. Hole cap Plastic bushings Remove the door block from the bottom of the refrigerator door and attach it to the other side.
- Page 14 Attach the upper door self-locking block and the door-open stopper to the side of the freezer door where the hinge will be. Use the parts from the hinge kit. Freezer door Upper door self-locking block Door-open stopper Remove the old upper door self-locking block and the door-open stopper (do not remove the parts attached in step 10).
- Page 15 20.5 Cu. Ft. Top Mount Refrigerator Put the ambient temperature sensor in the hole on the right side top of your refrigerator, then cover the screw holes with the cover plate you previously removed. Top hinge cover Top hinge Add covers to the screw holes and hinge pivot. www.insigniaproducts.com...
-
Page 16: Using Your Refrigerator
Using your refrigerator After plugging in your refrigerator, you’ll hear a beep and the refrigerator starts normal operation with the refrigerator and freezer set to the mid-range temperatures. Note: If the refrigerator is unplugged, wait 10 minutes before restarting it to prevent damage to the compressor. -
Page 17: Using Your Freezer Compartment
20.5 Cu. Ft. Top Mount Refrigerator Using the refrigerator shelves The two glass shelves in the refrigerator compartment can be adjusted to various heights, as needed. To remove a shelf, lift the front of the shelf, then gently pull it forward until the shelf comes clear of the shelf guides. -
Page 18: Dismissing The Open Door Alarm
Hold the door tray with one hand, then use the other hand to tap the bottom of the tray up several inches. Align the door tray where you want to place it, then push it down into place. Dismissing the open door alarm When the refrigerator or freezer door is left open for two minutes, a buzzer sounds until you close the door. -
Page 19: Cleaning And Maintaining Your Refrigerator
20.5 Cu. Ft. Top Mount Refrigerator Cleaning and maintaining your refrigerator Your refrigerator is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the cabinet with a mild detergent and warm water, then wipe dry. Do this periodically to keep your refrigerator looking new. Caution: •... -
Page 20: Shutting Down Your Refrigerator For Several Months
Remove as many items as you can at one time, and close the door as soon as possible. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. To obtain replacement parts outside of the product warranty, visit https://partstore.encompass.com and search for the product model number. -
Page 21: Troubleshooting
20.5 Cu. Ft. Top Mount Refrigerator Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. Understanding error codes When a fault occurs, the refrigerator alarm sounds and the fridge and freezer LEDs light up to show what the error is. Press ALARM OFF to turn off the alarm. LED 1 LED 3 LED 4... -
Page 22: Common Problems And Solutions
Common problems and solutions PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The refrigerator The refrigerator is unplugged. Make sure that the refrigerator is does not operate. plugged in and that the plug is pushed completely into the outlet. The voltage is too low. Make sure that the refrigerator is plugged into a 110V–120V, 60Hz power outlet. - Page 23 20.5 Cu. Ft. Top Mount Refrigerator PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Food in the The door has been opened too Make sure that the door is refrigerator often or was not closed properly. closed properly. compartment is You have just added a large Allow time for the new food to not cold.
- Page 24 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The exterior of In the insulated walls of the This is normal. The longer your the refrigerator is refrigerator there is a heat refrigerator runs the warmer the warm. exchanger coil. This produces sides and top will get. heat.
-
Page 25: Specifications
20.5 Cu. Ft. Top Mount Refrigerator Specifications Dimensions (H × W × D) 66 5/8 × 29 3/4 × 32 7/8 in. (169.2 × 75.5 × 83.5 cm) Weight Net weight: 161 lbs. (73 kg) Gross weight: 189.6 lbs. (86 kg) Power requirements 115V~60Hz Current... -
Page 26: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 27 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 28 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2023 Best Buy. All rights reserved. V1 ENGLISH 22-0362...
