Jofran 1511-380KD Manual

•
JOFRAN
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment
Parts Key
No Code
1511-380KDP40
1
2
1511-380KDP41
3
1511-380KDP42
4
1511-380KDP01F
FABRIC CARE INSTRUCTIONS
REGULAR CARE
Wipe gently using a clean soft damp cloth
and mild detergent DO NOT SATURATE
FABRIC CONTENT: 100% Polyester-Cleaning code W
I DETAIL Al I DETAIL Bl
"'
I S TE P21
-Carefully turn chair upside down and attach each Leg to the
front corners of the Complete Seat. Place Flat Washer, Lock
Washer and Nut on each leg bolt, tightening the Nut on each Leg
using provided Key Wrench. (See Detail C).
-Be sure to level the chair prior to tightening all the nuts/screws
MADE IN VIET NAM
INC.
Q ty Description
lPc Chair Back
Complete Seat
lPc
Front Leg
2Pcs
4Pcs
Floor Glide
I S TE P
-Carefully lay Chair Back flat on a smooth flat surface to prevent
scratches.
-Attach Complete Seat to Chair Back by inserting a Flat Washer, Lock
Washer and Short screw into each of the hole on the back of the seat.
Tighten screws with provided Allen Key by turning clockwise until
secure. (See Detail A).
-Insert a Flat Washer, Lock Washer an Long screw into each of 2 holes
in the Complete Seat corners. Tighten screws with provided Key
Wrench. (See Detail B).
"'
'
ASSEMBLY INSTRUCTIONS &
PARTS IDENTIFICATION
MODEL# 1511-380:K D
CANNON VALLEY UPH BACK
Hardware kit (1511-380KDP46)
No
E!3
A
Hex nut MS
0
B
Lock washer MS
®
C
Flat washer MS x 18
D
� Long bolt M6 x 70mm
E
@fl""'
Short bolt M6 x 40mm
✓
F
Allen key
=:::::::
G
Key wrench
ti

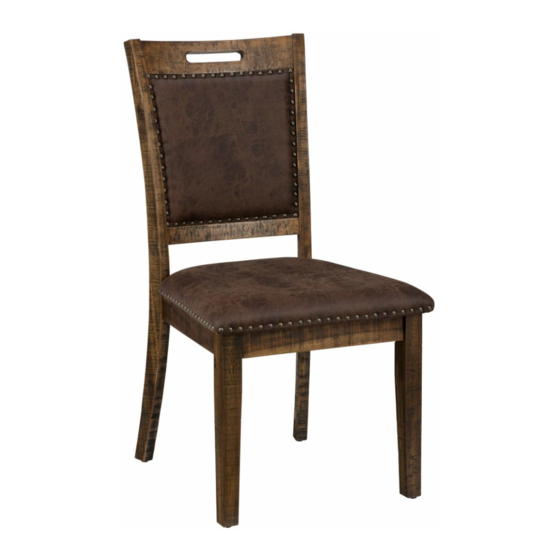

DINING CHAIR
Description
4
IDETAILCI
Q ty
4 Pcs
11 Pcs
11 Pcs
4 Pcs
3 Pcs
1 Pc
1 Pc
