Jofran MISSION VIEJO 1966-79TB Manual

j
OFRAN
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that
may have come loose inside the carton during shipment.
Hardware kit (1966-78TP01)
Description
A
B
C
D
E
F
G
H
I

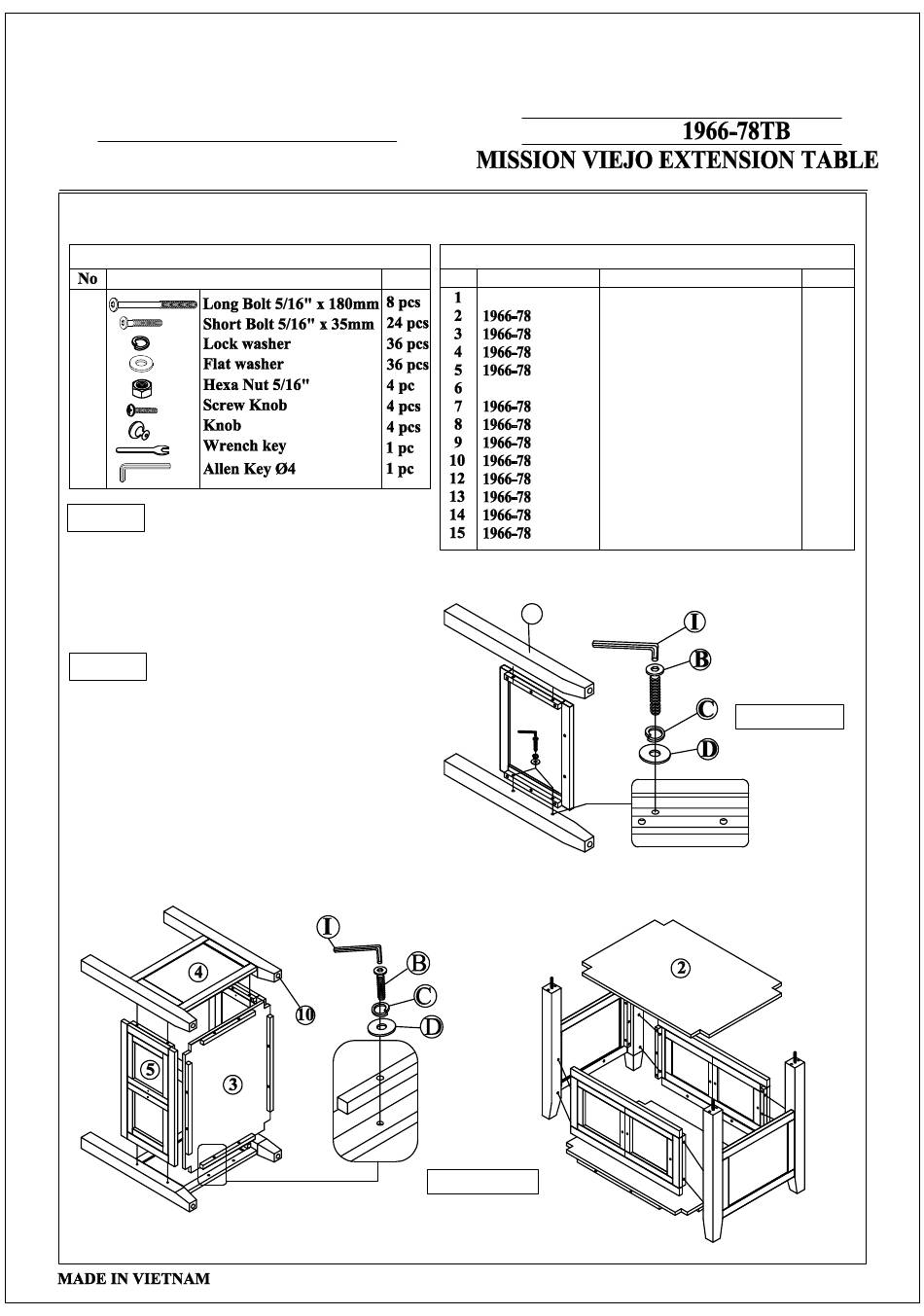

STEP 1
- Carefully place the Leg on the smooth surface.
- Position the Side Panel into designated location of the
Leg as shown. Insert the Bolts (B), with Lock Washers
(C) & Flat Washer (D), through pre-drilled holes in
wood cleat of Side Panel. Tighten securely with the
Allen Key (I). (See Detail A).
- Do the same with other Legs and Side Panel
STEP 2
- Turn the Side frame (assembled in step 1) upright, position
the Door frame onto designated location of the Side frame as
shown. Insert the Bolts (B) with Lock Washers (C) & Flat
Washer (D) through pre-drilled holes in wood cleat of Door
Frames and attach to the assembled Side Frame from Step 1
-Attach the bottom panel to the underside of the base by
inserting Bolts (B) with Lock Washers(C) and Flat Washers(D)
through the predrilled holes in the bottom panel
and attach to the cleats on the inside of the side panel.
-Carefully turn the Storage Box to the upright position,
insert the Top Panel (2) Between the legs (See Detail B).
REV 23
ASSEMBLY INSTRUCTIONS &
INC.
No
Q'Ty
.
DETAIL B
REV 23
PARTS IDENTIFICATION
MODEL #
Parts Key
Code
Description
Table Top
Storage Box Top Panel
BP08T
BP08B Storage Box Bottom Panel
Storage Box Side Panel
BP08S
Two Door w/ Frame
BP07F
Legs
Door Catch Assembly
BP01D
BP07H Door Hinge
Knob w/Screw
BP04
Floor Glide
BP01F
TP13 Extension Mechanism
Mounting Plate
TP29
TP13L Extension Lock
TP02E Leg Extension
6
Q'Ty
1 Pc
1 Pc
1 Pc
2 Pcs
2 Pcs
4 Pcs
4 Sets
8 Pcs
4 Pcs
4 Pcs
1 Sets
2 Pcs
4 Sets
4 Pcs
DETAIL A
PAGE 1/2
