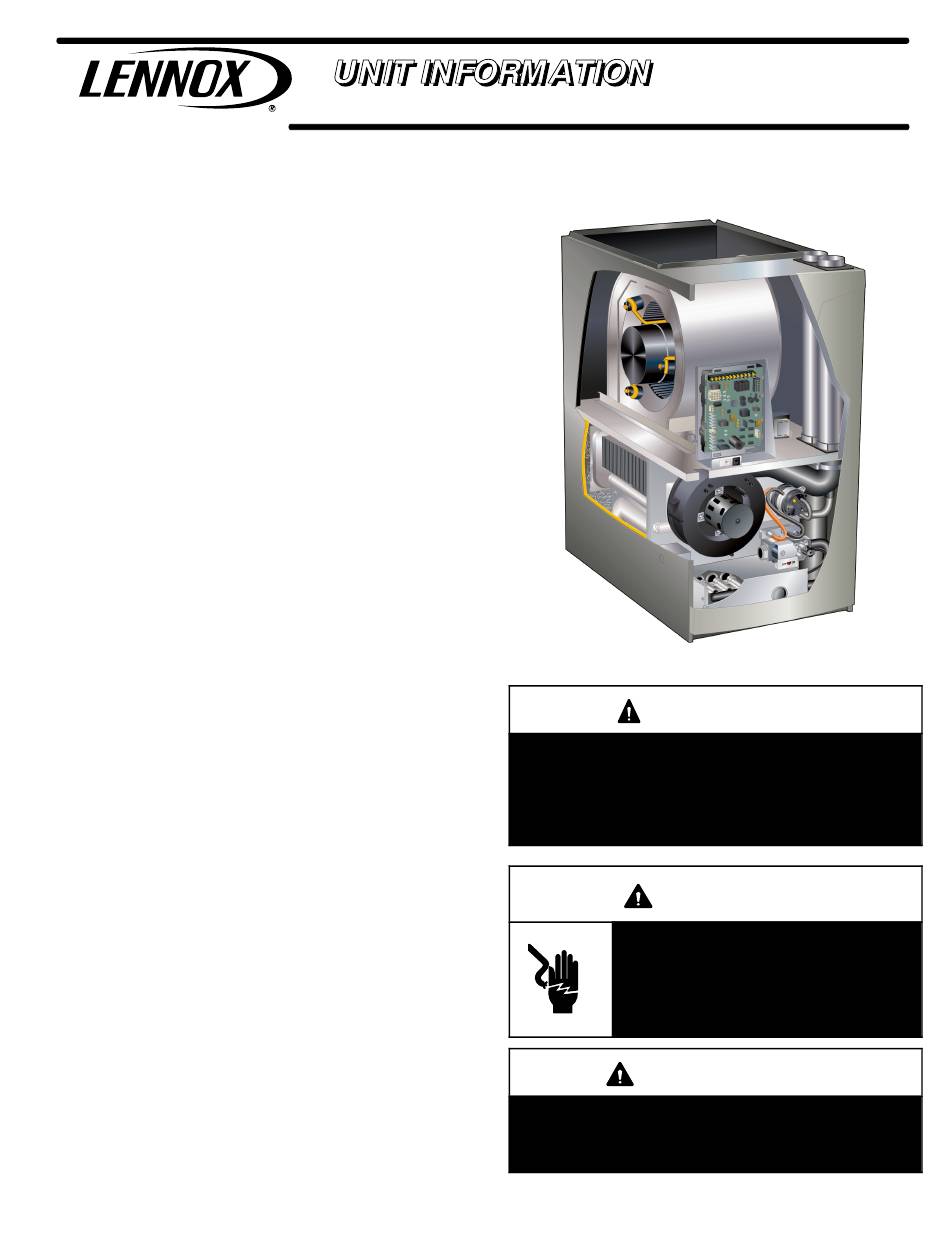

SLP99DFV series units are high-efficiency downflow gas
furnaces equipped with variable capacity gas valve, vari­
able speed combustion air inducer and variable speed in­
door blower motor. All models are designed for direct vent
(dual pipe) venting system only. SLP99DFV units are avail­
able in heating capacities from 66,000 to 132,000 Btuh
(19.3 to 38.6 kW) and cooling applications from 2 to 5 tons
(7.0 kW to 17.5 kW). Refer to Engineering Handbook for
proper sizing.
Units are factory-equipped for use with natural gas. Kits are
available for conversion to LP operation. SLP99DFV models
®
include a SureLight
variable integrated control that can be
used with a communication thermostat as part of a commu­
nicating comfort system. All SLP99DFV units meet the Cali­
fornia Nitrogen Oxides (NO
sonal Efficiency requirements.
All specifications in this manual are subject to change. Pro­
cedures outlined in this manual are presented as recom­
mendations only and do not supersede or replace local or
state codes. In the absence of local or state codes, the
guidelines and procedures outlined in this manual (except
where noted) are recommendations only and do not consti­
tute code.

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
III Placement and Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
VIII Wiring and Sequence of Operation
IX Field Wiring
. . . . . . . . . . . . . . . . . . . . . . . . . . .
SLP99DFV SERIES UNITS
) Standards and California Sea­
x
Page 2
Page 3
Page 4
Page 10
. . . . . . . . . . . . . .
Page 36
. . . . . . . . . . . . . .
Page 39
Page 55
. . . . . . . . . .
Page 56
. . . . . . . .
Page 61
Page 61
. . . . .
Page 64
Page 72
100002
05/2021
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, person­
al injury or loss of life. Installation and service must
be performed by a licensed professional HVAC in­
staller (or equivalent), service agency or the gas sup­
plier.
Electric shock hazard. Can cause injury
or death. Before attempting to perform
any service or maintenance, turn the
electrical power to unit OFF at discon­
nect switch(es). Unit may have multiple
power supplies.
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal injury.
Take care while handling this equipment and wear
gloves and protective clothing.
Page 1
SLP99DFV
WARNING
WARNING
CAUTION
© 2021 Lennox Industries Inc.
