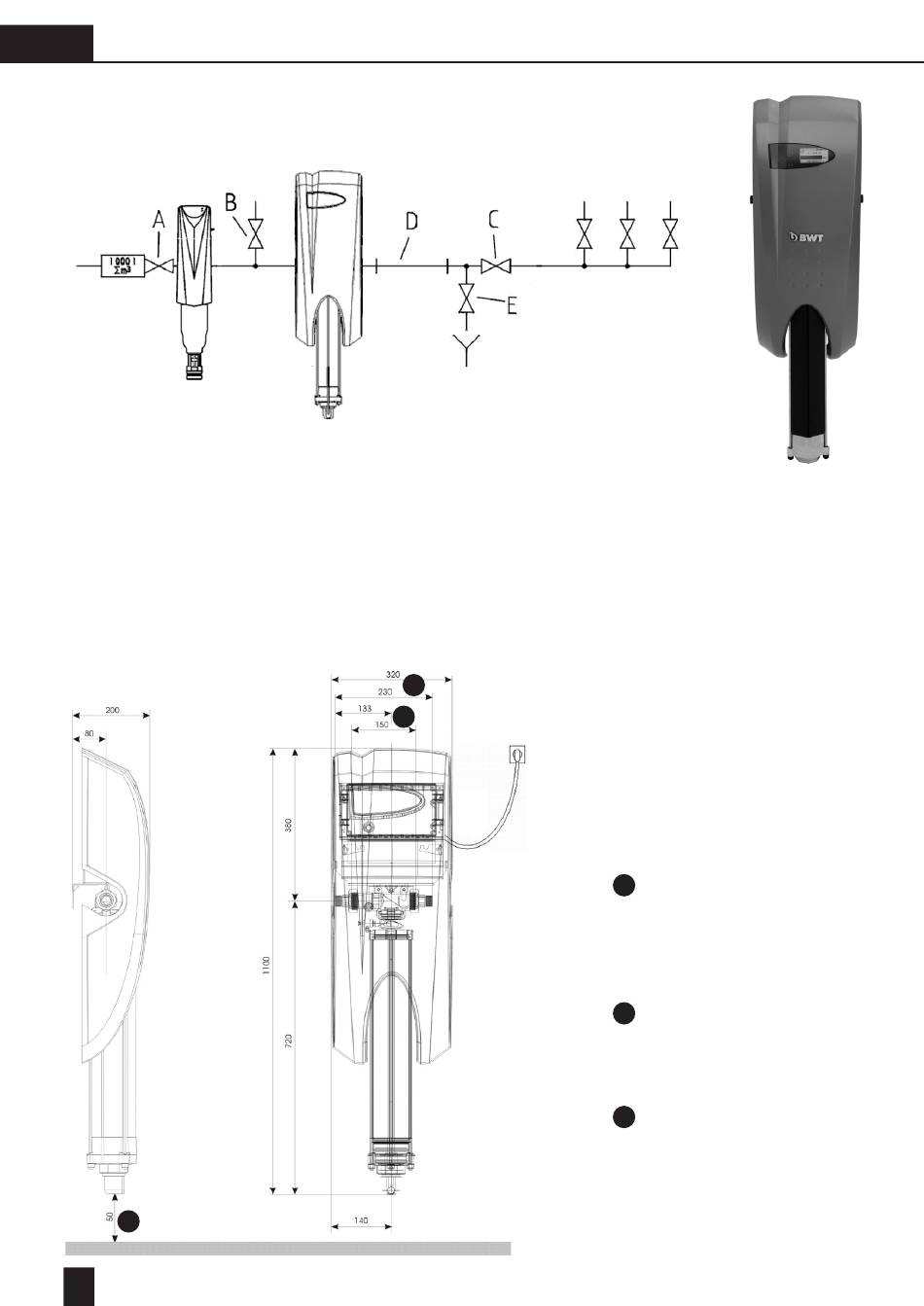

5.3. Installation diagrams

a.) Installation diagram AQA total 1500

A
Water counter shut-off valve
B
Outlet valve to garden
C
Unit shut-off valve
D
Test section
E
Rinsing valve
The test section is an easily removable, new pipe section, which should have a pipe length/pipe diameter of
approximately 6:1. It must be fitted immediately downstream of the AQA total system.
3
20
2
1
1
Installation length without
glands (5/4" locking nut, 5/4"
external thread)
2
Installation length with glands
(both sides 1" external thread)
3
Necessary space for removal of
working unit
