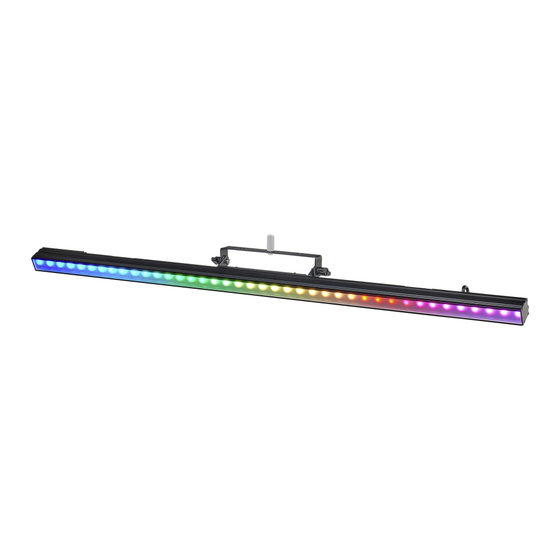

- Page 1 LED Pixel Rail 40 RGB MKII LED Strip...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 14.08.2023, ID: 449739 (V5)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation and starting up........................ 10 Connections and controls........................13 Technical specifications........................15 Cleaning............................... 17 Protecting the environment......................18 LED Pixel Rail 40 RGB MKII LED Strip... - Page 4 LED Pixel Rail 40 RGB MKII LED Strip...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as a lighting effect in combination with a Pixel-Rail-Drive 640 MKII controller (item no. 449740). Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. NOTICE! Risk of fire due to covered vents and neighbouring heat sources! If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐...
-
Page 9: Features
Features Features Pixel effects strip with 40 tri-colour SMD LEDs (RGB) Control via Pixel Rail Drive 640 MKII (item no. 449740) Power supply via LAN cable (Cat) Robust aluminium die-cast housing For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. -
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Installation and starting up NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
- Page 12 Installation and starting up Connect the device via a suitable RJ45 data cable (Cat) with the Pixel Rail Drive 640 MKII. A maximum of four pixel strips may be connected in series to each serial interface of the con‐ troller, thus a maximum of 16 pixels Rail 40 RGB MKII per controller. Please note that this device must not be connected to a dimmer.
-
Page 13: Connections And Controls
Connections and controls Connections and controls Front panel ö & LED Pixel Rail 40 RGB MKII LED Strip... - Page 14 Connections and controls 1 Mounting rail for the mechanical connection of the pixel rails using fastening elements (6). 2 RJ45 input for power supply and control of the device by means of Pixel Rail Drive 640 MKII. 3 Locking screw for fixing the mounting bracket. 4 Retaining bracket for attaching the device to a suitable cross bar.
-
Page 15: Technical Specifications
Technical specifications Technical specifications Light source 40 × 5050 SMD, RGB Optical properties Beam angle 120 ° Pixel pitch 25 mm Luminance 1050 Nit Refresh rate 3000 Hz Control Via Stairville Pixel Rail Drive 640 MKII Input connections Power supply RJ45 Control via Stairville Pixel Rail Drive 640 MKII RJ45... - Page 16 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Suitable for outdoor use Colour mixture Separately controllable LEDs LED type Uni-coloured fanless Remote control Not possible wireless DMX Housing colour black LED Pixel Rail 40 RGB MKII LED Strip...
-
Page 17: Cleaning
Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth. -
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
