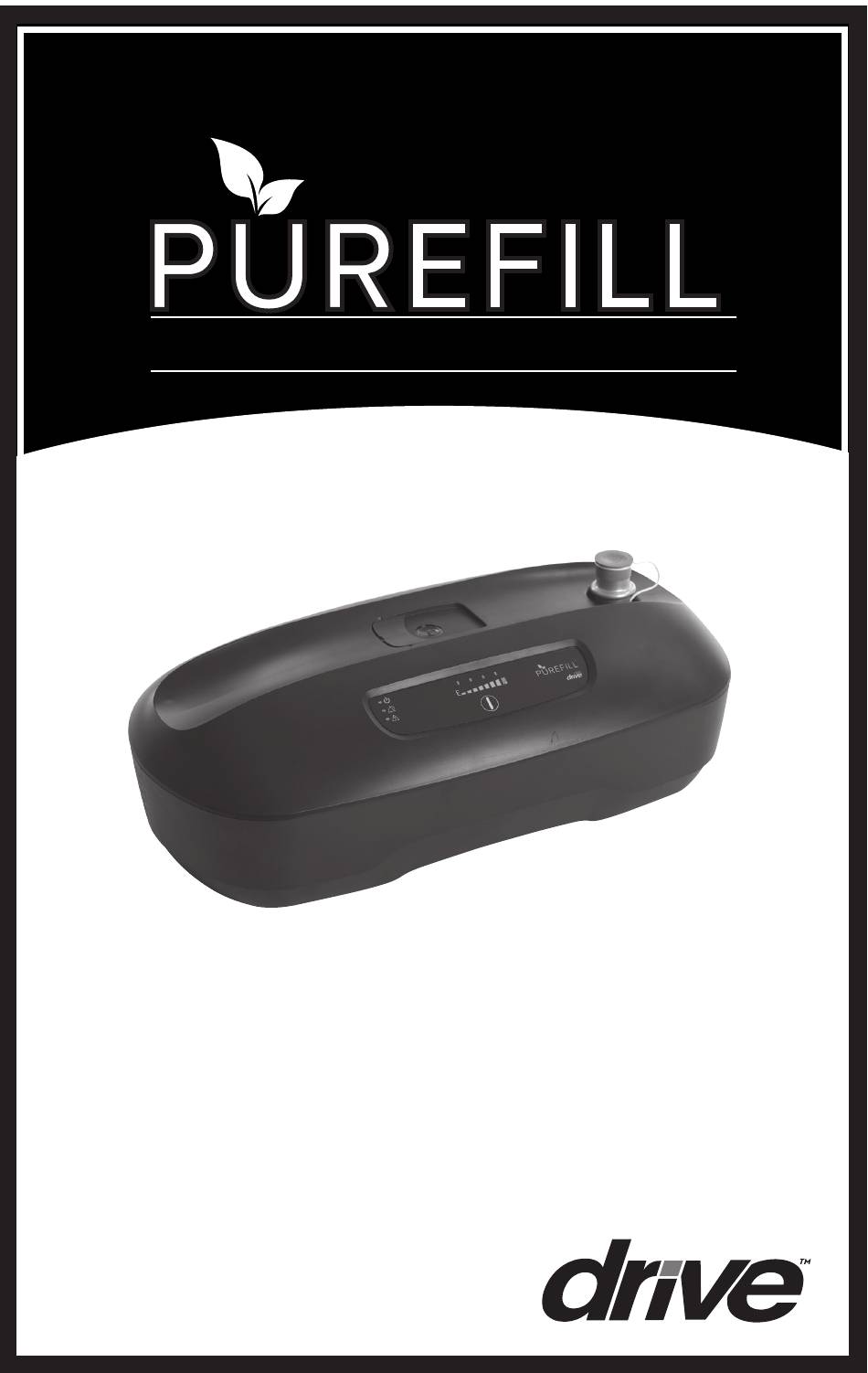

OXYGEN COMPRESSOR
Product Information and User Instructions
Model PF1100
Caution – Federal (US) law restricts
this device to sale by or on the order
of a physician

Advertisement

loading
Need help?

Need help?

Do you have a question about the PUREFILL PF1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Drive PUREFILL PF1100

Summary of Contents for Drive PUREFILL PF1100

  • Page 1 OXYGEN COMPRESSOR Product Information and User Instructions Model PF1100 Caution – Federal (US) law restricts this device to sale by or on the order of a physician...

  • Page 2: Table Of Contents

    The PureFill™ Oxygen Compressor is an electrically operated unit which fills pressurized cylinders with concentrated oxygen produced by an oxygen concentrator. Although the PureFill™ is recommended to be used with the oxygen sensing Drive Pure Oxygen Concen- trator, Model CH5000S, the PureFill™ is designed to function with any oxygen sensing con- centrator on the market, with appropriate connections.

  • Page 3: Warnings And Cautions

    • Electrical shock hazard: Do not remove the cabinet of the PureFill™ Station. The removal of the cabinet should only be performed by Drive Medical or a trained representative. • Disconnect the power cord from the electrical outlet before cleaning the housing of the PureFill™...
  • Page 4 Integrated Conserving Devices • The Drive PureFill™ Compressor may be supplied with an INT-812 Bonsai® Velocity oxy- gen conserver. The INT-812 is an OM-812 oxygen conserver, integrated with a 2000 PSI (135 bar) aluminum oxygen cylinder which has a compatible oxygen fill port valve for the PureFill™...
  • Page 5 OP-150-800 3-in-1 Carry Bar, 1/ea OP-150T Horizontal Carry Bag, 1/ea SOFT 204 Adult Soft Nasal Cannula with 4' Oxygen Tubing, 50/cs SOFT 207 Adult Soft Nasal Cannula with 7' Oxygen Tubing, 50/cs ....................DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................

  • Page 6: Description Of Parts And Controls

    OXYGEN COMPRESSOR Conservers and Regulators • It is recommended that Drive™ conservers or regulators are used with an oxygen cylinder filled by the PureFill™ Oxygen Compressor, however any conserver or regulator may be used with oxygen cylinder. DESCRIPTION OF PARTS AND CONTROLS Please be sure the following items are included •...
  • Page 7 Note: Be sure the Pure Concentrator is operating with the green Normal Oxygen LED light illuminated. If not using the Drive Pure Concentrator, be sure the concentrator is an oxygen sensing unit, with a transfill supply tube port which has an input pressure of 14-30 PSI, and is operating in the Normal Oxygen level range.
  • Page 8 2. As the cylinder fills, the LED’s on your PureFill™ will begin to blink to show filling progress a. The maximum PSI the PureFill™ will fill a cylinder is 2000 PSI. b. The PureFill™ will automatically shut off when the cylinder reaches 2000PSI..................... DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................

  • Page 9: Alarms And Troubleshooting

    1. Use a damp cloth with a mild household detergent to wipe down the outside of the Pure- Fill™. a. Avoid using excessive quantities of water. 2. Use a dry cloth to wipe dry. For servicing of your PureFill™ Compressor, contact your equipment provider or Drive Medi- cal Customer Service at 1-800-371-2266. Accessories Item...
  • Page 10 • Make sure the PureFill is connected to the Concentrator. • Make sure the Concentrator is turned ON. System Fault Compressor malfunction Shut OFF power and contact your provider. (Red LED) detected..................... DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................
  • Page 11 3 years or 3,000hr Typical Fill Times*: M4 (A) Cylinder (113L) ~ 52mins with the Drive Pure Oxygen Concentrator M6 (B) Cylinder (170L) ~ 80mins with the Drive Pure Oxygen Concentrator M9 (C) Cylinder (246L) ~ 124mins with the Drive Pure Oxygen Concentrator...
  • Page 12 Guidance and Manufacturer’s Declaration—Electromagnetic Immunity: This device is intended for use in the electromagnetic environment specified below. The user of this device should make sure it is used in such a environment..................... DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................
  • Page 13 IEC 61000-4-8 in a typical hospital or home environment. Note: is the a.c. mains voltage prior to application of the test level..................... DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................

  • Page 14: Separation Distances

    This equipment has been tested and is in compliance with the EMC limits specified in IEC/EN 60601- 1-2. These limits are designed to provide a reasonable protection against harmful interference in a ....................DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................

  • Page 15: Symbol Key

    Protected from ingress of solid foreign objects of up to 0.47 in IP21 (12.5 mm) in diameter and protected against vertically falling water drops. Follow local governing ordinances and regulations when it becomes necessary to dispose of the unit ....................DRIVE PUREFILL™ OXYGEN COMPRESSOR MODEL PF1100 ....................
  • Page 16 In no event shall Drive Medical or its subsidiaries be liable for loss of use or profit or other collateral, special or consequential damages.
