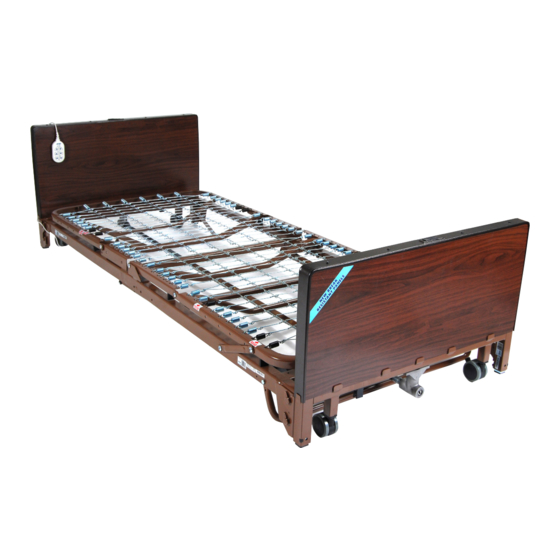

Drive Full Electric Low Height Bed
Model # 15005L
Owner's Manual and Assembly Instructions
This manual must be given to the Owner/User
of this bed and should be read carefully before
putting this product into use. Keep manual in
an accessible location for future reference.
Click here to view detailed product information and
pricing.
Call 800-397-5899 to order today!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15005L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drive 15005L

Summary of Contents for Drive 15005L

  • Page 1 Drive Full Electric Low Height Bed Model # 15005L Owner’s Manual and Assembly Instructions This manual must be given to the Owner/User of this bed and should be read carefully before putting this product into use. Keep manual in an accessible location for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packaging and Handling ........................1 Unpacking ............................1 Inspection ............................1 Storage .............................. 1 Assembly Instructions ........................... 2 Operation ..............................6 Hand Control ............................6 Caster Lock and Floor Lock Feature ....................6 Bed Rail Installation ..........................7 Mattress Retainer Adjustment .......................

  • Page 3: Packaging And Handling

    Inspection 1. Examine each component carefully for damage, scratches, dents or any other visual damage. 2. Carefully remove Tie Wraps holding power cord, hand pendant and drive shaft. 3. Inspect power cord and plug for cuts or damage. 4. Inspect the junction box and motors for damage, loose connections, cuts or damage to the wires.

  • Page 4: Assembly Instructions

    • Power cord & plug B. Head Spring C. Low Height Head Board D. Low Height Foot Board E. Hi/Low Drive Shaft F. Locking Pins (2) G. Hand Crank H. Casters (4) – 2 locking, 2 non-locking I. Head/Foot Pull Tube Transport Straps Caution: DO NOT attempt to operate bed controls until completion of assembly as damage to bed components and/or personal injury may occur.
  • Page 5 Assembly Instructions (Continued) 2. With the Head and Foot Spring positioned upright, connect Head Spring by aligning with foot spring and swinging both ends away from each other. 3. Optional: Insert lock pin through connected sleep surface and secure with spring clip. 4.
  • Page 6 Head Board drive pin and Hi/Lo Motor drive pin at the foot end. • Lift the Head Spring and install the foot end of the Hi/Lo Drive Shaft to the Hi/Lo Motor drive pin, then install head end of the Hi/Lo Drive Shaft to the Head Board drive pin.
  • Page 7 Assembly Instructions Cont. 8. Release the spring loaded shaft on the hi/low motor and insert the shaft into the gear box on the footboard. 9. Make sure the slot on the spring loaded shaft engages the roll pin on the gear box. 10.

  • Page 8: Operation

    Operation Hand Control The Model #15005L Low Height Bed comes with a 3 Function hand held Pendant. • Top Buttons control raising and lowering the Head Section; • Middle Buttons control raising and lowering the Foot Section; • Lower Buttons control raising and lowering the entire bed.

  • Page 9: Bed Rail Installation

    Bed Rail Installation The Deck Frame contains labels that provide the location for installing Half Rails and Full Rails. • On the Head Section and Foot Sections, a Label will indicate the notch location for alignment of the Full Rail Cross Brace that must be positioned in between the two black springs. A second Label will indicate alignment for the Half Rail clamp to be positioned with the Black Spring centered between the clamp.

  • Page 10: Mattress Retainer Adjustment

    Mattress Retainer Adjustment Before a mattress is laid on the bed, flip up the mattress guard to reduce the movement of the mattress. Manual Hi/Lo Adjustment Crank In the event of a loss of power or Hi/Lo motor malfunction; the Hi/Lo feature can be manually adjusted using the Hand Crank.

  • Page 11: Maintenance & Safety Checks

    Lifetime warranty on welds. • 5 year warranty on frame. • 5 year warranty on motor. • 1 year warranty on all other parts and components. During the warranty period, defective items will be repaired or replaced at Drive’s option at no charge.

  • Page 12: Warnings

    WARNINGS GENERAL WARNINGS DO NOT use this product or any available optional equipment without first completely reading and understand- ing these instructions and any additional instructional material such as owner’s manuals, service manuals or in- struction sheets supplied with this product or optional equipment. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur.
  • Page 13 Accessories designed by other manufacturers have not been tested by Drive Medical and are not recommended for use with Drive Medical products. Keep all moving parts, including the main frame, mattress deck (head and foot springs/sections) and all drive shafts free of obstruction (i.e. blankets/sheets, heating blankets/pads, tubing, wiring, etc. and other types of products using electric cords which may get tangled around the bed, side rails or legs) during operation of the bed.
  • Page 14 WARNINGS The total weight limit of the Drive Medical 36 inch (91.4cm) wide Manual/Semi-Electric/Full Electric bed is 450 pounds (204 kg) which includes the weight of the occupant, all accessories such as mattress, side/assist rails, trapeze, any personal effects, etc.
  • Page 15 WARNINGS BED RAIL WARNINGS Although bed rails are not rated to any specific weight limitation, the bed rails may become deformed or broken if excessive side pressure is exerted on the bed rails. The bed rail is not an assist rail for getting into or out of bed.
  • Page 16 WARNINGS DO NOT place pendant under or between objects. This may unintentionally press the buttons and may cause injury or damage. Electronic equipment may be influenced by Radio Frequency Interference (RFI). Caution should be exer- cised with regard to the use of portable communications equipment in the area around such equipment. If RFI causes erratic behavior, unplug the electric bed IMMEDIATELY.
  • Page 17 WARNINGS When bed is not to be used for an extended period, unplug electric bed from the wall outlet. When using an extension cord, use only a three wire extension cord having at least 16 AWG (American Wire Gauge) wire and the same or higher electrical rating as the device being connected. Use of improper extension cord could result in a risk of fire and electric shock.
  • Page 18 Notes:...
  • Page 20 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Toll Free: 877.224.0946 Fax: 516.998.4601 www.drivemedical.com REV1.5.27.15...
