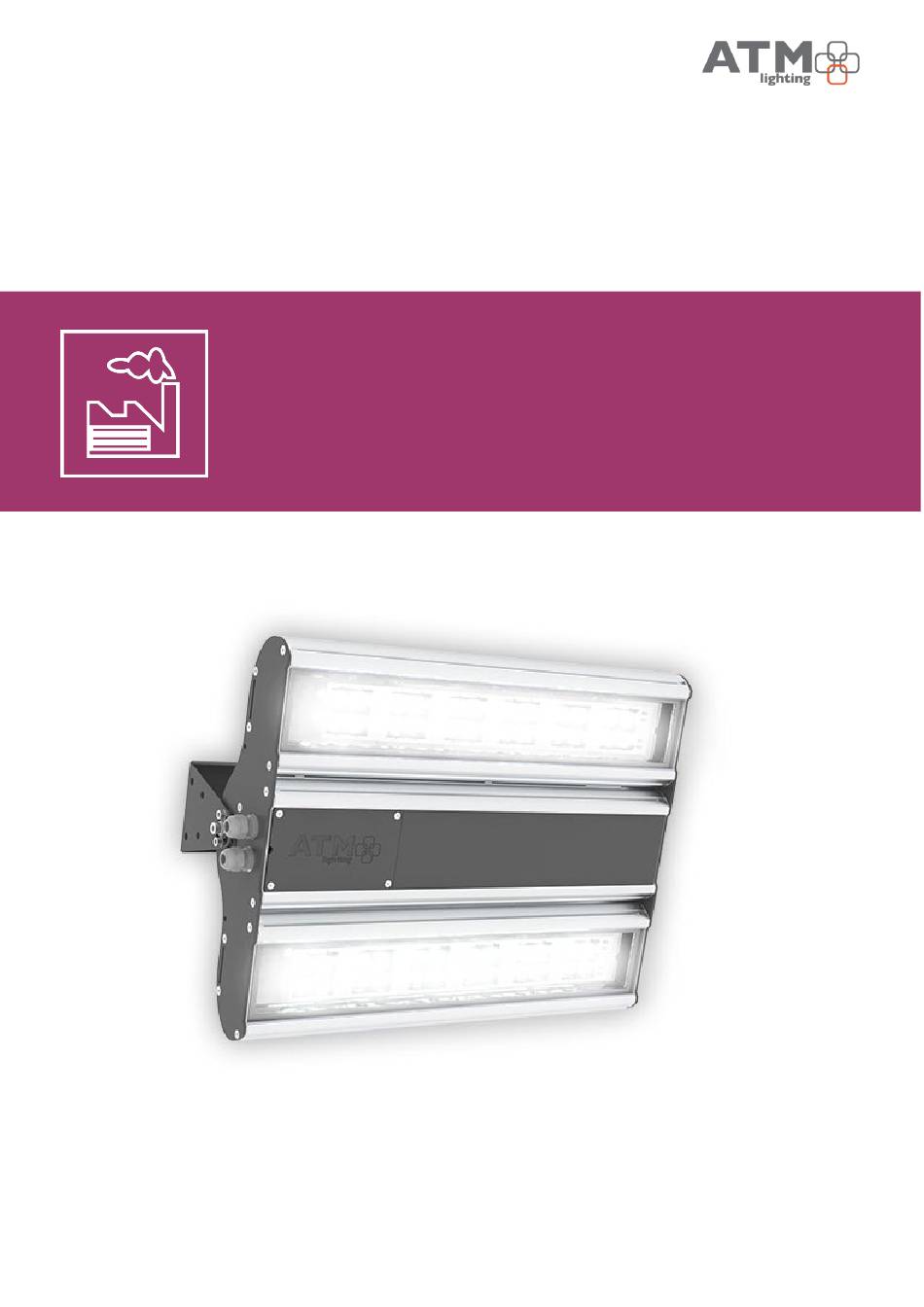

INSTALLATION AND MAINTENANCE MANUAL FOR
INDUSTRIAL LIGHT FITTING
HPL450LED
1
Manual No: I.HPL450LED.01
Release date: 17.11.2023
Edition: 1.0
Carefully
read
the
instructions
mounting the light fitting.
ATM Lighting sp. z o.o.,
ul. Maszynowa 30A,80-298 Gdańsk,
tel: +48 58 347 51 07, fax: +48 58 347 51 08
before
Advertisement
Table of Contents
Related Manuals for ATM Lighting HPL450LED
Summary of Contents for ATM Lighting HPL450LED
- Page 1 INDUSTRIAL LIGHT FITTING HPL450LED Carefully read instructions before mounting the light fitting. Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08...
-
Page 2: Table Of Contents
TRANSPORT AND CONDITIOINS OF STORAGE ..............11 DISPOSAL OF WASTE EQUIPMENT ..................12 WARRANTY ..........................12 Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08... -
Page 3: General Information
1. GENERAL INFORMATION HPL450LED floodlights are designed to light indoor and outdoor areas in industrial zones. The floodlight can be equipped with one of five optics. As a standard, the floodlight has been adapted to work with central battery (ZB) and equipped with a driver with DALI-2 protocol and D4i feature. The floodlight can be optionally adapted to work in 3-phase network (3F). -
Page 4: Technical Information
127-300V, 127-300V, HPL450LED-HE3-3 240W HPL450LED-HE4-1 205W HPL450LED-HE4-2 260W HPL450LED-HE4-3 307W Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08... - Page 5 VERSIONS Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08...
-
Page 6: Photometrical Data
154 lm/W HPL450LED-HE4-2 37500 lm 144 lm/W HPL450LED-HE4-3 43000 lm 140 lm/W Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08... -
Page 7: Construction Description
Failure to comply with rules of the installation and use can lead to personal injury or property loses. ATM Lighting sp. z o.o. company takes no responsibility in such cases. Failure to comply with rules included in manual results with void of the manufacturer warranty. -
Page 8: Light Fitting Mounting
• Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08... - Page 9 Standard connection (wiring 50): 3 Phase connection (wiring 70): Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0 tel: +48 58 347 51 07, fax: +48 58 347 51 08...
-
Page 10: Conditions Of Safety Use
It is recommended to carry out inspections of electrical equipment in accordance with the requirements of PN-EN 60079-17. Manual No: I.HPL450LED.01 ATM Lighting sp. z o.o., Release date: 17.11.2023 ul. Maszynowa 30A,80-298 Gdańsk, Edition: 1.0... -
Page 11: Cleaning
All parts considered as a spare parts must be ordered at manufacturer of light fitting. Additionally, the replacement of the light source may be performed by ATM Lighting Sp. z o.o and specially trained personnel, using original components supplied by ATM Lighting Sp. z o.o. -
Page 12: Disposal Of Waste Equipment
All specific information can be found in document „General terms and conditions warranty ATM Lighting sp. z o.o.” available at the website www.atmlighting.pl/en/ ADDRESS: ATM Lighting sp. z o.o. ul. Maszynowa 30A 80-298 Gdańsk tel: +48 58 347 51 07 fax: +48 58 347 51 08 office@atmlighting.pl Manual No: I.HPL450LED.01...
