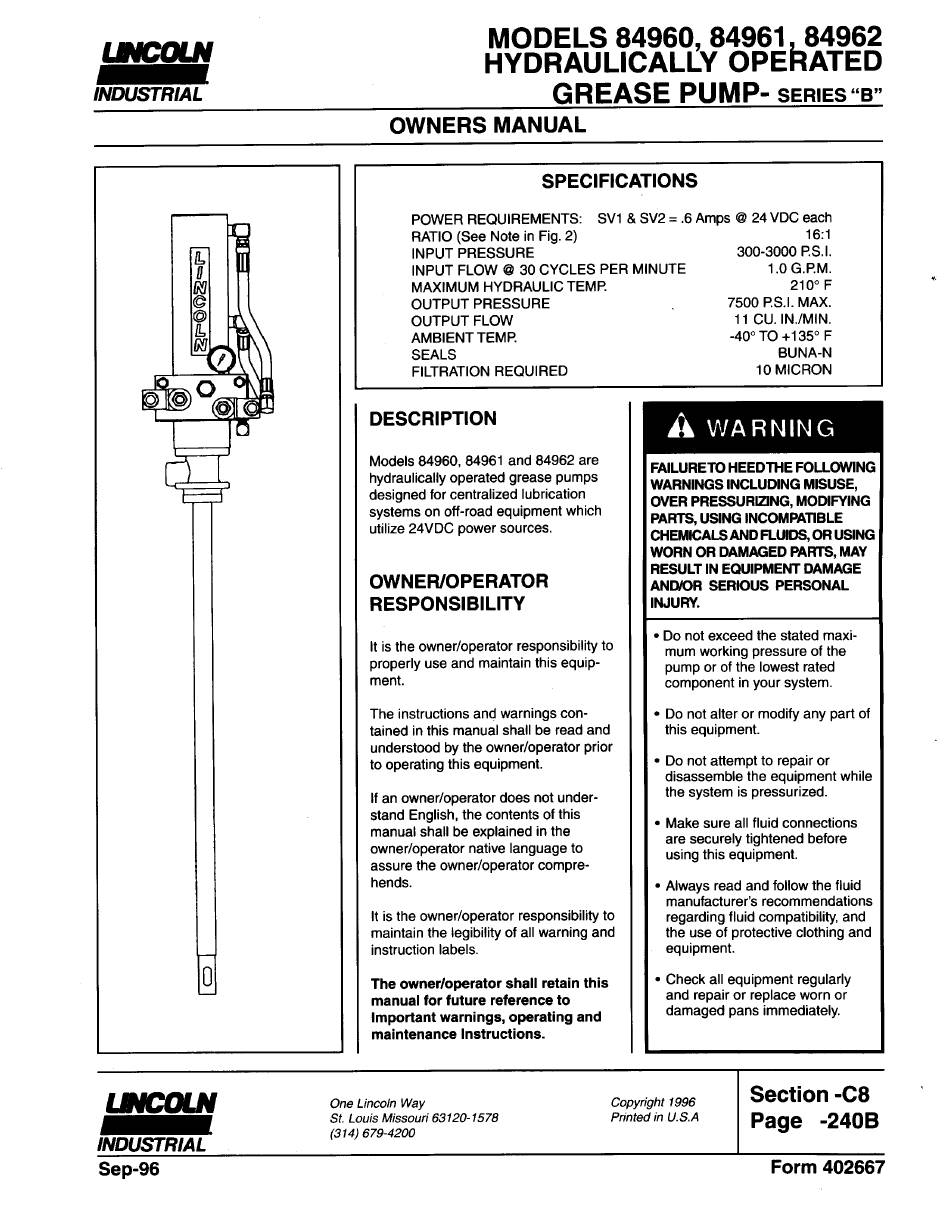

Lincoln industrial 84960 Owner's Manual

INDUSTRIAL
MODELS 84960,84961 84962
HYDRAULICALLY OPEhATED
GREASE PUMP-
SERIES "B"
OWNERS MANUAL
SPECIFICATIONS
POWER REQUIREMENTS: SV1 & SV2 =.6 Amps @ 24 VDC each
RATlO (See Note in Fig. 2)
16:1
INPUT PRESSURE
300-3000 P.s.l.
INPUT FLOW @ 30 CYCLES PER MINUTE
1.OG.P.M.
MAXIMUM HYDRAULIC TEMP.
210° F
OUTPUT PRESSURE
7500 P.S.I. MAX.
OUTPUT FLOW
11 CU. lN./MlN.
AMBlENT TEMP.
-40° TO +1 35° F
SEALS
BUNA-N
FILTRATION REQUIRED
10 MICRON
DESCRIPTION
Models 84960, 84961 and 84962 are
hydraulically operated grease pumps
designed for centralized lubrication
systems on off-road equipment which
utilize 24VDC power sources.
OWNEIWOPERATOR
RESPONSIBILITY
It is the owner/operator responsibility to
properly use and maintain this equip-
ment.
The instructions and warnings con-
tained in this manual shall be read and
understood by the owner/operator prior
to operating this equipment.
If an owner/operator does not under-
stand English, the contents of this
manual shall be explained in the
ownerloperator native language to
assure the owner/operator compre-
hends.
It is the owner/operator responsibility to
maintain the legibility of all warning and
instruction labels.
The owner/operator shall retain this
manual for future reference to
Important warnings, operating and
maintenance Instructions.
FAILUREIK) HEEDTHE FOLLOWING
WARNINGS INCLUDING MISUSE,
DVER PRESSURIZING, MODIFYING
PARTS, USING INCOMPATIBLE
2HEMfCALSAND FLUIDS, OR USING
tVORN OR DAMAGED PARTS, MAY
3ESULT IN EQUIPMENT DAMAGE
NND/OR SERfOUS PERSONAL
NJURY.
Do not exceed the stated maxi-
9
mum working pressure of the
pump or of the lowest rated
component in your system.
Do not alter or modify any part of
this equipment.
Do not attempt to repair or
disassemble the equipment while
the system is pressurized.
Make sure all fluid connections
are securely tightened before
using this equipment.
Alwavs read and follow the fluid
man~facturer's recommendations
regarding fluid compatibility, and
the use of protective clothing and
equipment.
Check all equipment regularly
and repair or replace worn or
damaged pans immediately.
One Lincoln Way
Copynghf 1996
Section -C8 '
St Louis Missouri 63120-1578
F'rmted m U S A Page -240B
lNDUSTR/AL
(314) 679-4200
Sep-96
Form 402667
