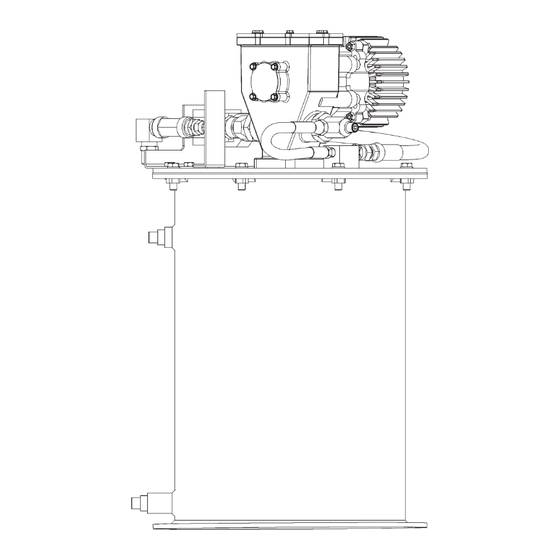

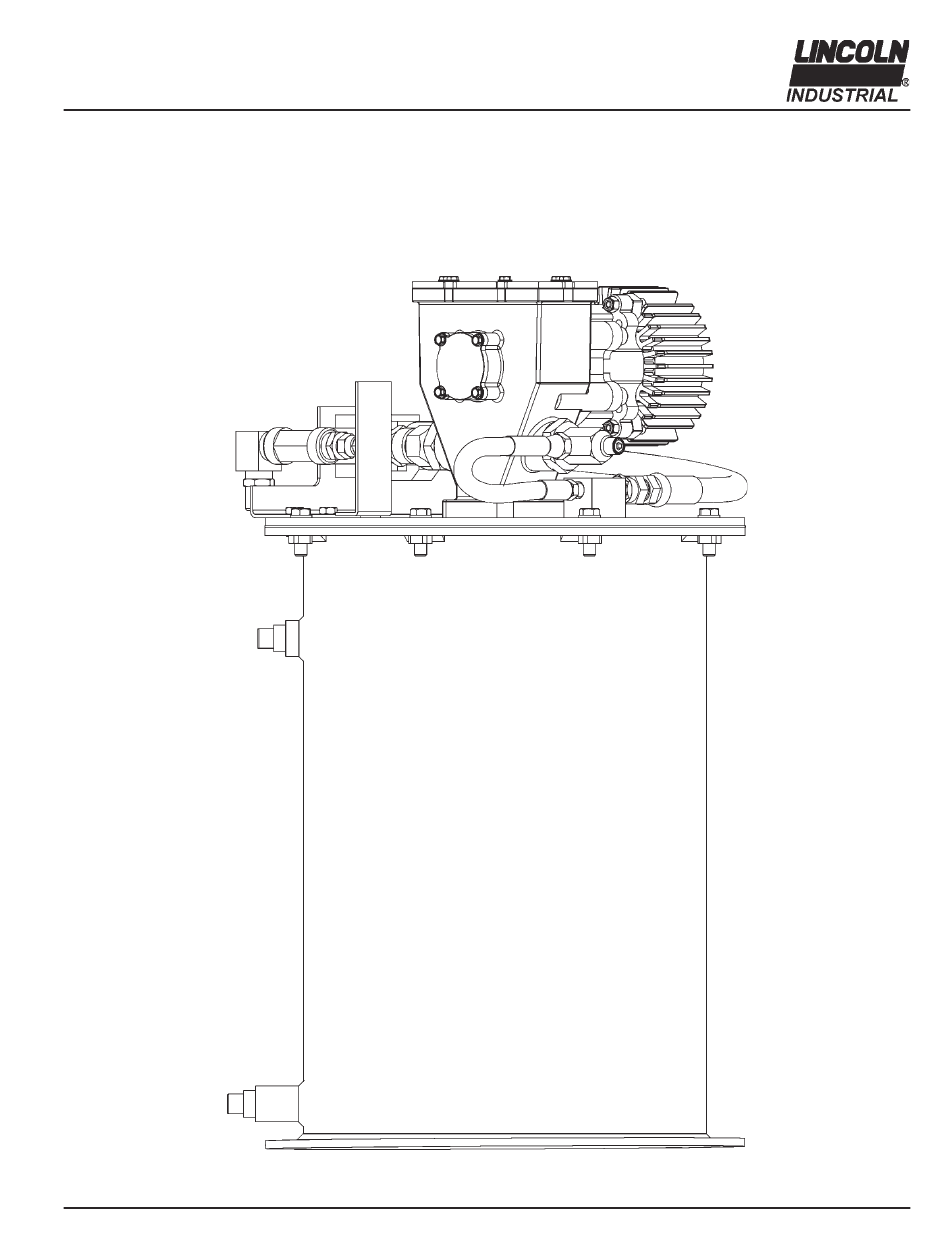

- Page 1 CENTRO-MATIC ® FlowMaster™ Rotary Driven Electric Pump (24 VDC) Models 85471, 85472 & 85473 Series “A” - C8 - 299 Section Page March 2003 Form 422733...
- Page 2 CENTRO-MATIC PUMP, MODELS 85471, 85472 & 85473 ® TABLE OF CONTENTS DESCRIPTION Page Safety....................2 General Description Specifications.................2 The Models 85471, 85472 and 85473 are pumping units Description..................2 designed to operate a Centro-Matic lubrication system. ® System Operation................2 The units include a vent valve to relieve the line pressure to Installing the Pump..............3 recharge the injectors.
- Page 3 CENTRO-MATIC PUMP, MODEL 85471, 85472 & 85473 ® specific areas of the check valve, vent valve or safety Please refer to the 85567 operation manual, section C8, page unloader valve. 298, series “A” for setting the pump speed control on the 24VDC motor.
- Page 4 CENTRO-MATIC PUMP, MODELS 85471, 85472 & 85473 ® 6. Loosen and remove the eight nuts (53) on top of the follower. 7. Remove the follower weight and the wiper (51). Replace the wiper with a new one. 8. Reassemble in the reverse of the above procedure making sure that the long bolts are staggered with the small ones and that they extend below the follower.
- Page 5 CENTRO-MATIC PUMP, MODEL 85471, 85472 & 85473 ® 1/4” NPTF Outlet Check Assembly (21) Figure 2 Figure 3 Low Level Figure 4 Figure 5 (8 Req’d) (8 Req’d) (4 Req’d) (4 Req’d) Follower Assembly (34) (4 Req’d) Figure 6 Form 422733 Page Number - 5...
- Page 6 CENTRO-MATIC PUMP, MODELS 85471, 85472 & 85473 ® Part No. 19.1" 15.12" (384 27.5" (485.1 mm) (698.5 mm) 85471 19.1" 15.12" (384 38" (485.1 mm) (965.2 mm) 85472 19.9" 16.75" 38.94" 85473 (505.8 mm) (425.5 mm) (989.1 mm) Form 422733 Page Number - 6...
- Page 7 CENTRO-MATIC PUMP, MODEL 85471, 85472 & 85473 ® Service Parts Item No. Qty. Description Part Number Item No. Qty. Description Part Number O-Ring *249532 Pipe Plug, Fill 67224 Indicator Nut 16352 Extension Tube 249356 Cable Assembly 249762 Gasket *31029 Indicator Plug 249357 Pump Check Disc Ass’y +*80206...
- Page 8 CENTRO-MATIC PUMP, MODELS 85471, 85472 & 85473 ® MODELS 85487 & 86258 TROUBLESHOOTING CONDITION POSSIBLE CAUSE CORRECTIVE ACTION Pump does not operate. No electrical power to pump. Turn on or connect24 VDC power. - Motor Relay Failure Replace Relay - Motor Overheated Turn power off for 10 minutes and restart.
