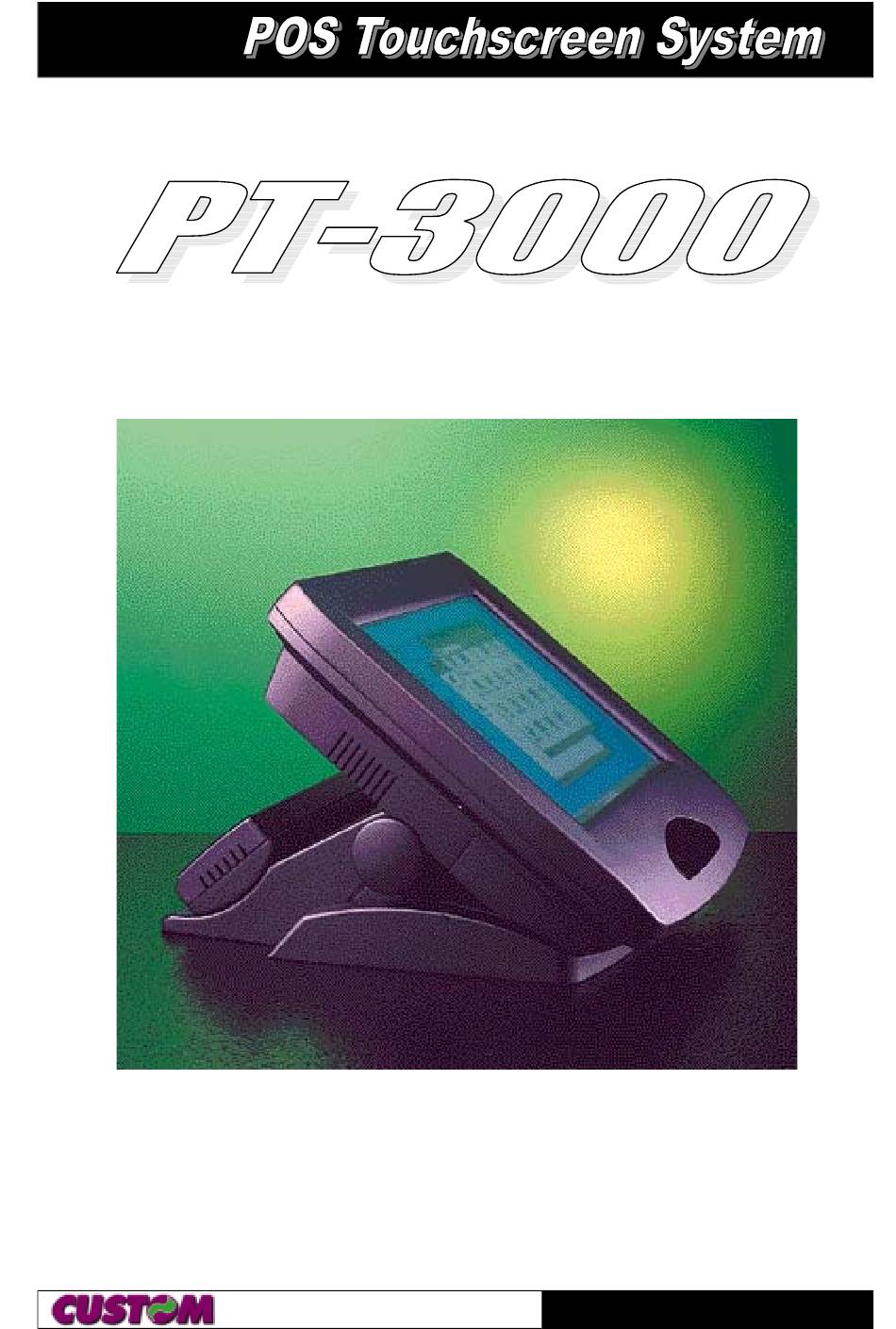

- Page 1 WWW.CUSTOM.IT PT-3000...
- Page 2 This manual contains information protected by copyright. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in form of electronic, mechanical, photocopying, recording, without prior written consent from manufacture. NOTICE The information in this manual is subject to change without notice. Page 2 of 20 PT-3000...
- Page 3 Do not attempt to disassemble the battery, immerse it in water or dispose of it in fire. WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Page 3 of 20 PT-3000...
- Page 4 Cirrus Logic is a trademark of Cirrus Logic Inc C&T is a trademark of the Chips and Technologies, Inc Turbo C is a trademark of Borland Inc All other registered and unregistered trademarks are trademarks of their respective holders. Page 4 of 20 PT-3000...
- Page 5 User’s Manual How to Use This Manual This manual will provide the user with as much information about the PT-3000 system as possible. This information will be very useful while installation of the system. Chapter 1, “ Introduction” ; describes the various features about the system.
-
Page 6: Table Of Contents
1.2 Safety Precautions C H A P T E R 2 GETTING START 2.1 Unpacking the Package 2.2 PT-3000 System Details 2.2.1 Overview of the system Unit C H A P T E R 3 SYSTEM INSTALLATION 3.1 Initial Check-up of the System 3.2 PS/2 Keyboard Connection... -
Page 7: General Description
PT-3000 system has a compact design & is lightweight. It can work in stand-alone or network environment. To simplify system integration, its packs POS provisions such as Ethernet, SVGA, Solid State Disk, PCMCIA interface, USB ports, Cash Drawer interface, Customer Display interface. - Page 8 Before plug the power cord on to the AC inlet of the power supply unit, please make sure the power switch is on correct voltage either 115V or 230V to avoid the damage of the power supply unit. Page 8 of 20 PT-3000...
-
Page 9: Chapter 2 Getting Start
C H A P T E R 2 GETTING START 2.1 Unpacking the Package Upon unpacking the PT-3000 system package, make sure that you have the following items in good conditions: PT-000 CPU Unit x 1 pc Pedestal Unit with Keylock x 1 pc... - Page 10 Rear Side of HDD/ FDD Power Cable Customer Display Pedestal Printer Power Cable Unit AC Power Cable Figure 2: ACCESSORIES Key-Lock Power Switch Selection AC Power Input DC Power Cable Figure 2: PT-3000 POWER ADAPTER UNIT Page 10 of 20 PT-3000...
- Page 11 User’s Manual Cable Tie (FCT-1) Cable Tie (THC-3) Pedestal Cover Plate Figure 3: CABLE FIXER Page 11 of 20 PT-3000...
-
Page 12: Chapter 3 System Installation
• There is 25-pin D-type female connector on the rear side of the CPU unit to which you can interface the parallel printer. Pass the printer cable through the opening provided on the left-hand side base of the pedestal. Page 12 of 20 PT-3000... -
Page 13: Cash Drawer Connection
4-pin male connector provided on the rear side of the CPU unit. 3.12 USB Devices Connection • There are two USB ports connections provide on the rear side of the CPU unit. These ports are fuse protected and compliant with USB spec. Page 13 of 20 PT-3000... -
Page 14: Ethernet Connection
Which acts as security for the HDD. So once you have placed the back cover on the pedestal you have to switch the key to lock position. Similarly, while opening the same you have to first turn the key to un-lock position. Page 14 of 20 PT-3000... - Page 15 Figure 4: HINGE COVER REMOVAL Back Base Cover installed over the rear side of the pedestal Figure 5: BACK BASE COVER REMOVAL I/O cable cover on the rear side of the CPU unit Figure 6: I/O CABLE COVER REMOVAL Page 15 of 20 PT-3000...
- Page 16 • Input DC Supply Figure 7: REAR SIDE VIEW OF CPU UNIT Opening provided on the base of the pedestal front cover. Figure 8: PS/2 KEYBOARD INTERFACE Figure 9: HDD INTERFACE Figure 10: PRINTER INTERFACE Page 16 of 20 PT-3000...
- Page 17 DC Power cables to be interface to the CPU unit. Figure 12: DC POWER INTERFACE RJ45 Connector used to interface the customer display unit. Figure 14: CUSTOMER DISPLAY INTERFACE Cable Fixer (FCT-1) Figure 15: CABLE ROUTING Page 17 of 20 PT-3000...
- Page 18 Turn the key to lock position once you put the back base cover on rear side of pedestal. Figure 18: KEY-LOCK MSR slot were the MSR unit is to be interfaced. Figure 19: MSR INTERFACE Page 18 of 20 PT-3000...
- Page 19 Figure 20: PCMCIA INTERFACE Inserting the CPU unit on to the hinge present on the pedestal unit. Figure 21: CPU UNIT INTERFACE TO PEDESTAL Figure 22: SCREW FIXING ON HINGE Figure 23: REAR VIEW OF PT-3000 Page 19 of 20 PT-3000...
-
Page 20: Chapter 4 System Power-Up
• Once the system is ready for operation you can install the application software through Floppy Disk or by interfacing the CD- ROM drive to the PC-104 interface (PCMCIA port) or by interfacing the system in network and downloading the software from the server. Page 20 of 20 PT-3000...
