Custom Audio Electronics PT-3000 Manual

Pos touchscreen system
Hide thumbs Also See for PT-3000:
Table of Contents

Advertisement

Quick Links

Download this manual
WWW.CUSTOM.IT
PT-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Custom Audio Electronics PT-3000

Summary of Contents for Custom Audio Electronics PT-3000

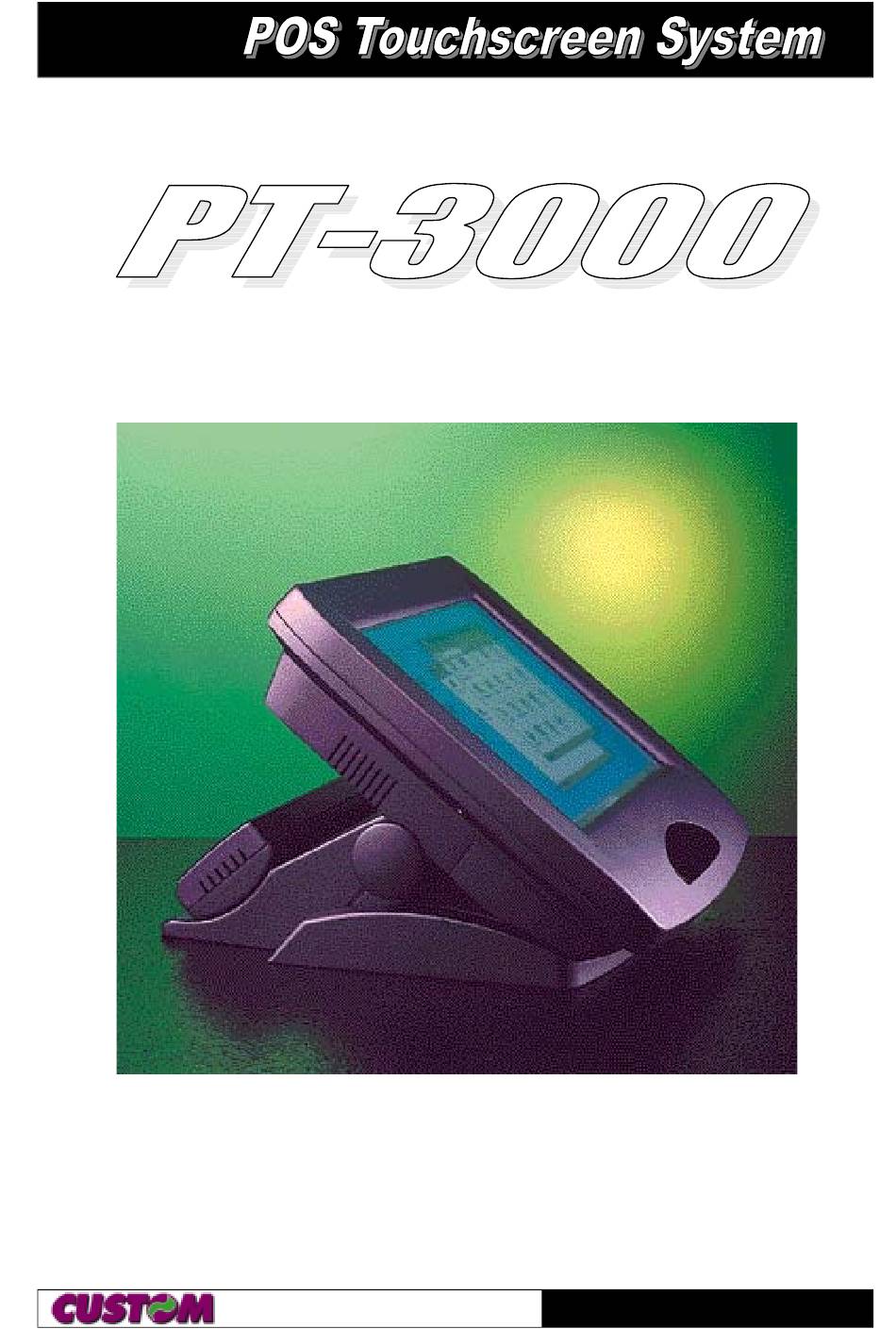

  • Page 1 WWW.CUSTOM.IT PT-3000...
  • Page 2 This manual contains information protected by copyright. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in form of electronic, mechanical, photocopying, recording, without prior written consent from manufacture. NOTICE The information in this manual is subject to change without notice. Page 2 of 38 PT-3000...
  • Page 3 Do not attempt to disassemble the battery, immerse it in water or dispose of it in fire. CE WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Page 3 of 38 PT-3000...
  • Page 4 Cirrus Logic is a trademark of Cirrus Logic Inc C&T is a trademark of the Chips and Technologies, Inc Turbo C is a trademark of Borland Inc All other registered and unregistered trademarks are trademarks of their respective holders. Page 4 of 38 PT-3000...

  • Page 5: Table Of Contents

    1.4 M ........................21 EMORY ONFIGURATION CH AP T ER 2 - BIOS SETUP ......................21 2.1 I .............................21 NTRODUCTION 2.1.1 Standard CMOS Setup Menu ....................23 2.1.2 BIOS Features Setup Menu......................25 2.1.3 Chipset Features Setup Menu ....................27 Page 5 of 38 PT-3000...
  • Page 6 LCD/ VGA Display Interface .....................34 3.1.7 Touch Panel Interface .......................35 3.1.8 Driver............................36 3.1.9 Sound Controller ........................36 3.1.10 Customer Display Interface (“ OLE/POS Driver” ) ..............37 3.1.11 Magnetic Swipe Reader (MSR) Interface .................38 3.1.12 PCMCIA Interface ........................38 Page 6 of 38 PT-3000...

  • Page 7: Ap T Er 1 - Hardware Description

    Interface through COM3 serial port. • MSR Interface: Supports 1 / 2 / 3 track reader. • Power Supply: Adapter Input: 110 ~ 230 VAC, 50/ 60 Hz Adapter Output: +5V/10A, +12V/2A, +24V/3A Total wattage: 146 W Page 7 of 38 PT-3000...
  • Page 8 PC/104 Interface: PCMCIA / FAX Modem Interface. IrDA device Interface. • Green Function: Suspend mode support IDE & Display power down support APM 1.1 Compliant • Software: Operation with MS-DOS, WINDOWS 95/ 98, WINDOWS NT, OS/2, NOVELL and SCO UNIX. Page 8 of 38 PT-3000...

  • Page 9: Jumper Setting Details

    Technical Reference Manual PT-3000 Mainboard Layout JP17 BAT. PCI/PNP 586 PIA4898 9838EF JP13 JP11 JP15 JP10 JP14 JP12 CHPS T65550 B TM4082C 9904-b JP18 CON1 1.2 Jumper Setting Details In order to set up the correct configuration, here is the description about how to set the jumpers to enable/disable or change functions.

  • Page 10: Jp1: Cpu Clock Select

    Technical Reference Manual to PT-3000 mainboard layout diagram. 1.2.1 JP1: CPU Clock Select CPU Clock Open Open Open 1.5X (P54C) Close Open Open 2.0X Close Close Open 2.5X Open Close Open 3.0X Open Open Open 3.5X (P55C) Close Open Close 4.0X...

  • Page 11: Jp10, Jp12: Doc-2000 & Sram Select

    + 5V (Default) Close Open Open Close From J6 Battery Input 1.2.12 JP18: LCD Shift Clock Select CN2 Pin 42 Signal Close Open Open SHFCLK - Open Close Open SHFCLK Open Open Close DOTCLK (Default) Page 11 of 38 PT-3000...

  • Page 12: Connector S Description

    1.3.3 J3: LCD Bright Connector (Default: 2-3 short) Signal LCD ADJ. N.C. 1.3.4 JP15: LAN LED Connector Signal LED + LED - LED + LED - LED + LED - 1.3.5 JP17: FAN Power Connector Signal +12V Page 12 of 38 PT-3000...

  • Page 13: J7: Doc-2000 Controller Programming Connector

    DATA 14 DATA 0 DATA 15 SIGNAL GND HDD 0 IO WRITE IO READ HD READY HDACK 0 IRQ14 ADDR 1 ADDR 0 ADDR 2 HARD DISK HARD DISK SELECT 0 SELECT 1 IDE ACTIVE Page 13 of 38 PT-3000...

  • Page 14: Jp5: Master Ide Connector (40 Pin)

    1.3.11 J9: Floppy Drive Connector (34 pin) Pin Signal Signal DENSITY SELECT DRIVE TYPE INDEX MOTOR 0 DRIVE SELECT 1 DRIVE SELECT 0 MOTOR 1 DIRECTION STEP WRITE DATA WRITE GATE TRACK 0 WRITE PROTECT READ DATA HEAD SELECT DISK CHANGE Page 14 of 38 PT-3000...

  • Page 15: J10: Keyboard Signal Select (Default: Pin 3-4 &5-6 Short)

    1-2 Short VGA voltage Select +5V 2-3 Short VGA voltage Select +3.3V (Default) 1.3.16 J18: LCD Voltage Select Signal Select +3.3V Power In + 5V 1.3.17 CN1: Watchdog Connector Programming Connector Signal Signal + 5V Page 15 of 38 PT-3000...

  • Page 16: Cn2: Lcd Connector

    Technical Reference Manual 1.3.18 CN2: LCD Connector Pin Function Pin Function +12V +12V 5V/3.3 5V/3.3 ENAVEE SHFCLK ENABKL ASHFCLK ENAVDD 5V/3.3 Page 16 of 38 PT-3000...
  • Page 17 Technical Reference Manual Page 17 of 38 PT-3000...

  • Page 18: Usb Connector

    –Auto Form Feed (Auto FD) Data 4 –Error Data 5 -Initialize (-Init) Data 6 -Printer Select In ( Select In-) Data 7 18~25 1.3.24 COM1 and COM2 Connector (9-pin D-type Male) Pin Signal Pin Signal Page 18 of 38 PT-3000...

  • Page 19: Ps/2 Keyboard Connector

    1.3.29 Power Connector (8-pin DIN Type) Signal Signal + 5V + 5V + 5V 1.3.30 Power Connector (4-pin DIN Type) Signal + 24V + 12V 1.3.31 Power Connector (3-pin DIN Type) Signal + 24V N.C. Page 19 of 38 PT-3000...

  • Page 20: Hdd / Fdd Power Connector

    DRQ5 SA18 DACK6 SA17 SD10 DRQ6 SA16 DACK3 SD11 DACK7 SA15 DRQ3 SD12 DRQ7 SA14 DACK1 SD13 SA13 DRQ1 SD14 MASTER SA12 REFRESH SD15 SA11 SYSCLK (KEY) SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 BALE Page 20 of 38 PT-3000...

  • Page 21: Memory Configuration

    1.4 Memory Configuration PT-3000 lets you increase the system main memory via onboard SIMM (Single in-Line Memory Module) Sockets. The PT-3000 supports two banks of 16/ 32/ 64/ 128 MB SIMM modules. The system requires SDRAM SIMM modules. The PT-3000 supports the following configuration:...
  • Page 22 IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION SAVE & EXIT SETUP LOAD BIOS DEFAULTS EXIT WITHOUT SAVING LOAD SETUP DEFAULTS Esc: Quit : Select Item F10: Save & Exit Setup (Shift)F2 : Change Color Time, Date, Hard Disk Type… Page 22 of 38 PT-3000...

  • Page 23: Standard Cmos Setup Menu

    Yet each sector much hold 512 bytes. Write Pre-compensation circuitry on the hard disk compensate for the physical difference in sector size by boosting the write current for sectors on inner tracks. This parameter track number where write compensation begins. Page 23 of 38 PT-3000...
  • Page 24 • Base Memory: The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of base memory is 640 KB for PT-3000 system. • Extended Memory: The BIOS determines how much extended memory is present during POST.

  • Page 25: Bios Features Setup Menu

    40 or 80 tracks. Boot Up NumLock Status: The default value is ON; Keypad is number keys after boot- Gate A20 Option: The gate A20 is a device used to address memory above 1 MB. Page 25 of 38 PT-3000...
  • Page 26 C8000 – CBFFF Shadow/ CC000 – CFFFF Shadow/ D0000 – D3FFF Shadow/ D4000 – D7FFF Shadow/ D8000 – DBFFF Shadow/ DC000 – DFFFF Shadow: These categories determine whether optional ROM’s will be copied to RAM. The default values are Disable. Page 26 of 38 PT-3000...

  • Page 27: Chipset Features Setup Menu

    Auto Configuration, selects predetermined optimal values of chipset parameters. When disabled, chipset parameters revert to setup information stored in CMOS. Many fields in this screen are not available when auto configuration is enabled. Page 27 of 38 PT-3000...

  • Page 28: Power Management Setup Menu

    This section will cause the system to turn off vertical and SYNC+Blan horizontal synchronization ports and writes blanks to the video buffer. Blank This option only writes blanks to the video buffer Screen DPMS Initial display power management signaling (default) Page 28 of 38 PT-3000...

  • Page 29: Pnp/Pci Configuration Setup Menu

    • Legacy ISA Devices compliant with the original PC AT bus specification, requiring a specific interrupt (such as IRQ 4 for serial port 1). • PCI/ISA PnP devices complaints with the plug and play standard, whether designed for PCI or ISA bus architecture. Page 29 of 38 PT-3000...

  • Page 30: Integrated Peripherals Setup Menu

    Primary/Secondary Master/Slave Ultra DMA: Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95, OS/2 or a third-party IDE bus master driver). Select Auto to enable BIOS support. Page 30 of 38 PT-3000...

  • Page 31: Change Password

    CMOS. The password can be at most eight (8) characters long. Remember – to enable this feature, you must first select either Setup or System in the BIOS FEATURE SETUP. Page 31 of 38 PT-3000...

  • Page 32: Ap T Er 3 - Driver Details

    • To install the DOC as drive D on a system with a hard disk, just reboot the system, and DOC will install as drive D. • To install the DOC as drive C on a system with a hard disk, see “ Configuring the DOC as the first derive” . Page 32 of 38 PT-3000...

  • Page 33: Configuring The Disk-On-Chip 2000 As The Boot Device

    10 to 100Mbps. It also supports full- duplex operation, making possible 200Mbps of bandwidth at no additional cost. The RTL8139A is highly integrated and requires no logic or external memory. It includes an Page 33 of 38 PT-3000...

  • Page 34: Lcd/ Vga Display Interface

    Graphical User Interfaces (GUIs). Superior performance is also achieved through a direct 32-bit interface to the VESA Local Bus, or PCI Bus. The 65550 offers exceptional performance when combined with the advanced linear acceleration driver technology developed by CHIPS. Page 34 of 38 PT-3000...

  • Page 35: Touch Panel Interface

    And AccuTouch touchscreens deliver drift-free operation—for all 35 million touches of their life. PT-3000 implements serial-type of touch panel system with mouse emulation. The touch panel is connected internally to serial port COM 4, IRQ 5.

  • Page 36: Driver

    • POSDEMO.zip- Elo TouchSystems’ point-of-sale demo program for Windows. This program can be run on a single touchmonitor 3.1.9 Sound Controller This hardware is an optional in PT-3000 system, it depends upon the customer requirement. 3.1.9.1 Key Features • The ESS 1869, sound controller is a single, high-performance, mixed-signal 16-bit stereo VLSI chip that can record, compress, and play back voice, sound, and music.

  • Page 37: Customer Display Interface ("Ole/Pos Driver")

    • Defining architecture for Win-32 BASED POS device access. • Defining a set of POS device interface sufficient to support a range of POS solutions. For PT-3000 system, OLE/POS(OPOS) OCX Drivers are for the following devices: • CD-6220 Line Display • TP-3688 POS Printer After Unzipping the file “...

  • Page 38: Magnetic Swipe Reader (Msr) Interface

    3.1.11 Magnetic Swipe Reader (MSR) Interface PT-3000 has an in-built port for the MSR, supports 1/ 2 / 3 track. The supply for the MSR is taken from the keyboard. Once the MSR is installed to the main system, Run “KBD.EXE”...
