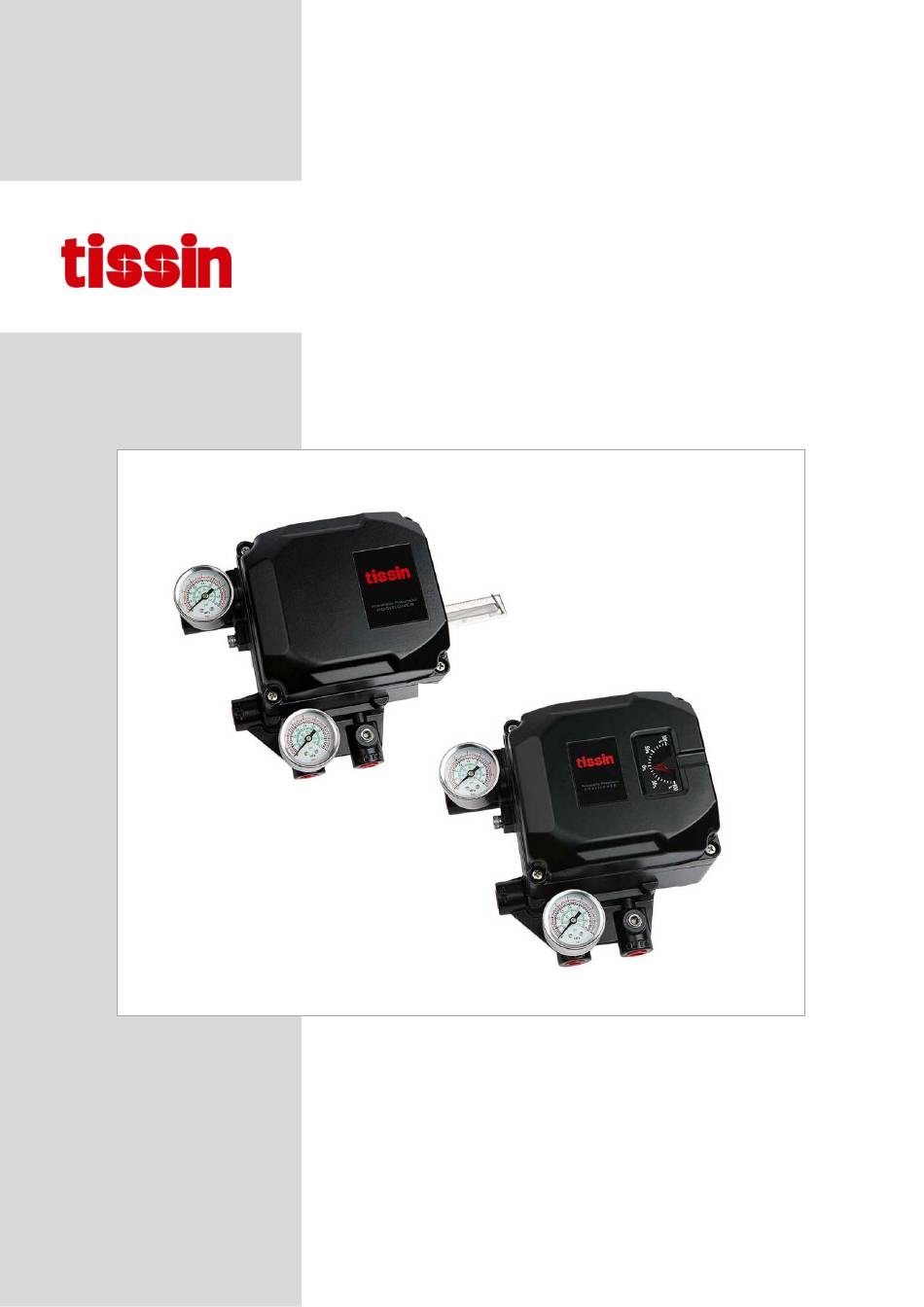

- Page 1 Pneumatic Positioner TS610 Series Instruction Manual Ver. PM-TS610EN_08/2023...
-
Page 2: Table Of Contents
P-P Positioner tissin TS610 Series Table of Contents Introduction -------------------------------------------------------------------------------------- General information for the user--------------------------------------------------------- Limited warranty and disclaimer---------------------------------------------------------- Requirement for safety--------------------------------------------------------------------- Product ---------------------------------------------------------------------------------------------- Function---------------------------------------------------------------------------------------- Features---------------------------------------------------------------------------------------- Options----------------------------------------------------------------------------------------- Applications----------------------------------------------------------------------------------- Label-------------------------------------------------------------------------------------------- Product code---------------------------------------------------------------------------------- Specification----------------------------------------------------------------------------------- Operation Logic------------------------------------------------------------------------------ Exploded view drawing--------------------------------------------------------------------- 2.10 Dimension------------------------------------------------------------------------------------- Installation... -
Page 3: Introduction
Introduction General information for the user This instruction includes installation, operation, maintenance, and parts information for Tissin TS610 Valve Positioner. Keep these instructions in a location which is easily accessible to every user and make these instructions available to every new owner of the device. -
Page 4: Requirement For Safety
P-P Positioner tissin TS610 Series Requirement for safety This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. These safety instructions are intended to prevent hazardous situations and/or equipment damage. For the safety, it is important to follow the instructions in the manual. -
Page 5: Product
Options Position transmitter (4~20mA DC Feedback signal) Limit switch (Mechanical or Proximity type) Applications TS610 series are mounted on Control valves and are used for fluid control in industrial parts. Oil and gas Chemicals Power plant ... -
Page 6: Label
P-P Positioner tissin TS610 Series Label Item Description MODEL No. Indicates model number. SERIAL No. Indicates serial number. OPERATING TEMP. Indicates allowable operating temperature. INGRESS Indicates enclosure IP grade. PROTECTION INPUT SIGNAL Indicates pneumatic input signal range. SUPPLY PRESSURE Indicates supply pressure range. -
Page 7: Product Code
P-P Positioner tissin TS610 Series Product Code Model TS610 Acting type Linear type Rotary type Connection type PT1/4 NPT1/4 G1/4 Lever type (Linear) 10~40mm 40~70mm 70~100mm 100~150mm Lever type (Rotary) M6 x 39L (Fork lever type) NAMUR Type Operating temp. -
Page 8: Specification
P-P Positioner tissin TS610 Series Specification TS610(Single) TS610(Double) Input signal 0.02~0.1MPa Supply pressure 0.14~0.7MPa Stroke 10~150mm (Linear type), 0~90 (Rotary type) Air connection PT1/4, NPT1/4, G1/4 Gauge connection NPT1/8 Enclosure IP66 Ambient temp. -20℃∼70℃ (standard) Linearity ±1.0% F.S ±2.0% F.S Sensitivity ±0.2% F.S... -
Page 9: 2.8 Operation Logic
P-P Positioner tissin TS610 Series 2.8 Operation Logic If (12)Input signal pressure(0.02~0.1MPa) increase, (11)Bellows pushes (10)Armature in the right direction and (6)Flapper moves left around (9)Plate spring. The gap between (6)Flapper and (14)Nozzle lowers the nozzle back pressure and reduces the internal pressure of (15)Pilot valve connected to (14)Nozzle, causing (16)Exhaust valve to move to the right. -
Page 10: Exploded View Drawing
P-P Positioner tissin TS610 Series Exploded-view drawing <TS610L linear type> <TS610R Rotary type>... -
Page 11: 2.10 Dimension
P-P Positioner tissin TS610 Series 2.10 Dimension 2.10.1 TS610L Dimension 2.10.2 TS610R Dimension... -
Page 12: Installation
P-P Positioner tissin TS610 Series Installation Safety WARNING Before installation, make sure that TS610 meets the valve and actuator installation conditions and field requirements. Incorrect installation may result in bad TS610 control characteristics. TS610L linear type When making mounting brackets and fastening levers to the actuator stem, the following two must be observed. - Page 13 P-P Positioner tissin TS610 Series TS610L bracket Installation Please consider the above two cautions, and make a suitable bracket for the actuator by referring to the product dimension drawing and the installation example below. <TS610L bracket installation example> CAUTION If correct installation, Feedback lever should not touch Stopper when the valve is Full ...
-
Page 14: Ts610R Rotary Type
P-P Positioner tissin TS610 Series TS610R Rotary type TS610R Rotary type includes the mounting brackets in the package box. Please install the bracket by referring to the manual. <TS610R bracket installation example> Fork Leve type Mount Fork lever to actuator as shown below. -
Page 15: Air Connection
P-P Positioner tissin TS610 Series Air connection Before the air connection NOTICE Please supply the dehumidified/dust removed clean air The pneumatic ports must be equipped with a regulator to supply a constant pressure of pneumatic pressure. When the input pneumatic signal (0.02 to 0.1 MPa) increases, the pneumatic output of ... -
Page 16: Ts610R Air Connection
P-P Positioner tissin TS610 Series TS610R air connection <TS610R Double type actuator > < TS610R Single type actuator > TS610R RA/DA settings The product is set as RA at factory. If you want to change it to DA, please change the OUT1/OUT2 piping and turn CAM upside down to showing DA on CAM. -
Page 17: Adjustment
P-P Positioner tissin TS610 Series Adjustment CAUTION Zero and Span must be set correctly so product can be operated normally. If the setting is not correct, impact on performance like linearity. So please set Zero and Span position correctly. Zero and Span adjustment ①... -
Page 18: Troubleshooting
P-P Positioner tissin TS610 Series Troubleshooting Common problems Failure The valve is fully open regardless of the input signal The hole of A / M switch of pilot valve is blocked by foreign matter Causes such as dust As shown below, loosen the stopper screw and separate A / M switch Solution and clean the bottom of the hole with 0.2mm drill or wire and re-fitted... -
Page 19: Other Problems And Solutions
P-P Positioner tissin TS610 Series Other problems and Solutions ☞ The positioner does not operate Reference Checklist Causes Corrective action page Check to see if A/M A/M switch is loose If it does not work by moving switch is connected... - Page 20 P-P Positioner tissin TS610 Series Solutions for Control Valve System Tissin Co.,Ltd. 201-1105, No 397, Seokcheon-ro,Ojeong-gu, Bucheon-Si, Gyeonggi-do, Korea 14449 Tel : +82-32-624-4573, Fax : +82-32-624-4574 www.tissin.co.kr...
