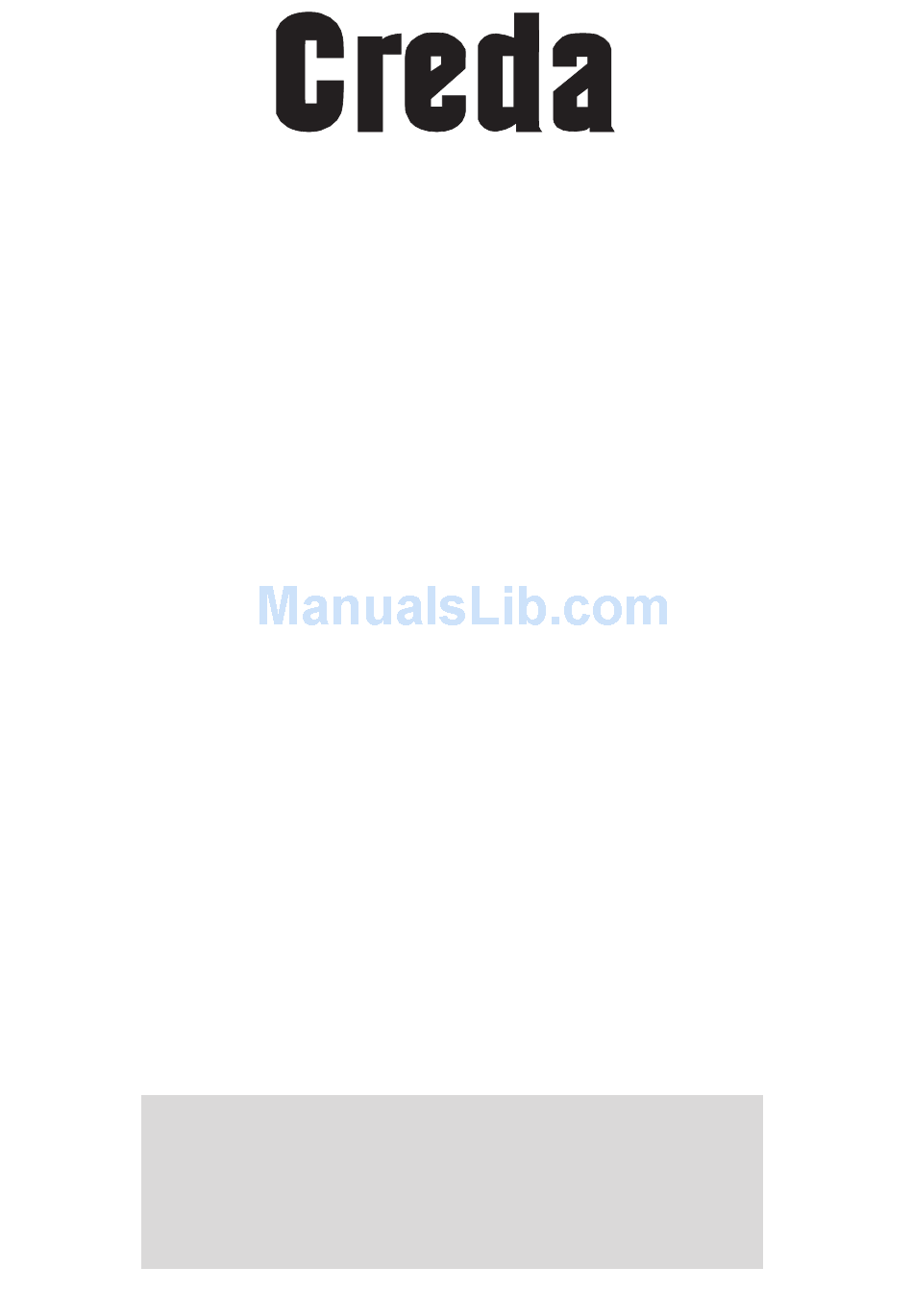

Instructions for Installation and Use
Electric Hob
Model S930E
To the Installer
Before installation fill in the product details on the back cover this book.
The information can be found on the rating plate.
To the User
You must read the instructions prior to installing and using the appliance and
then retain them for future reference.
- 1 -
Advertisement
Table of Contents
Related Manuals for Creda S930E
Summary of Contents for Creda S930E
- Page 1 Instructions for Installation and Use Electric Hob Model S930E To the Installer Before installation fill in the product details on the back cover this book. The information can be found on the rating plate. To the User You must read the instructions prior to installing and using the appliance and then retain them for future reference.
-
Page 2: Table Of Contents
You have just purchased a glass ceramic hob featuring halogen and radiant cooking zones. You will now be able to benefit from the four assets of halogen cooking: • Top performance - The infrared radiation ensures the immediate transmission of heat. The rapid rise in temperature and the poor thermal inertia of the halogen cooking zones allow for guaranteed control flexibility. -
Page 3: Hob Description

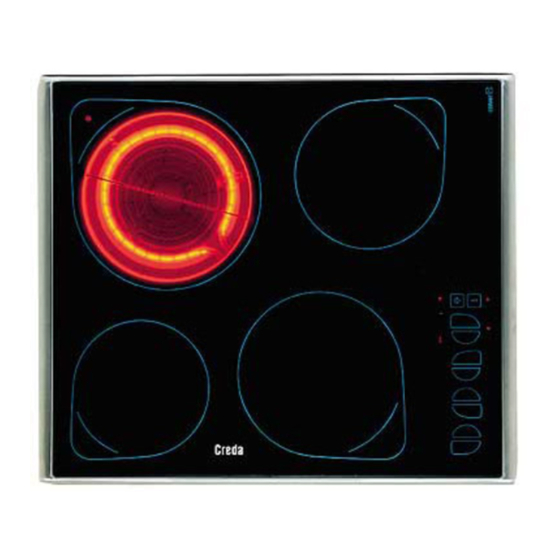

This hob is fitted with: 1. one "Haloring" halogen cooking zone with circular lamps: • on the back left, 2500W - Ø 230 mm, 3 "Quickring" radiant cooking zones: • on the back right, one 1500W zone - Ø 180 mm, •... -
Page 4: The Controls
Place your finger on key to turn the hob on. The power on indicator light to the left of the key lights up. Then enable the control panel: press the control the cooking zones. Each cooking zone is controlled by a set comprising two parts: •... -
Page 5: Using The Cooking Zones
Using the cooking zones The "Haloring" cooking zone comprises a circular halogen lamp for the optimum distribution of the heat radiated. Its properties are similar to those of gas burners, making it ideal for quick frying over a high flame, frying and all other cooking processes requiring a rapid rise in temperature. -
Page 6: Maintenance And Useful Tips
Maintenance and useful tips Turn the hob off by pressing the Should you accidentally press the ON/OFF key and turn the hob back on during cleaning, turn it off immediately. The vitroceramic glass used for the heating surface is smooth and poreless and it is also resistant to thermal shocks and to mechanical shocks under normal conditions of use. -
Page 7: Technical Information For The Fitter
Technical information for the fitter • When you have removed the packing, check whether the appliance is intact. If you have any doubts, contact a qualified professional before using the appliance. • Never leave the packing components (plastic bags, polystyrene foam, nails, etc.) within the reach of children since these are a source of potential danger. - Page 8 Technical information for the fitter REAR SPRING ASSEMBLY SEAL MOUNTING FRONT / REAR • The electrical safety of this appliance can only be guaranteed if the latter is correctly and efficiently earthed, in compliance with regulations on electrical safety. Always ensure that this vital safety measure has been taken. If you have any doubts, call in a qualified technician to check the electrical system thoroughly.
-
Page 9: Electrical Connection
Technical information for the fitter Electrical connection * Application of the simultaneity coefficient in accordance with EN335-2-6 Norm Type Y connection in accordance with EN335-2-6 Norm This appliance conforms with the following European Community Directives: • 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; •... - Page 10 - 10 -...
- Page 11 - 11 -...
-
Page 12: After Sales Service
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in (Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays) Note: Our operators will require the following information: General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB.
