Manual | EN
CU8803-000x
Transmitter box for CP-Link 4
2023-08-21 | Version: 2.0

Advertisement

Table of Contents
loading

Summary of Contents for Beckhoff CU8803-000 Series

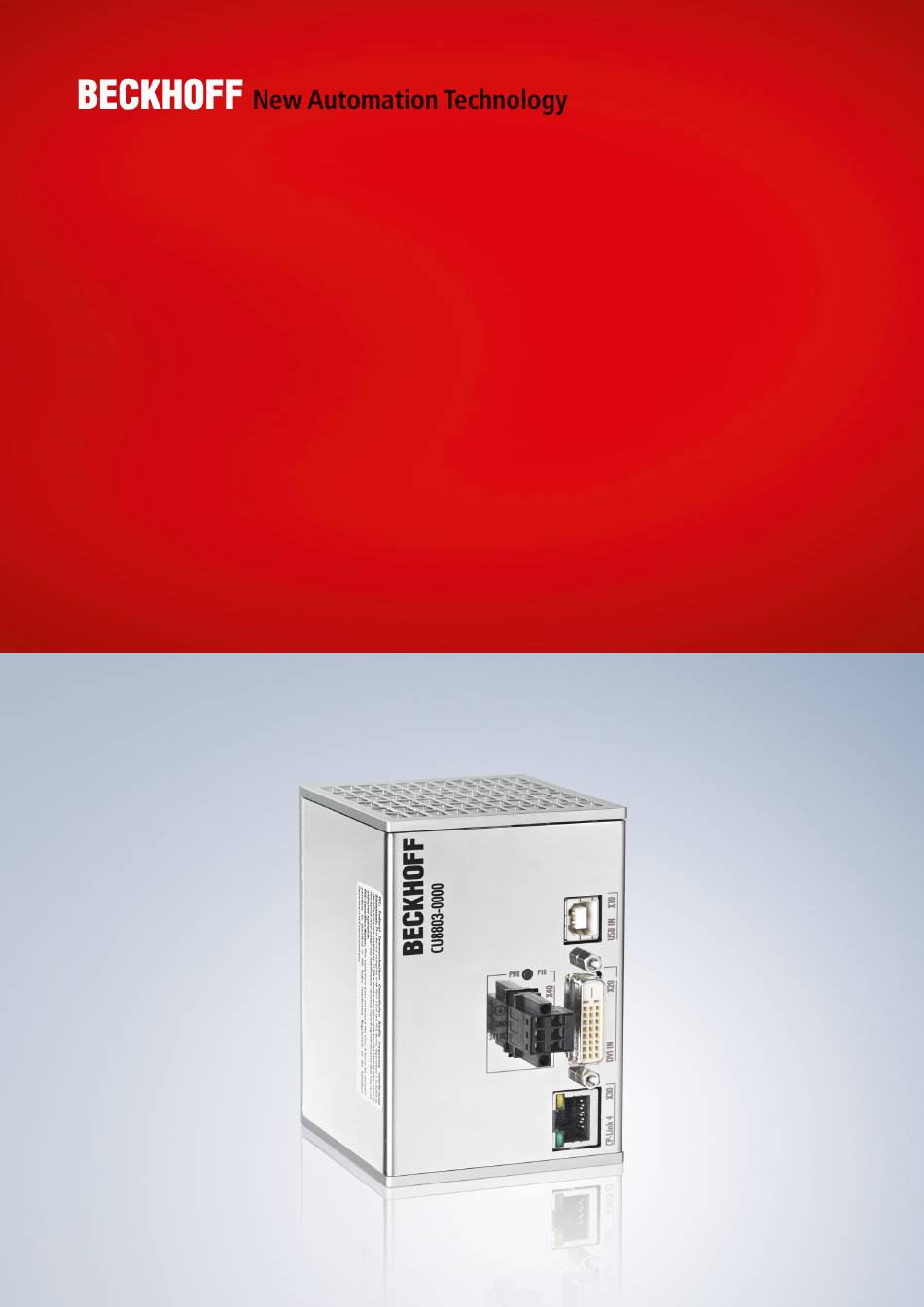

  • Page 1 Manual | EN CU8803-000x Transmitter box for CP-Link 4 2023-08-21 | Version: 2.0...
  • Page 3: Table Of Contents

    Table of contents Table of contents 1 Notes on the documentation........................ 5 2 For your safety ............................ 6 Signal words............................ 6 Intended use .............................  6 Fundamental safety instructions .......................  7 2.3.1 Special requirements (ATEX).....................  7 2.3.2 Special requirements (IECEx)....................  8 Operator's obligation to exercise diligence..................
  • Page 4 Table of contents Version: 2.0 CU8803-000x...
  • Page 5: Notes On The Documentation

    Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
  • Page 6: For Your Safety

    Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. Signal words The signal words used in the documentation are classified below.
  • Page 7: Fundamental Safety Instructions

    For your safety Fundamental safety instructions The following safety instructions must be observed when handling the transmitter box. Application conditions • Do not use the transmitter box under extreme environmental conditions. • Only use the transmitter box in hazardous areas if it is explicitly designed for this purpose. •...
  • Page 8: Special Requirements (Iecex)

    For your safety 2.3.2 Special requirements (IECEx) WARNING Risk of explosion Gases can be ignited in hazardous areas. Read and follow the safety instructions to avoid deflagration or explosion. The device must be installed in a suitable housing with IP54 protection rating according to EN 60079-15, taking into account the environmental conditions in which the device will be used.
  • Page 9: Product Overview

    Power supply connection FCC approval text FCC approvals for the United States of America and Canada Vendor Beckhoff Automation GmbH & Co. KG Model Ending -0000: Device with DVI cable Extension -0001: Device with DisplayPort cable USB input (X10) Connection to the industrial PC...
  • Page 10: Usb Input

    Product overview 3.1.1 USB input The transmitter box has a USB 2.0 input (X10) with socket type B. The transmitter box is connected to the industrial PC via the USB input. The maximum cable length is 1 m. Fig. 2: USB input pin numbering Table 2: USB input pin assignment Assignment Vbus...
  • Page 11: Cp-Link 4 Output

    Product overview 3.1.3 CP-Link 4 output The transmitter box has a CP-Link 4 output (X30). The CP-Link 4 output connects the transmitter box to the control panel, which acts as the operating element. Using a Cat.6A cable, the transmitter box can transmit DVI, USB and the power supply to the control panel (The One Cable Display Link).
  • Page 12: Power Supply

    The plug is included in the scope of delivery. You can obtain a replacement plug from your Beckhoff Sales using the following ordering option: • C9900-P944: Power supply connector for CU8xxx, 3-pin connector with spring-cage connection for the external supply cables The P10 LED is located above the interface.
  • Page 13: Name Plate

    Product overview Name plate The name plate provides information about the transmitter box equipment. The name plate shown here serves only as an example of a device that may be used in a hazardous area. xxxxxxxx Fig. 7: Name plate Table 7: Legend CU8803 name plate Description Manufacturer, including address Model: The last four digits indicate the product variant...
  • Page 14: Commissioning

    4. Check your delivery for completeness by comparing it with your order. 5. Check the contents for visible shipping damage. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 9.1 Service and Support [} 22]). Version: 2.0 CU8803-000x...
  • Page 15: Control Cabinet Installation

    Commissioning Control cabinet installation NOTICE Extreme environmental conditions Extreme environmental conditions can cause damage to the transmitter box. • Avoid extreme environmental conditions. • Protect the transmitter box from moisture and heat. NOTICE Incorrect installation Mounting the device in a way that deviates from the documentation can impair its functionality. •...
  • Page 16: Connect Transmitter Box

    Commissioning Fig. 9: DIN rail installation Connect transmitter box CAUTION Risk of electric shock Dangerous touch voltages can lead to electric shock. To avoid electric shock, observe the following: • Never connect or disconnect the transmitter box cable during a thunderstorm. •...
  • Page 17: Fig. 10 Mounting Strain Relief

    To meet the criteria of ATEX certification II 3G Ex ec IIC T4 Gc and II 3D Ex tc IIIC T135 °C Dc for use in hazardous areas, you need a strain relief for the USB connector. Use the Beckhoff ordering option C9900- Z484 for this.
  • Page 18: Decommissioning

    Decommissioning Decommissioning CAUTION Risk of electric shock Disconnecting the transmitter box during a thunderstorm can lead to electric shock. • Never disconnect the cables from the transmitter box during thunderstorms. NOTICE Hardware damage due to power supply A connected power supply can cause damage to the transmitter box during disassembly. •...
  • Page 19: Fig. 12 Removing Transmitter Box

    Decommissioning ð The lower hook of the transmitter box is unhooked from the DIN rail. 2. Tilt the lower, unhooked part of the transmitter box forward (section B). 3. Unhook the upper hook of the transmitter box from the DIN rail (section C). ð...
  • Page 20: Maintenance

    Maintenance Maintenance Maintenance measures increase the efficiency of the device by ensuring long-term functionality. Cleaning the device contributes to this. Cleaning NOTICE Unsuitable cleaning agents The use of unsuitable cleaning agents can damage the device. • Clean the transmitter box only as specified. It is essential to observe the following aspects when cleaning the transmitter box: •...
  • Page 21: Technical Data

    Technical data Technical data Product designation CU8803-000x Dimensions (W x H x D) 70 x 100 x 80 mm Weight 745 g Supply voltage 20.4-30 V (24 V power supply unit, NEC class 2) max. current consumption with control panel 4.7 A Protection rating IP20 Vibration resistance (sinusoidal vibration)
  • Page 22: Appendix

    33415 Verl Germany Phone: + 49 5246/963-0 email: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. Version: 2.0 CU8803-000x...
  • Page 23: Approvals

    Appendix Approvals The device has the following approvals: • CE • ATEX • IECEx You will find all other applicable approvals on the name plate of your device. FCC approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This device was tested and complies with the limits for a digital device of class A, according part 15 of the FCC regulations.
  • Page 24 List of figures List of figures Fig. 1 Structure............................Fig. 2 USB input pin numbering ......................Fig. 3 DVI input pin numbering....................... Fig. 4 CP-Link 4 pin numbering......................Fig. 5 Voltage socket pin numbering...................... Fig. 6 LED voltage socket ........................Fig.
  • Page 25 List of tables List of tables Table 1 Legend - CU8803 structure......................Table 2 USB input pin assignment......................Table 3 DVI Extended interface pin assignment ..................Table 4 CP-Link 4 pin assignment ......................Table 5 CP-Link 4 LED meanings......................Table 6 Voltage socket pin assignment ....................Table 7 Legend CU8803 name plate ......................
  • Page 27 More Information: www.beckhoff.com/cu8803-000x Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...

This manual is also suitable for:

Cu8803-0000Cu8803-0001
