Salamander Designs FPS1FH User Manual

Xl fixed height, mobile stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

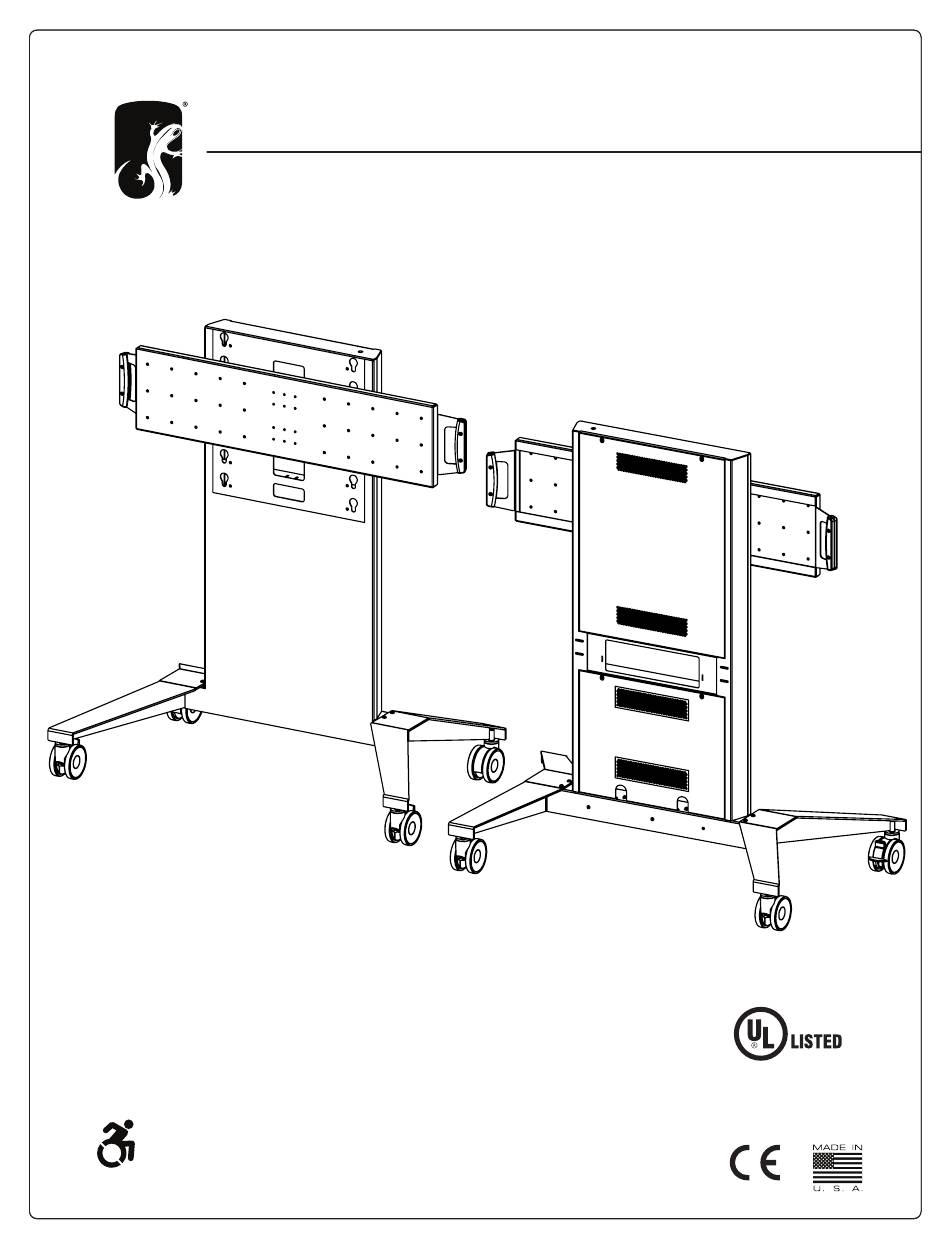

fps1XL/FH/gg
XL Fixed Height, Mobile Stand
CAPACITY
Supports most displays up to 400 lb (181 kg)
VESA Mounting Compliant
Horizontal – 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300
Vertical – 100, 200, 300, 400, 500, 600
ADA
COMPLIANT
SOLUTIONS
Salamander Designs - XL Fixed Height Mobile Display Stands
user manuAl
FPS1XL/FH/GG
E479586
501-692 [7.20]
page 1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPS1FH and is the answer not in the manual?

Questions and answers

Related Manuals for Salamander Designs FPS1FH

Summary of Contents for Salamander Designs FPS1FH

  • Page 1 VESA Mounting Compliant Horizontal – 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300 Vertical – 100, 200, 300, 400, 500, 600 FPS1XL/FH/GG E479586 COMPLIANT SOLUTIONS Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 1 of 21...
  • Page 2 Cable Ties 400-125 Velcro Cinch Strap 1-700 301-735 302-281 300-485 NEXT AS APPLICAT ARE CONSIDERED THE P TO UNAUTHORIZED IND COPYING THEREOF IS P SALAMANDER DESIGNS Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 2 of 21...

  • Page 3: Important Safety Instructions

    Accessories and Spare Parts Please contact your nearest Salamander Designs dealer or www.salamanderdesigns.com/commercial SAVE THESE INSTRUCTIONS Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20]...
  • Page 4 L shaped package inserts are reinforcing the box. Position the Header Wall as shown to allow assembly of Legs. Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 4 of 21...
  • Page 5 Once both Legs are securely fastened to the Stand, use two people to lift the Stand to the upright position. I x 12 After legs have been securely fastened to stand, use two-people lift to stand to upright position. Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 5 of 21...

  • Page 6: Display Installation

    display installation Attach Brackets to Display Check depth of screw threads in display before inserting screws. Inserting a screw that is longer than the hole could result in damage to display. Depth can be confirmed by inserting hex wrench into hole and marking its length then confirming this length is FPS1XL_EL Instruction 4-7-20 Attach Display Brackets sufficient by comparing it to the screw you are using. Attach Brackets to Display USE ALL TEXT AND UPPER IMAGES FROM 501-680 (07.18) PAGE 7 O Install interface mounting brackets (K) onto display as shown using supplied phillips...
  • Page 7 Using four 5/16 - 18 x 3/4 Button Head Screws, attach four Keyhole Shoulder Washers as shown. Using six “H” Button head Screws, attach the Display Beam to the Display Bracket. H x 6 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 7 of 21...
  • Page 8 "Keyhole Slots" and while still supporting the display, attach four "C" screws in the locations shown below. Tighten all six screws to complete the display installation. H x 4 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 8 of 21...
  • Page 9 Attach Gear Using the straps “S” and or thumb screw / nut “O & P” attach your gear. P x 2 O x 2 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 9 of 21...
  • Page 10 LIMITED LIFETIME WARRANTY Salamander Designs Ltd. Limited Lifetime Warranty on Furniture and Seating products are guaranteed to be free from defects in design, material and workmanship, given normal use and proper care in a normal single shift Commercial environment, with the exceptions noted below. Salamander will repair or replace, at its discretion without charge to the original purchaser, any product or part thereof which fails as the result of such defects during the warranty period.
  • Page 11 Cable Ties 400-125 Velcro Cinch Strap -700 301-735 302-281 300-485 NEXT ASS APPLICATIO ARE CONSIDERED THE P TO UNAUTHORIZED IND COPYING THEREOF IS PR SALAMANDER DESIGNS Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 11 of 21...

  • Page 12: Instrucciones Importantes De Seguridad

    Mantenimiento • Limpie con un paño húmedo. Reparaciones • Refiérase a todo tipo de servicio con el personal de servicio calificado. El servicio es requerido cuando el dispositivo ha sufrido daños de cualquier tipo, como haber sido expuesto a la lluvia o a la humedad, que no opera de manera normal , o se ha dejado caer. Accesorios y Repuestos Por favor contacte su agente autorizado de Salamander Designs mas cercano o www.salamandercommercial.com Guarda estas instrucciones FPS1XL/FH/GG E479586 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20]...

  • Page 13: Consignes Importantes De Sécurité

    ATTENTION ! Lorsque vous déplacez l’appareil, utilisez la poignée pour déplacer et positionner l’appareil. Entretien • Nettoyez à l’aide d’un chiffon humide. Réparations • Confiez tout entretien à un personnel qualifié. Un entretien est nécessaire lorsque l’appareil a été endommagé de quelque manière que ce soit, tel que l’appareil a été exposé à la pluie ou à l’humidité, ne fonctionne pas normalement ou a été échappé. Accessoires et pièces de rechange Veuillez contacter votre commerçant de Salamander Designs le plus près ou www.salamandercommercial.com Enregistrer ces instructions FPS1XL/FH/GG E479586 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 13 of 21...

  • Page 14: Wichtige Sicherheitshinweise

    Weise beschädigt wurde, wie z.B. der Aussetzung von Regen oder Feuchtigkeit, sodass es nicht mehr normal betrieben werden kann. Zubehör und Ersatzteile Bitte kontaktiere Salamander Designs 860.761.9500 oder www.salamandercommercial.com Speichern Sie diese Anleitung FPS1XL/FH/GG E479586 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 14 of 21...
  • Page 15 Replace the box top. Remove Upper and Lower Rear Covers and position the Header Wall face up on the end of the closed box where the L shaped package inserts are reinforcing the box. Position Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 15 of 21 the Header Wall as shown to allow assembly of Legs.
  • Page 16 Once both Legs are securely fastened to the Stand, use two people to lift the Stand to the upright position. à deux personnes de soulever le support dans une position verticale. Nachdem die Beine gesichert wurden, hebe es in eine aufrechte Position. I x 12 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 16 of 21...
  • Page 17 INSTALACIÓN DE LA PANTALLA / INSTALLATION DE L’ÉCRAN / Anzeige installieren Ajuste los Soportes de la Pantalla Fixez les supports à l’écran Bringe die Halterungen am Display an Chequee la profundidad de la rosca de los tornillos en la pantalla antes de insertar los tornillos. Insertar un tornillo que es mas largo que el agujero puede resultar en un daño hacia la pantalla. La profundidad puede ser confirmada al insertar una llave hexagonal en el agujero y marcando su profundidad y luego confirmar esta longitud con el tornillo que esta utilizando. Vérifiez la profondeur des filetages dans l’écran avant d’insérer les vis. L’insertion d’une vis qui est plus longue que le trou pourrait endommager l’écran. La profondeur peut être confirmée en insérant une clé hexagonale dans le trou et en marquant sa longueur, puis la confirmation de cette longueur est suffisante en la comparant à la vis que vous utilisez. Prüfe die Tiefe der Schraubengewinde im Display, bevor du die Schrauben einführst. Das Einführen einer längeren Schraube könnte das Display beschädigen.
  • Page 18 Nutze sechs 5/6 - 18 x 3/4 Halbkopfschrauben, befestige den Display Beam an der Displayklemme. H x 6 s p l s p l t t a t t o s i x Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 18 of 21...
  • Page 19 "Keyhole Slots" and while still supporting the display, attach four "C" screws in the locations shown below. Tighten all six screws to complete the display installation. H x 4 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 19 of 21...
  • Page 20 Adjuntar el engranaje Attacher l’équipement Gear anbringen Utilizando las correas “S” y / o el tornillo de mariposa / tuerca “O & P” conecte su equipo. À l’aide des sangles “S” et / ou de la vis / vis “O & P”, fixez votre équipement. Mit den Riemen “S” und / oder Schraube / Mutter “O & P” befestigen Sie Ihre Ausrüstung. O x2 P x 2 Salamander Designs - XL Fixed Height Mobile Display Stands 501-692 [7.20] page 20 of 21...
  • Page 21 Install the Upper and Lower Rear Panels by first placing the alignment pins on the stand Salamander Designs Ltd. Limited Lifetime Warranty on Furniture and Seating products are guaranteed to be free from defects in design, material through the alignment holes on the Upper and Lower Rear Panels and then attach the and workmanship, given normal use and proper care in a normal single shift Commercial environment, with the exceptions noted below.
