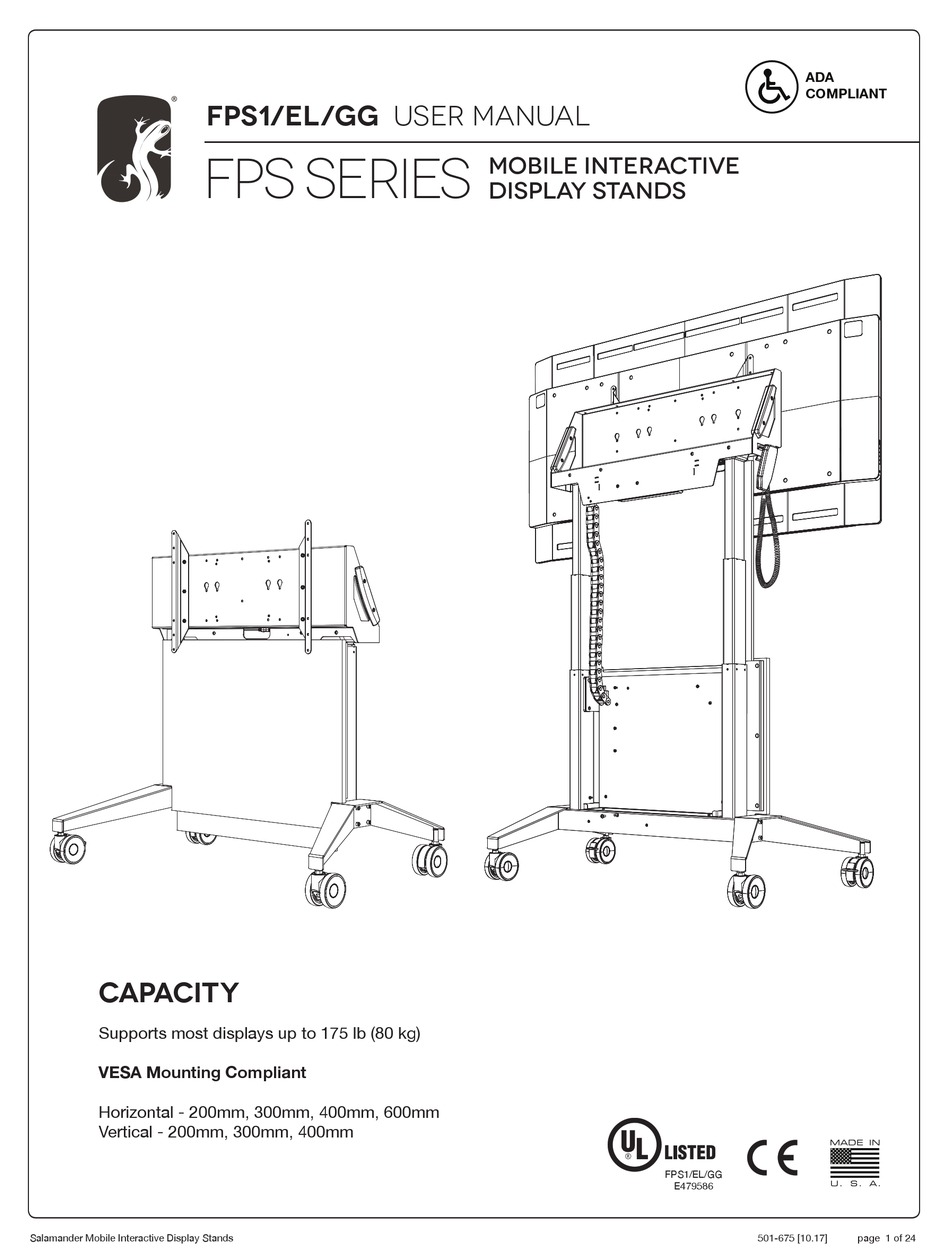

fps1/el/gg user manuAl
FPS SERIES
BLACK
CAPACITY
Supports most displays up to 175 lb (80 kg)
VESA Mounting Compliant
Horizontal - 200mm, 300mm, 400mm, 600mm
Vertical - 200mm, 300mm, 400mm
Salamander Mobile Interactive Display Stands
mobile interactive
display stands
COLOR
ADA
COMPLIANT
WHITE
FPS1/EL/GG
E479586
501-675 [10.17]
page 1 of 24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Salamander Designs FPS Series
Summary of Contents for Salamander Designs FPS Series
- Page 1 COMPLIANT fps1/el/gg user manuAl FPS SERIES mobile interactive display stands COLOR WHITE BLACK CAPACITY Supports most displays up to 175 lb (80 kg) VESA Mounting Compliant Horizontal - 200mm, 300mm, 400mm, 600mm Vertical - 200mm, 300mm, 400mm FPS1/EL/GG E479586 Salamander Mobile Interactive Display Stands 501-675 [10.17]...
- Page 2 PARTS PART NUMBER DESCRIPTION PHK-740 (bag) Display Mounting Fastener Set - Metric 301-695 M8 x 16mm Pan Phillips Screw 301-710 M6 x 20mm Pan Phillips Screw 300-518 1/4-20 x 3/8” Button Head Screw - for Display Bracket 301-010 5/16-18 x 3/4” Button Head Screw - for Leg Attachment 400-010 Cable ties 400-125...
-
Page 3: Important Safety Instructions
warnings [English] IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS FURNISHING When using an electrical furnishing, basic precautions should always be followed, including the following: WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons: DANGER –... - Page 4 • There are no user-serviceable components within this device. Removal of the cover from this device may present a shock hazard, and void the warranty. ***** SAVE THESE INSTRUCTIONS ***** Accessories and Spare Parts Please contact your nearest Salamander Designs dealer or www.salamanderdesigns.com/commercial Salamander Mobile Interactive Display Stands 501-675 [10.17] page 4 of 24...
- Page 5 ASSEMBLY UNBOX & INSTALL LEGS Fold box sides down flat Prop base of unit up on cardboard supports Salamander Mobile Interactive Display Stands 501-675 [10.17] page 5 of 24...
- Page 6 INSTALL LEGS Install legs by having one person hold leg and other person loosely install “D” (8 quantity) screws. Please note that the leg has a long side and short side - the long side with caster brake faces the front of the unit. D x 8 After legs have been securely fastened to stand, two-people lift stand to upright position.
-
Page 7: Display Installation
display installation Attach Brackets to Display Check depth of screw threads in display before inserting screws. Inserting a screw that is longer than the hole could result in damage to display. Depth can be confirmed by inserting hex wrench into hole and marking its length then confirming this length is sufficient by comparing it to the screw you are using. - Page 8 Attach Display to Stand Loosely install ONE (1) “C” screw to the center of each display bracket. This will act as an alignment screw for the next step. 1/8” Gap Two people are needed to install the display on the stand. Position alignment screw into the “key hole”...
-
Page 9: Connect Power
Immediately use (4) “C” screws to affix the mounting brackets to the cart-side mechanism as shown. Tighten all 6 screws firmly. Connect Power Control box is located behind header. Insert power cord into control box as shown in illustration below: Salamander Mobile Interactive Display Stands 501-675 [10.17] page 9 of 24... -
Page 10: Operation: Remote Control
Route Cables from Display to Stand Manage cables carefully. Use cable ties to keep wires away from pinch points. • Route cables between the back of display and the hole on the front of stand. • Manage cables through cable chain by pushing cable through finger keeper on inner side of chain direction shown in arrows.
